纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (3.440[01]) - LIFT CYLINDERS PIPING - VERSION (01-02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
363 次

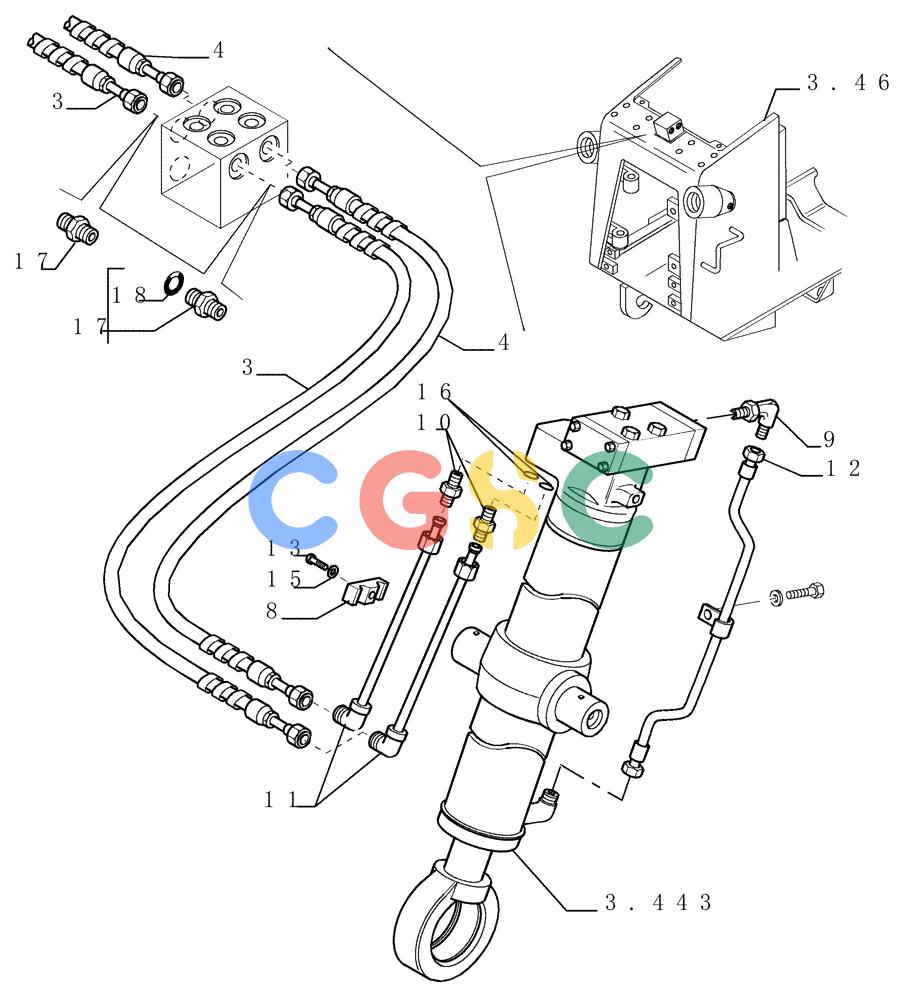

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | 76079139 | [2] | FLEXIBLE HOSE | LEC |
| 4. | 76079138 | [2] | FLEXIBLE HOSE | LEC |
| 8. | 76076606 | [2] | PAD | LEC |
| 9. | 76068053 | [2] | HYD CONNECTOR | LEC |
| 10. | 76066196 | [4] | HYD CONNECTOR | LEC |
| 11. | 76076589 | [4] | RIGID TUBE,12 mm ID, 16 mm OD, 335 mm Length | LEC |
| 12. | 76076597 | [1] | RIGID TUBE | LEC- LEFT |
| 12. | 76076598 | [1] | RIGID TUBE | LEC- RIGHT |
| 13. | 11106631 | [2] | SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 86624978 |
| 15. | 12626231 | [2] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 16. | 70930357 | [4] | O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro | LEC Superseded by part number: 9992069 |
| 17. | 78100321 | [4] | HYD CONNECTOR | TOR- 16/M22X1,5 - ASSY. Superseded by part number: 86579680 |
| 18. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
