纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (3.440[01A]) - LIFT CYLINDERS PIPING - VERSION (04) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
414 次

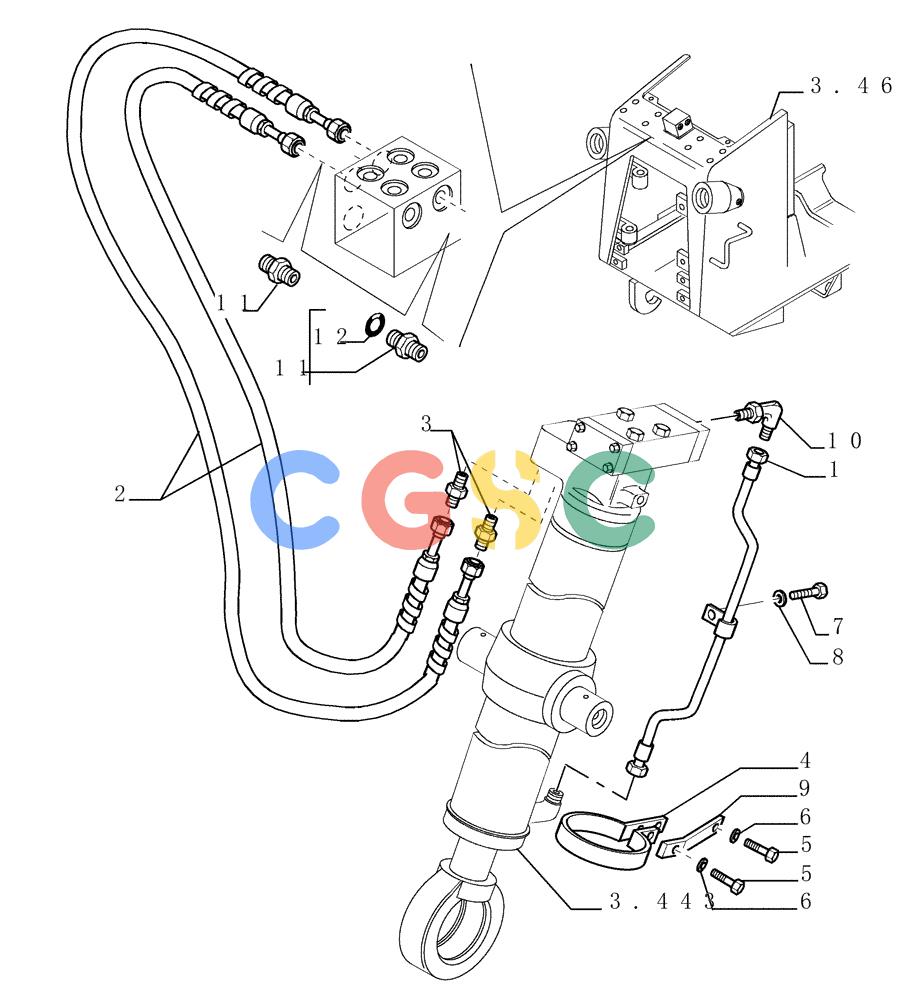

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76093464 | [1] | RIGID TUBE | LECCYLINDER RIGHT Superseded by part number: 76066224 |
| 1. | 76093465 | [1] | RIGID TUBE | LECCYLINDER LEFT Superseded by part number: 76066223 |
| 2. | 76079137 | [4] | FLEXIBLE HOSE | LEC |
| 3. | 76066196 | [4] | HYD CONNECTOR | LEC |
| 4. | 76069717 | [2] | HOSE CLIP | LEC |
| 5. | 11106431 | [6] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 9515003 |
| 6. | 12626231 | [6] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 7. | 11103031 | [2] | BOLT,Hex, M10 x 18, 10.9, Full Thd | LEC |
| 8. | 14496631 | [4] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 9. | 76069715 | [2] | TIE-ROD | TOR |
| 10. | 76068053 | [2] | HYD CONNECTOR | LEC90° |
| 11. | 78100321 | [4] | HYD CONNECTOR | TOR- 16/M22X1,5 - ASSY. Superseded by part number: 86579680 |
| 12. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
