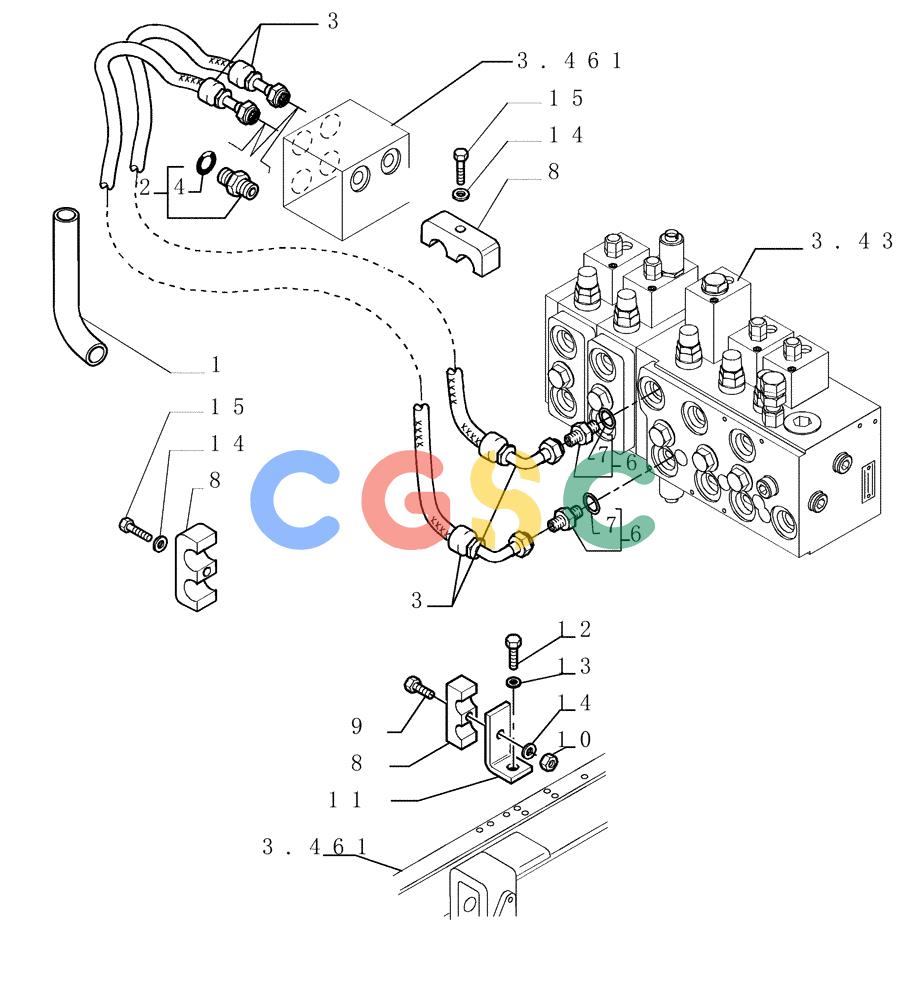

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (3.440[02]) - LIFT CYLINDERS PIPING - VERSION (01-02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
522 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76071322 | [1] | HOSE PROTECTION | LEC |
| 2. | 78100321 | [2] | HYD CONNECTOR | TOR16-M22X1,5 - ASSY. Superseded by part number: 86579680 |
| 3. | 76089127 | [2] | FLEXIBLE HOSE | LEC |
| 4. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
| 6. | 79094128 | [2] | HYD CONNECTOR | LECASSY. Superseded by part number: 154221912 |
| 7. | 70923843 | [1] | O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro | LEC1,78X18,77 Superseded by part number: 66297 |
| 8. | 79076680 | [5] | CLAMP | LEC |
| 9. | 11107631 | [2] | SCREW,Hex, M10 x 70mm, Cl 10.9 | LEC Superseded by part number: 828-10070 |
| 10. | 11701721 | [2] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 11. | 76066330 | [2] | BRACKET | LEC |
| 12. | 11112431 | [2] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 13. | 14496731 | [2] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 14. | 14496631 | [5] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 15. | 16040831 | [3] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43248 |
