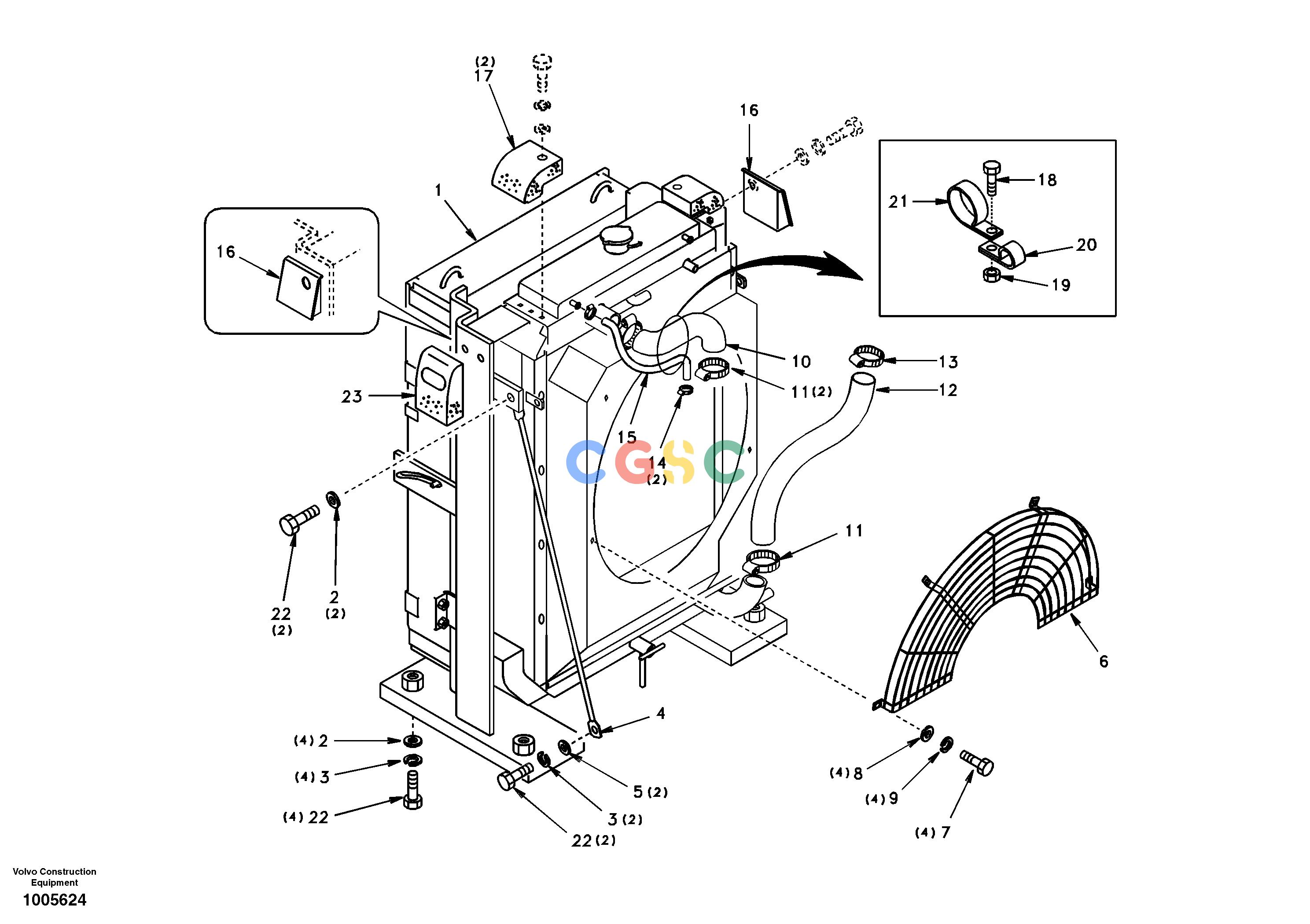

沃尔沃零件查询EC210 Cooling systemNoneDD04H001-DD04H002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
124 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1115-03762
|
[1] |
Radiator
|
Standard
|
| |
SA1115-03771
|
|
Radiator
|
Tropical
|
| 2. |
VOE992042
|
[6] |
Plain washer
|
|
| 3. |
SA9213-12000
|
[6] |
Spring washer
|
|
| 4. |
SA1115-00390
|
[2] |
Stay
|
|
| 5. |
SA2015-00370
|
[2] |
Washer
|
|
| 6. |
SA1115-03880
|
[1] |
Guard
|
|
| 7. |
SA9011-10804
|
[4] |
Bolt
|
|
| 8. |
VOE993835
|
[4] |
Plain washer
|
|
| 9. |
SA9213-08000
|
[4] |
Spring washer
|
|
| 10. |
SA1115-00140
|
[1] |
Inlet hose
|
|
| 11. |
VOE11109241
|
[3] |
Clamp
|
|
| 12. |
SA1115-00150
|
[1] |
Hose
|
|
| 13. |
VOE14883762
|
[1] |
Hose clamp
|
|
| 14. |
VOE943470
|
[2] |
Hose clamp
|
|
| 15. |
SA9962-00910
|
[1] |
Cooling hose
|
|
| 16. |
SA1115-04031
|
[2] |
Plate
|
SER NO 3001-3969
|
| |
SA1115-04031
|
[1] |
Plate
|
SER NO 3970-
|
| 17. |
SA1115-04020
|
[0002] |
Seal
|
|
| 18. |
SA9041-10804
|
[1] |
Bolt
|
|
| 19. |
SA9131-10800
|
[1] |
Lock nut
|
|
| 20. |
SA9315-01602
|
[1] |
Insulating clip
|
|
| 21. |
SA9315-15501
|
[1] |
Clip
|
|
| 22. |
VOE993029
|
[8] |
Hexagon screw
|
|
| 23. |
VOE14509163
|
[1] |
Sponge
|
SER NO 3970-
|
