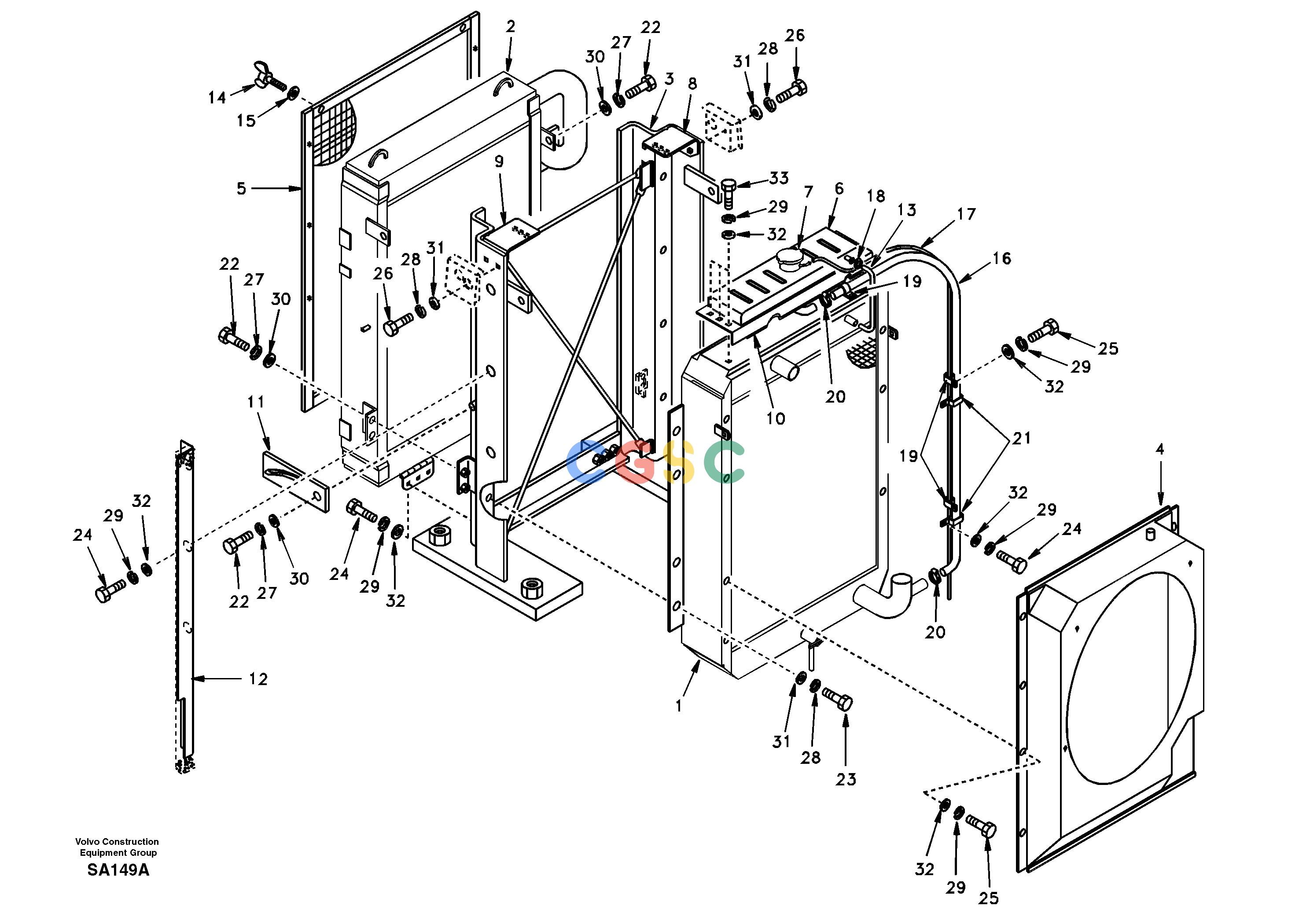

沃尔沃零件查询EC210 RadiatorNoneDD04H001-DD04H002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
240 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1115-03762
|
[1] |
Radiator
|
Standard
|
| |
SA1115-03771
|
|
Radiator
|
Tropical
|
| |
SA1115-00021
|
[1] |
Radiator
|
|
| 2. |
SA1115-00031
|
[1] |
Oil cooler
|
SER NO 3001-3147
|
| |
SA1115-00031
|
[1] |
Oil cooler
|
SER NO 3148-
|
| 3. |
SA1115-01010
|
[1] |
Guard
|
|
| |
SA1115-00041
|
|
Guard
|
|
| 4. |
SA1115-03872
|
[1] |
Fan Shroud
|
|
| |
SA1115-04010
|
|
Fan Shroud
|
|
| 5. |
SA1115-00110
|
[1] |
Net
|
|
| 6. |
SA1115-00373
|
[1] |
Tank
|
|
| 7. |
SA1015-00380
|
[1] |
Radiator cap
|
|
| 8. |
SA1115-00420
|
[1] |
Bracket
|
|
| 9. |
SA1115-00430
|
[1] |
Bracket
|
|
| 10. |
SA1115-00410
|
[1] |
Pad
|
|
| 11. |
SA1115-00160
|
[2] |
Guide
|
|
| 12. |
SA1115-00440
|
[1] |
Sponge
|
SER NO 3001-3147
|
| |
SA1115-00441
|
[1] |
Sponge
|
SER NO 3148-
|
| 13. |
SA1115-00620
|
[1] |
Plastic hose
|
|
| 14. |
VOE14880559
|
[2] |
Wing screw
|
|
| 15. |
SA9213-06000
|
[2] |
Spring washer
|
|
| 16. |
SA9962-02626
|
[1] |
Cooling hose
|
SER NO 3001-3147
|
| |
SA9962-02625
|
[1] |
Cooling hose
|
SER NO 3148-
|
| 17. |
SA9962-00832
|
[1] |
Cooling hose
|
|
| 18. |
VOE943470
|
[3] |
Hose clamp
|
|
| 19. |
VOE14529345
|
[3] |
Clip
|
|
| 20. |
SA9312-10175
|
[2] |
Hose clamp
|
|
| 21. |
SA9315-03601
|
[3] |
Clip
|
|
| 22. |
VOE993029
|
[8] |
Hexagon screw
|
|
| 23. |
VOE983252
|
[8] |
Hexagon screw
|
|
| 24. |
SA9011-10804
|
[16] |
Bolt
|
SER NO 3001-3147
|
| |
SA9011-10804
|
[10] |
Bolt
|
SER NO 3148-
|
| 25. |
SA9011-10803
|
[11] |
Bolt
|
|
| 26. |
VOE993025
|
[4] |
Hexagon screw
|
|
| 27. |
SA9213-12000
|
[8] |
Spring washer
|
|
| 28. |
SA9213-10000
|
[12] |
Spring washer
|
|
| 29. |
SA9213-08000
|
[27] |
Spring washer
|
|
| 30. |
VOE992042
|
[8] |
Plain washer
|
|
| 31. |
VOE992040
|
[12] |
Plain washer
|
|
| 32. |
VOE993835
|
[27] |
Plain washer
|
|
| 33. |
VOE993023
|
[6] |
Hexagon screw
|
SER NO 3148-
|
