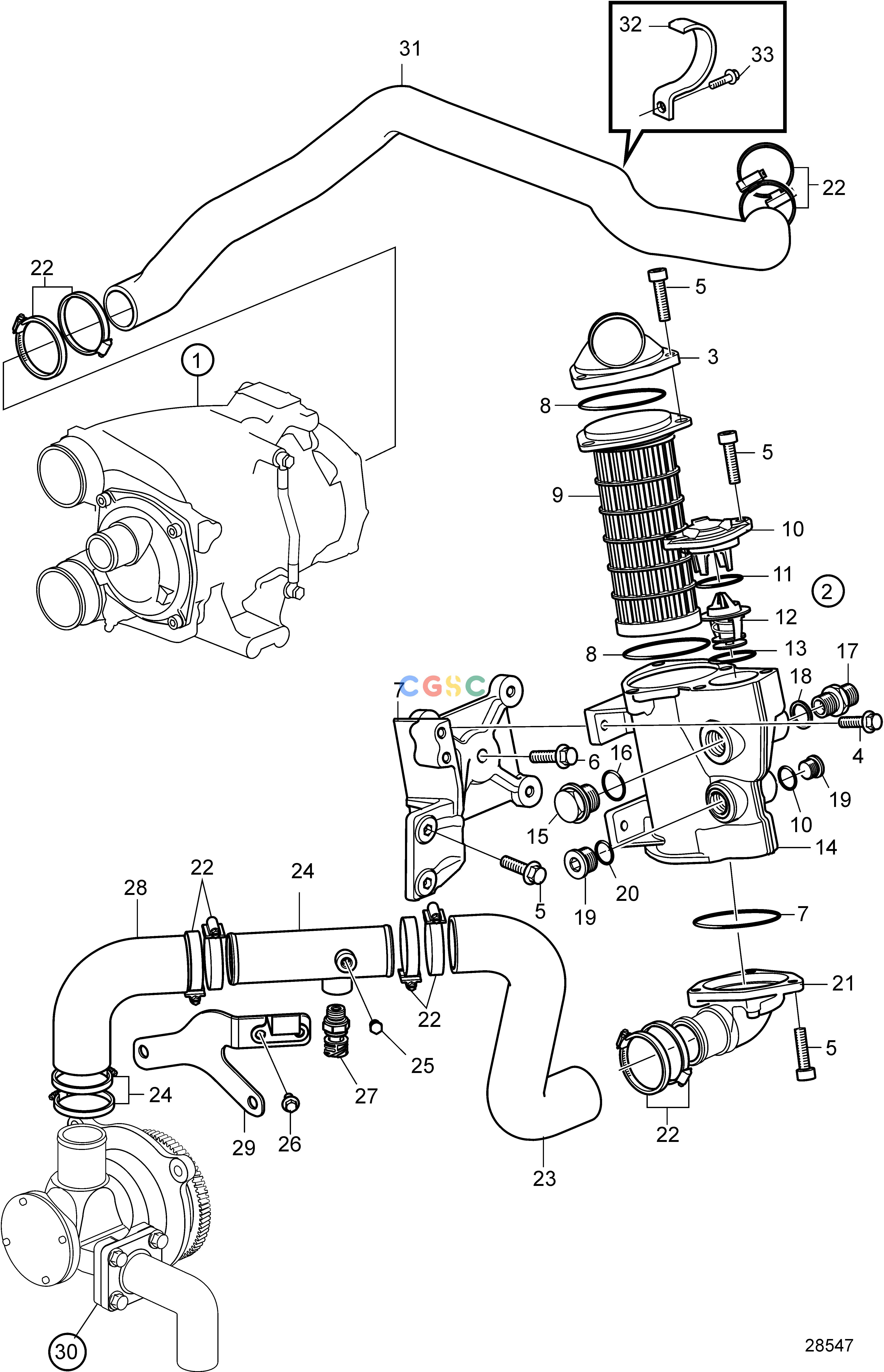

沃尔沃零件查询D11B3-A MP; D11B4-A MPCooling SystemOil Cooler for IPS UnitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1009 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
21230918
|
[1] |
Oil cooler
|
|
| 3. |
21230932
|
[1] |
Cover
|
|
| 4. |
984736
|
[4] |
Flange screw
|
|
| 5. |
3838337
|
[8] |
Screw
|
|
| 6. |
984756
|
[1] |
Flange screw
|
|
| 7. |
21269499
|
[1] |
Bracket
|
|
| 8. |
3581070
|
[2] |
O-ring
|
|
| 9. |
3817249
|
[1] |
Insert
|
|
| 10. |
888622
|
[1] |
Cover
|
|
| 11. |
3586514
|
[1] |
O-ring
|
|
| 12. |
21244994
|
[1] |
Thermostat
|
|
| 13. |
3583830
|
[1] |
O-ring
|
|
| 14. |
|
|
|
|
| 15. |
3817245
|
[1] |
Plug
|
|
| 16. |
3817240
|
[1] |
Gasket
|
|
| 17. |
992035
|
[1] |
Nipple
|
|
| 18. |
3817240
|
[1] |
Gasket
|
|
| 19. |
968610
|
[2] |
Plug
|
|
| 20. |
968559
|
[2] |
O-ring
|
|
| 21. |
3817251
|
[1] |
End cover
|
|
| 22. |
961672
|
[12] |
Hose clamp
|
|
| 23. |
22529858
|
[1] |
Hose
|
|
| 24. |
22505869
|
[1] |
Coolant pipe
|
Replaced by 22919148
|
| 24. |
22919148
|
[1] |
Coolant pipe
|
|
| 25. |
981749
|
[1] |
Plug
|
|
| 26. |
984733
|
[2] |
Flange screw
|
|
| 27. |
22052384
|
[1] |
Pressure sensor
|
|
| 28. |
22529856
|
[1] |
Hose
|
|
| 29. |
22505862
|
[1] |
Bracket
|
Replaced by 22505862
|
| 29. |
22895150
|
[1] |
Bracket
|
|
| 30. |
|
|
|
|
| 31. |
22129145
|
[1] |
Hose
|
|
| 32. |
948560
|
[1] |
Clamp
|
|
| 33. |
984725
|
[1] |
Flange screw
|
|
