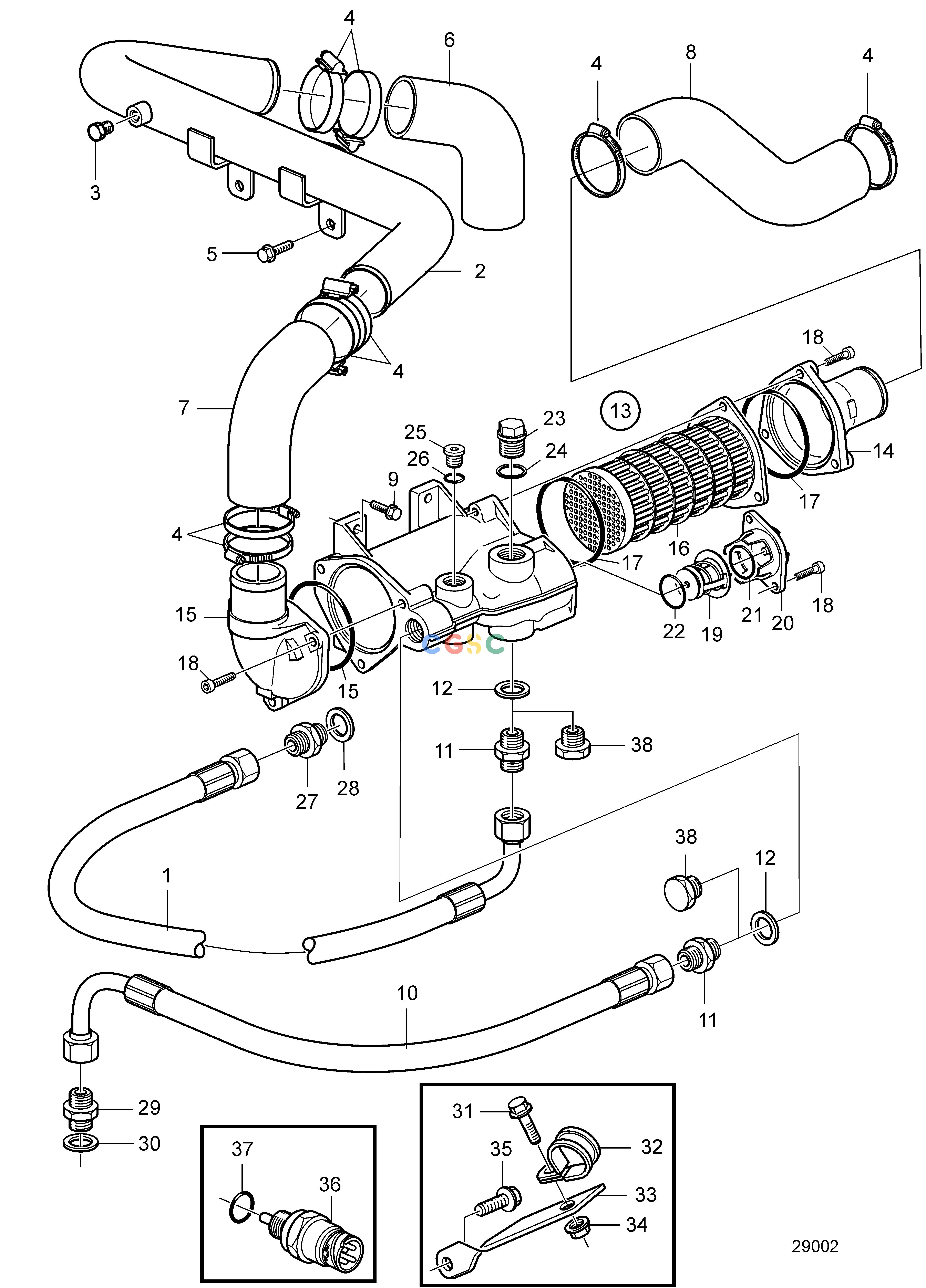

沃尔沃零件查询D11B3-A MP; D11B4-A MPCooling SystemOil Cooler for ZF305-3A-E, ZF325iV-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
788 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3588029
|
[1] |
Hose
|
L=950mm
|
| 2. |
22528335
|
[1] |
Pipe
|
Replaced by 22915985
|
| 2. |
22915985
|
[1] |
Pipe
|
|
| 3. |
981749
|
[1] |
Plug
|
|
| 4. |
961672
|
[10] |
Hose clamp
|
|
| 5. |
984734
|
[2] |
Flange screw
|
|
| 6. |
22551655
|
[1] |
Hose
|
|
| 7. |
22529856
|
[1] |
Hose
|
|
| 8. |
21622430
|
[1] |
Hose
|
|
| 9. |
984736
|
[4] |
Flange screw
|
|
| 10. |
3588801
|
[1] |
Hose
|
L=570mm
|
| 11. |
984670
|
[2] |
Nipple
|
|
| 12. |
977937
|
[2] |
Gasket
|
|
| 13. |
3808061
|
[1] |
Oil cooler
|
|
| 14. |
3817251
|
[1] |
End cover
|
|
| 15. |
3817250
|
[1] |
Cover
|
|
| 16. |
3817249
|
[1] |
Insert
|
|
| 17. |
3581070
|
[3] |
O-ring
|
|
| 18. |
3838337
|
[8] |
Screw
|
|
| 19. |
3817248
|
[1] |
Thermostat
|
|
| 20. |
888622
|
[1] |
Cover
|
|
| 21. |
3583830
|
[1] |
O-ring
|
|
| 22. |
3586514
|
[1] |
O-ring
|
|
| 23. |
3817245
|
[1] |
Plug
|
|
| 24. |
3817240
|
[1] |
Gasket
|
|
| 25. |
968610
|
[1] |
Plug
|
|
| 26. |
968559
|
[1] |
O-ring
|
|
| 27. |
990883
|
[1] |
Nipple
|
|
| 28. |
943908
|
[1] |
Gasket
|
|
| 29. |
943986
|
[1] |
Nipple
|
|
| 30. |
18677
|
[1] |
Gasket
|
|
| 31. |
984725
|
[2] |
Flange screw
|
|
| 32. |
952632
|
[3] |
Clamp
|
|
| 33. |
354842
|
[1] |
Bracket
|
|
| 34. |
990949
|
[2] |
Flange lock nut
|
|
| 35. |
984752
|
[1] |
Flange screw
|
|
| 36. |
874313
|
[1] |
Sensor
|
|
| 37. |
976931
|
[1] |
Gasket
|
|
| 38. |
914394
|
[2] |
Plug
|
|
