沃尔沃零件查询EC210 Speed controlNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
961 次

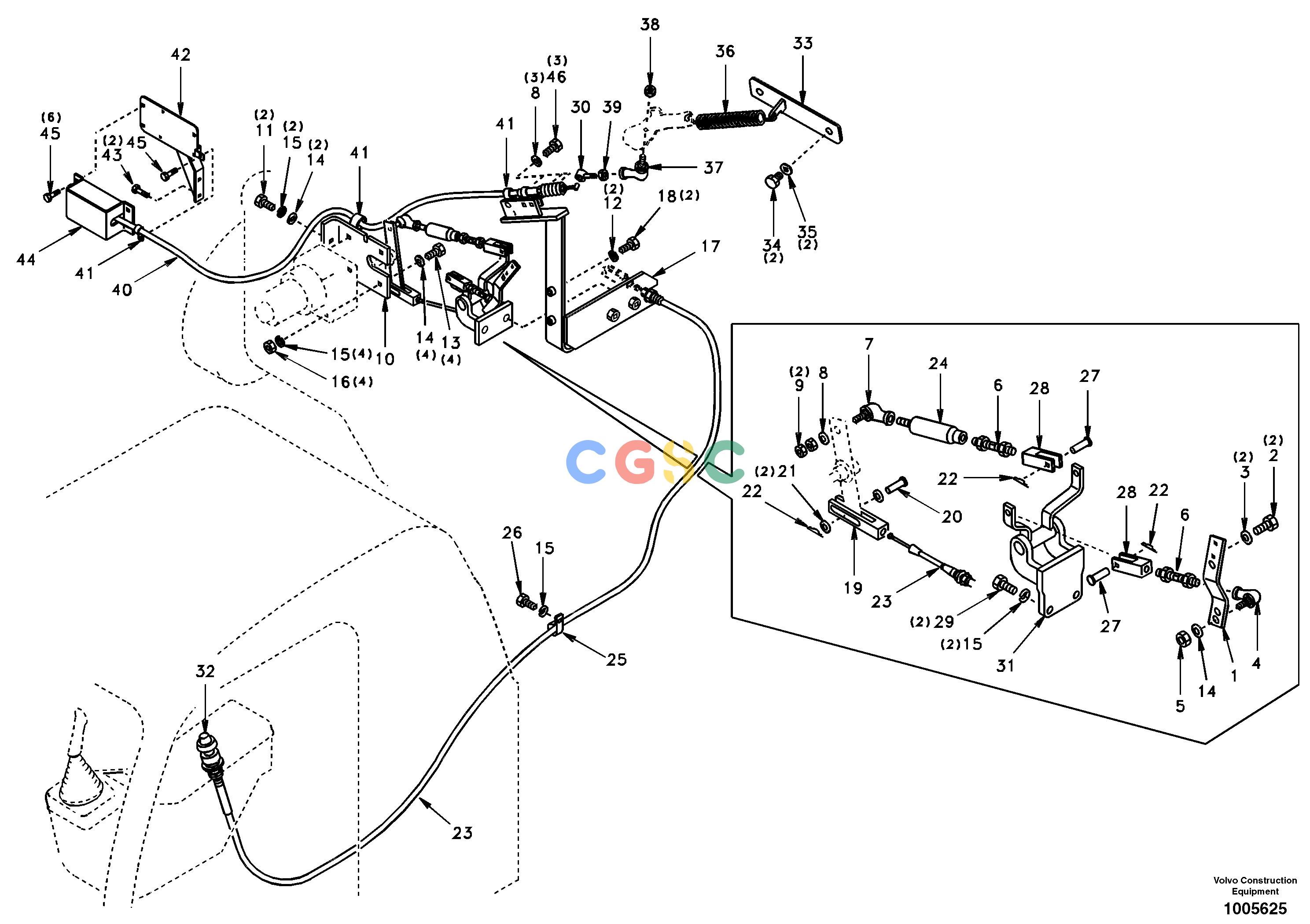

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1118-00670
|
[1] |
Lever
|
|
| 2. |
SA9011-10603
|
[2] |
Bolt
|
|
| 3. |
VOE955892
|
[2] |
Plain washer
|
|
| 4. |
SA9646-31100
|
[1] |
Rod End
|
|
| 5. |
VOE993197
|
[1] |
Hexagon nut
|
|
| 6. |
SA1118-00231
|
[2] |
Bar
|
|
| 7. |
SA9646-31080
|
[1] |
Rod End
|
|
| 8. |
VOE993835
|
[2] |
Plain washer
|
SER NO 3001-4256
|
| |
VOE993835
|
[4] |
Plain washer
|
SER NO 4257-
|
| 9. |
SA9111-10800
|
[2] |
Nut
|
|
| 10. |
SA1118-01660
|
[1] |
Bracket
|
|
| 11. |
VOE993025
|
[2] |
Hexagon screw
|
|
| 12. |
SA9213-12000
|
[2] |
Spring washer
|
|
| 13. |
VOE991635
|
[4] |
Hexagon screw
|
|
| 14. |
VOE992040
|
[5] |
Plain washer
|
SER NO 3001-4089
|
| |
VOE992040
|
[7] |
Plain washer
|
SER NO 4090-
|
| 15. |
SA9213-10000
|
[9] |
Spring washer
|
|
| 16. |
SA9111-11000
|
[4] |
Nut
|
|
| 17. |
SA1118-01710
|
[1] |
Bracket
|
|
| 18. |
SA9011-11206
|
[2] |
Bolt
|
|
| 19. |
SA1118-00181
|
[1] |
Yoke
|
|
| 20. |
VOE13964834
|
[1] |
Clevis pin
|
|
| 21. |
SA1118-01630
|
[2] |
Plain washer
|
|
| 22. |
SA9326-06000
|
[3] |
Pin
|
|
| 23. |
SA1018-00680
|
[1] |
Cable
|
|
| 24. |
SA1118-00280
|
[1] |
Vibration damper
|
|
| 25. |
VOE978869
|
[1] |
Clamp
|
|
| 26. |
VOE992504
|
[1] |
Hexagon screw
|
|
| 27. |
SA9321-20611
|
[2] |
Clevis Pin
|
|
| 28. |
SA1118-00400
|
[2] |
Yoke
|
|
| 29. |
VOE983252
|
[2] |
Hexagon screw
|
|
| 30. |
SA1118-01590
|
[1] |
Hook
|
|
| 31. |
SA1118-00550
|
[1] |
Bracket
|
|
| 32. |
SA1118-00650
|
[1] |
Grommet
|
|
| 33. |
SA1118-01440
|
[1] |
Bracket
|
|
| 34. |
SA1118-01530
|
[2] |
Bolt
|
|
| 35. |
SA9211-16000
|
[2] |
Washer
|
|
| 36. |
SA1118-01620
|
[1] |
Spring
|
SER NO 3001-3505
|
| |
VOE14504562
|
[1] |
Spring
|
SER NO 3506-
|
| 37. |
SA9646-21060
|
[1] |
Rod End
|
|
| 38. |
SA9131-10600
|
[1] |
Lock nut
|
|
| 39. |
SA9111-10600
|
[1] |
Nut
|
|
| 40. |
SA1122-03770
|
[1] |
Wire
|
|
| 41. |
SA9315-00801
|
[3] |
Insulating clip
|
|
| 42. |
SA1118-01560
|
[1] |
Bracket
|
|
| 43. |
VOE946441
|
[2] |
Flange screw
|
|
| 44. |
SA1118-01580
|
[1] |
Cover
|
|
| 45. |
SA9041-10804
|
[7] |
Bolt
|
|
| 46. |
VOE13965175
|
[2] |
Screw
|
SER NO 3001-4256
|
| |
VOE13965175
|
[3] |
Screw
|
SER NO 4257-
|
