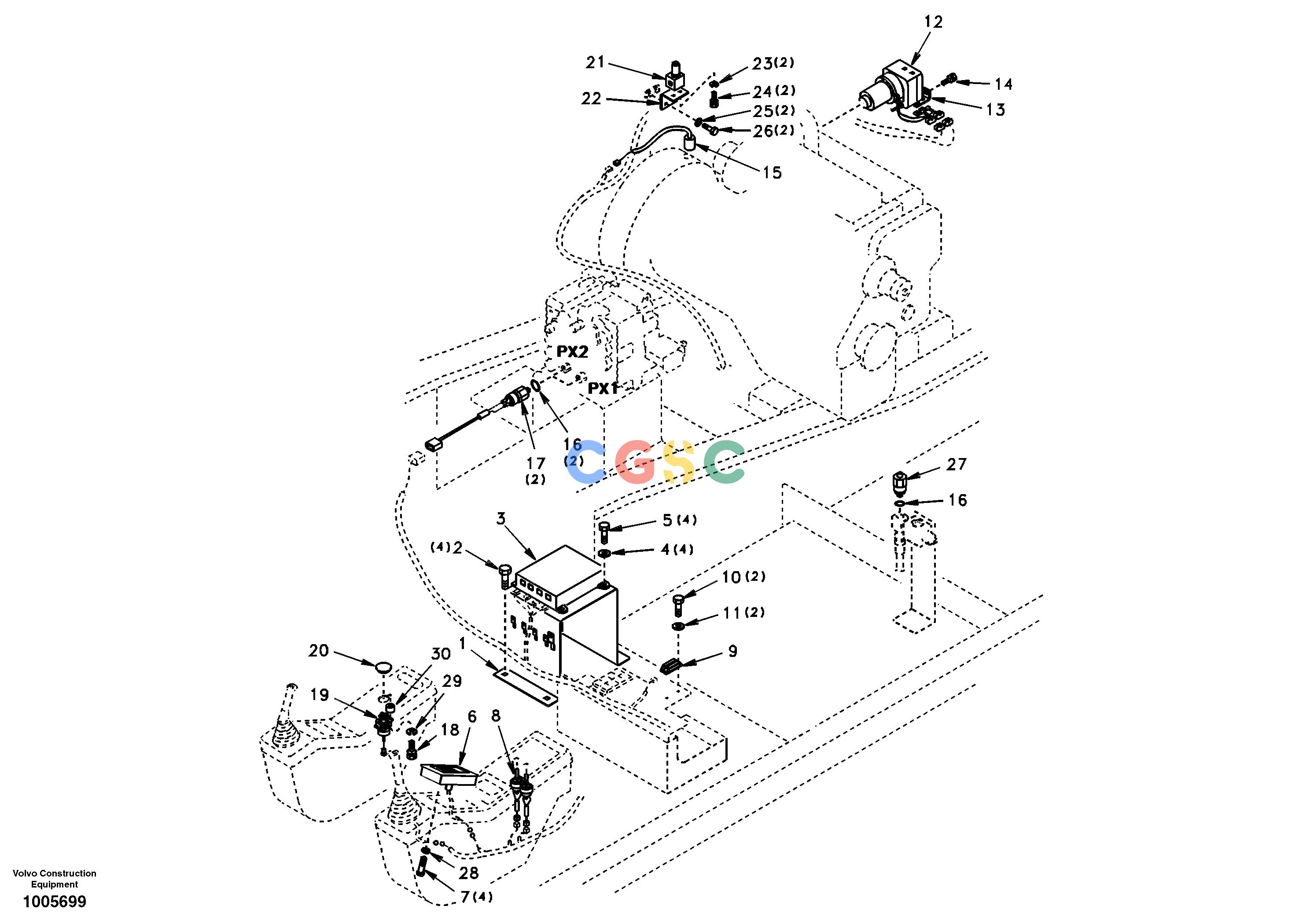

沃尔沃零件查询EC210 Automatic Speed controlNoneDD00A001-DD19A001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
222 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14529228
|
[1] |
Bracket
|
|
| 2. |
VOE946441
|
[4] |
Flange screw
|
|
| 3. |
SA1127-42000
|
[1] |
Control Unit
|
SER NO 3001-3204
|
| |
VOE14501909
|
[1] |
Control unit
|
SER NO 3205-4790
|
| |
VOE14514291
|
[1] |
Control unit
|
SER NO 4791-
|
| 4. |
VOE993835
|
[4] |
Plain washer
|
|
| 5. |
SA9011-10806
|
[4] |
Bolt
|
|
| 6. |
SA1127-62000
|
[1] |
Display
|
SER NO 3001-3204
|
| |
VOE14501904
|
[1] |
Display
|
SER NO 3205-3580
|
| |
VOE14507378
|
[1] |
Display
|
SER NO 3581-
|
| 7. |
SA9021-10402
|
[4] |
Cross recessed screw
|
|
| 8. |
VOE14526156
|
[1] |
Toggle switch
|
|
| 9. |
VOE14529299
|
[1] |
Box
|
|
| 10. |
VOE14880562
|
[2] |
Cross recessed screw
|
|
| 11. |
VOE955892
|
[2] |
Plain washer
|
|
| 12. |
VOE14529290
|
[1] |
Motor
|
|
| 13. |
VOE14529309
|
[1] |
Clip
|
|
| 14. |
SA9041-11003
|
[1] |
Bolt
|
|
| 15. |
SA1022-01040
|
[1] |
Magnet
|
|
| 16. |
VOE983502
|
[2] |
O-ring
|
|
| 17. |
SA1127-02020
|
[2] |
Switch
|
|
| 18. |
SA9021-10602
|
|
Cross recessed screw
|
SER NO 3001-3204
|
| |
SA9021-10504
|
|
Cross recessed screw
|
SER NO 3205-
|
| 19. |
VOE14529310
|
|
Potentiometer
|
SER NO 3001-3204
|
| |
VOE14501961
|
|
Selector
|
SER NO 3205-
|
| 20. |
SA1127-00500
|
[1] |
Cover
|
|
| |
VOE14501960
|
|
Rubber cover
|
|
| 21. |
VOE14529303
|
|
Valve
|
|
| 22. |
VOE14529305
|
|
Bracket
|
|
| 23. |
SA9213-08000
|
|
Spring washer
|
|
| 24. |
SA9011-10803
|
|
Bolt
|
|
| 25. |
SA9213-10000
|
|
Spring washer
|
|
| 26. |
SA9011-11004
|
|
Bolt
|
|
| 27. |
SA1127-02030
|
|
Switch
|
|
| 28. |
VOE14880426
|
[4] |
Washer
|
SER NO 3205-
|
| 29. |
SA9213-05000
|
|
Spring washer
|
SER NO 3205-
|
| 30. |
SA9116-10609
|
|
Clamping plate
|
SER NO 3205-3306
|
| |
SA9116-50609
|
|
Clamping plate
|
SER NO 3307-
|
