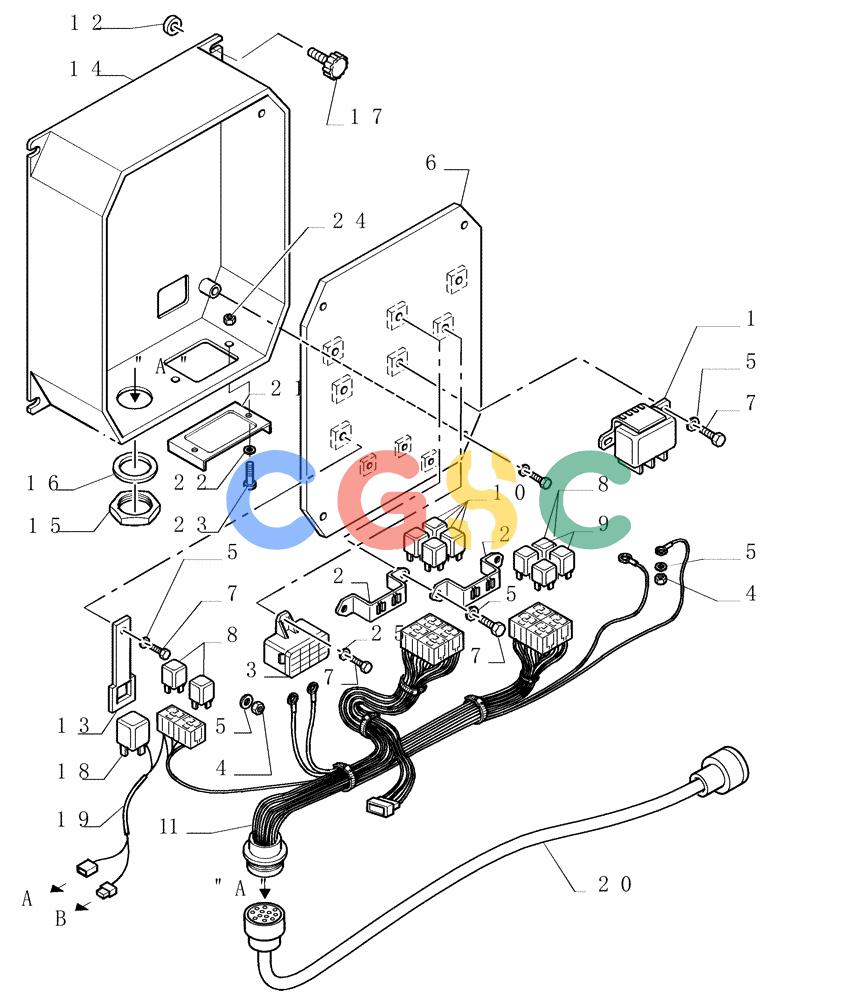

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (6.711[03]) - ELECTRICAL SYSTEM - ELECTRIC WIRING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
585 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79099760 | [1] | RELAY,24V, 90A | LEC-STRIBEL-90A |
| 2. | 79068201 | [2] | BRACKET | LEC |
| 3. | 79102105 | [1] | BOX | LEC- DERIVATION Superseded by part number: 87616204 |
| 4. | 15896221 | [4] | NUT,Hex, M6, 5.20mm High, Cl 10 | ZED Superseded by part number: 86500688 |
| 5. | 14496431 | [14] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 6. | 76046290 | [1] | PLATE | LEC |
| 7. | 10902031 | [11] | BOLT,Hex, M6 x 12mm, Cl 10.9 | LEC Superseded by part number: 86508616 |
| 8. | 76036558 | [4] | RELAY | LEC24V-10/20A |
| 9. | 79098184 | [2] | RELAY | LEC24V - 50A |
| 10. | 76069188 | [3] | RELAY | LEC |
| 11. | 76090997 | [1] | ELECTRIC CABLE | LEC- BATTERY BOX |
| 12. | 79087637 | [4] | RING,3.5mm ID x 11mm OD x 2mm Thk | LEC |
| 13. | 76048213 | [1] | BRACKET | LEC Superseded by part number: 85803862 |
| 14. | 76046111 | [1] | BOX | LEC |
| 15. | 76047485 | [1] | NUT | LEC |
| 16. | 76047486 | [1] | WASHER | LEC |
| 17. | 76012988 | [4] | KNOB | LEC |
| 18. | 76095137 | [1] | TIMER | LEC |
| 19. | 76087398 | [1] | WIRE HARNESS | LEC |
| 20. | 76066030 | [1] | ELECTRIC CABLE | TOR |
| 21. | 79073087 | [1] | CONSOLE | LEC |
| 23. | 10902431 | [2] | SCREW,Hex, M6 x 20mm, Cl 10.9 | LEC Superseded by part number: 86505530 |
| 25. | 12643701 | [1] | WASHER,6.15mm ID x 18mm OD x 1.5mm Thk | LEC Superseded by part number: 12643704 |
