沃尔沃零件查询D11B3-A MP; D11B4-A MPElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
300 次

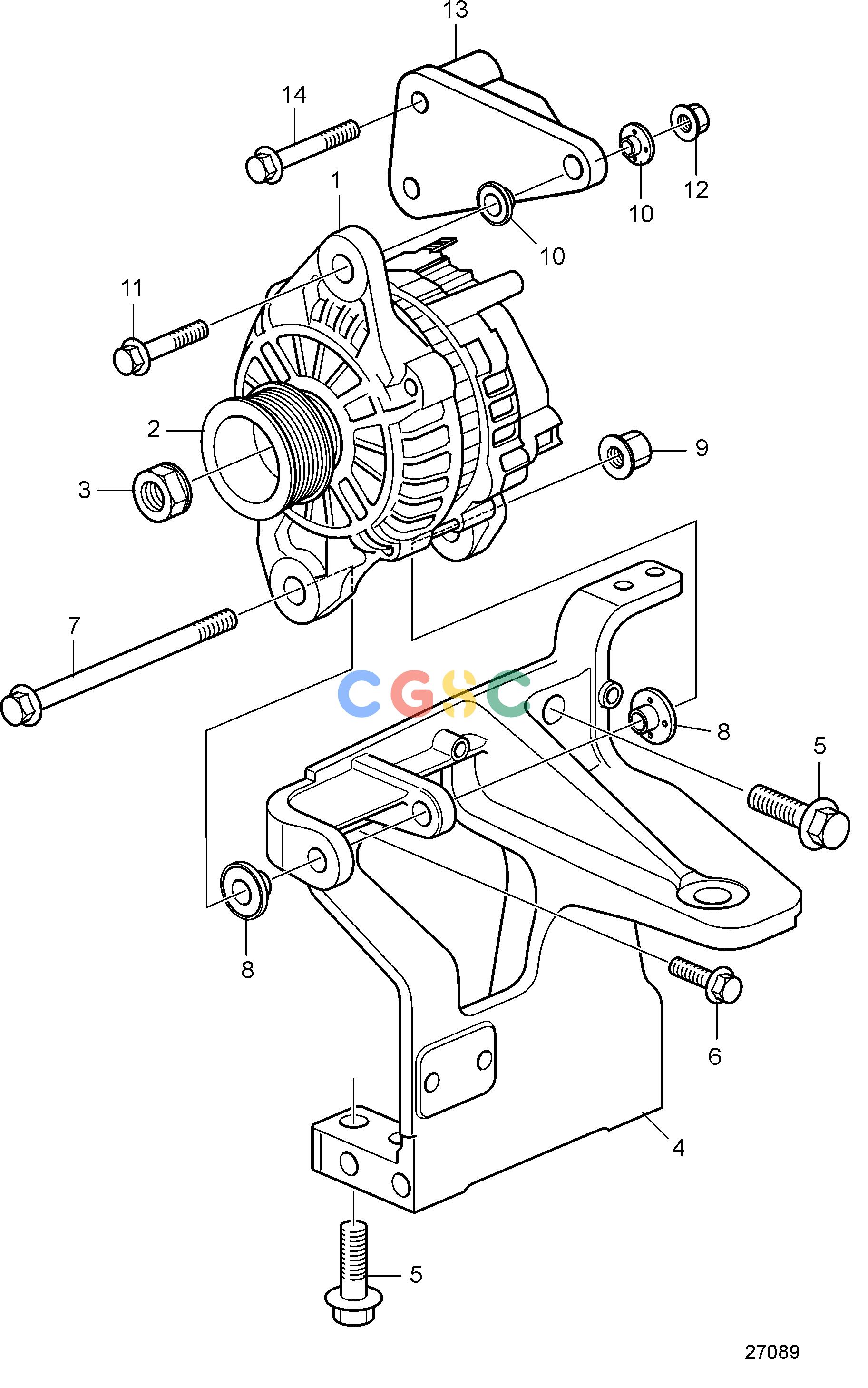

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3587218
|
[1] |
Alternator
|
24V 80A
|
| 1. |
3803845
|
[1] |
Alternator, exch
|
24V 80A
|
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
3807514
|
[1] |
Engine anchorage
|
|
| 5. |
975126
|
[4] |
Flange screw
|
|
| 6. |
969445
|
[1] |
Flange screw
|
|
| 7. |
984826
|
[1] |
Flange screw
|
|
| 8. |
21308514
|
[2] |
Insulating bushing
|
|
| 9. |
990960
|
[1] |
Flange lock nut
|
|
| 10. |
21308512
|
[2] |
Insulating bushing
|
|
| 11. |
994441
|
[1] |
Flange screw
|
|
| 12. |
990951
|
[1] |
Flange lock nut
|
|
| 13. |
22105849
|
[1] |
Bracket
|
|
| 14. |
994395
|
[2] |
Flange screw
|
|
