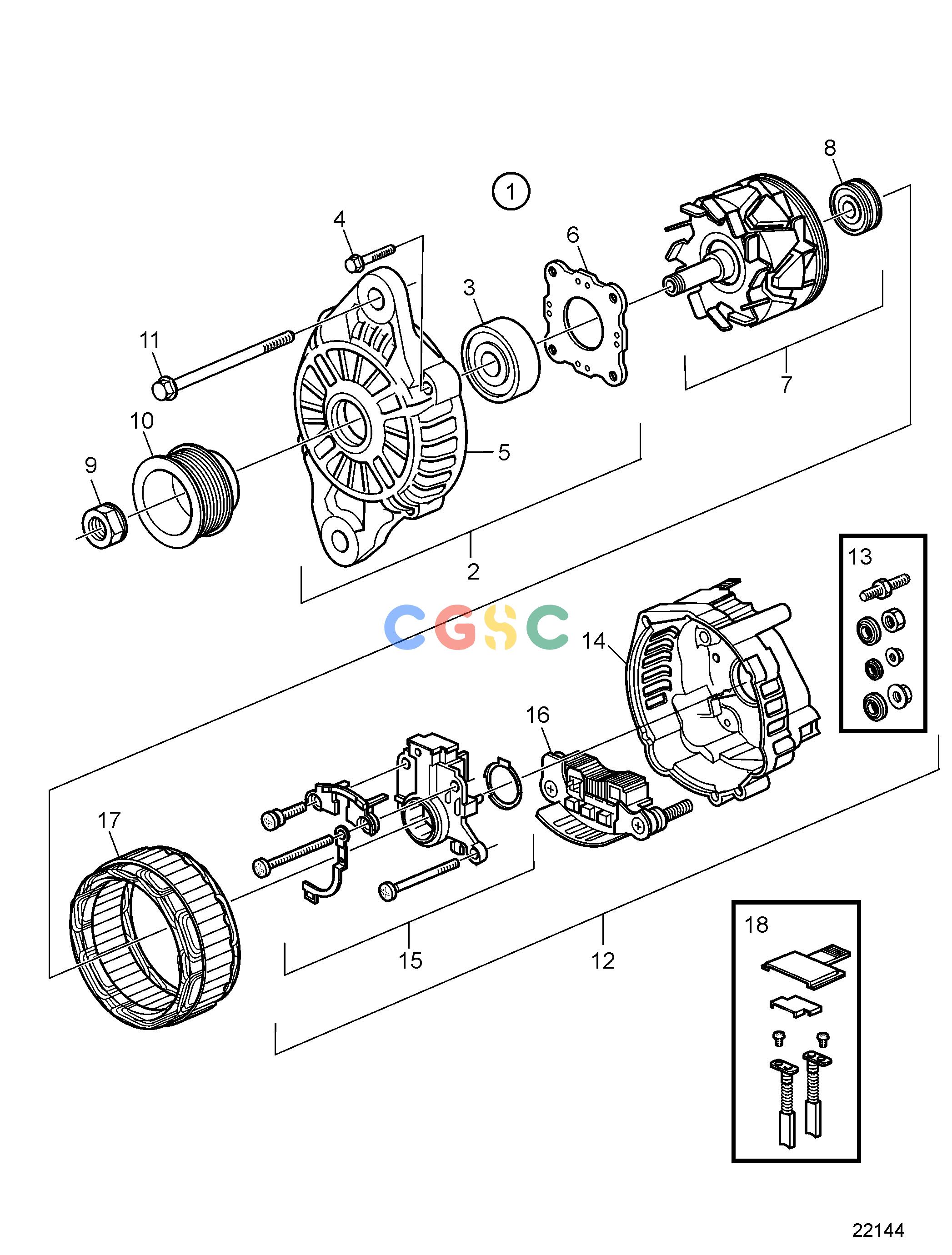

沃尔沃零件查询D11B3-A MP; D11B4-A MPElectrical SystemAlternator, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
547 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3587216
|
[1] |
Alternator
|
12V 115A
|
| 1. |
3803846
|
[1] |
Alternator, exch
|
12V 115A
|
| 1. |
3587218
|
[1] |
Alternator
|
24V 80A
|
| 1. |
3803845
|
[1] |
Alternator, exch
|
24V 80A
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
3818955
|
[1] |
Nut set
|
|
| 10. |
3840291
|
[1] |
Pulley
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
3818997
|
[1] |
Connector kit
|
|
| 14. |
|
|
|
|
| 15. |
3840307
|
[1] |
Regulator kit
|
|
| 16. |
3818995
|
[1] |
Rectifier
|
For alternator 3587216
|
| 16. |
3840309
|
[1] |
Rectifier
|
For alternator 3587218
|
| 17. |
|
|
|
|
| 18. |
20750350
|
[1] |
Brush set
|
|
