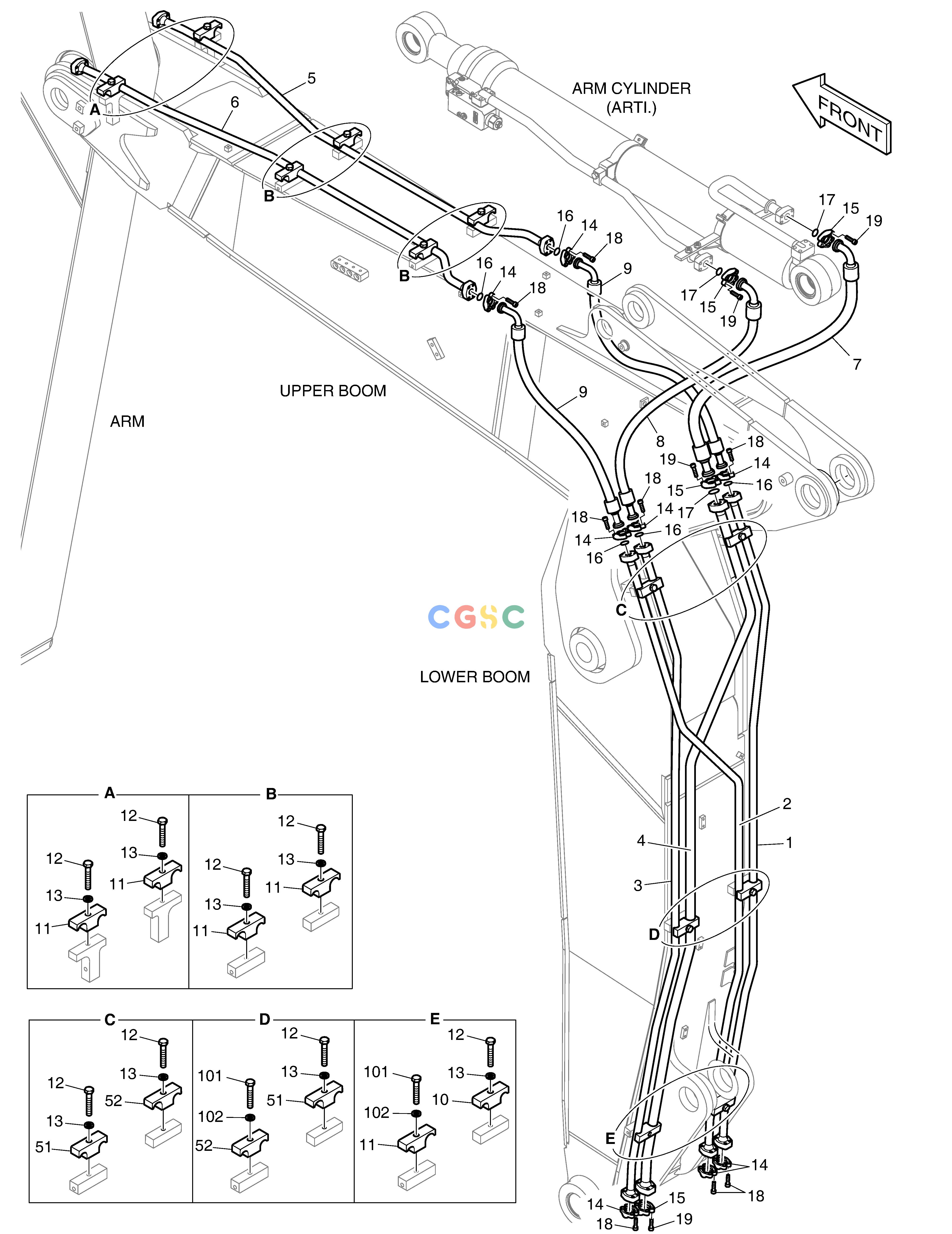

斗山零件查询ARTI.BOOM PIPING DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
154 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04752
|
[-] |
|
|
| 1. |
420207-01176A
|
[1] |
|
|
| 10. |
120208-00074B
|
[1] |
|
|
| 101. |
S0563366
|
[2] |
BOLT
|
|
| 102. |
K1015638
|
[2] |
WASHER;HARDENED
|
|
| 11. |
120208-00071B
|
[7] |
|
|
| 12. |
S0563366
|
[10] |
BOLT
|
|
| 13. |
K1015638
|
[10] |
WASHER;HARDENED
|
|
| 14. |
2181-9079
|
[16] |
FLANGE
|
|
| 15. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 16. |
DS2856002
|
[5] |
O-RING
|
|
| 17. |
DS2856003
|
[3] |
O-RING
|
|
| 18. |
S2212366
|
[32] |
BOLT
|
|
| 19. |
S2212466
|
[16] |
BOLT
|
|
| 2. |
420207-01177A
|
[1] |
|
|
| 3. |
420207-01178A
|
[1] |
|
|
| 4. |
420207-01179A
|
[1] |
|
|
| 5. |
420207-01180
|
[1] |
|
|
| 51. |
120208-00074B
|
[2] |
|
|
| 52. |
120208-00071B
|
[2] |
|
|
| 6. |
420207-01218
|
[1] |
|
|
| 7. |
DS2040954
|
[1] |
|
|
| 8. |
DS2040955
|
[1] |
|
|
| 9. |
DS20401136
|
[2] |
|
|
