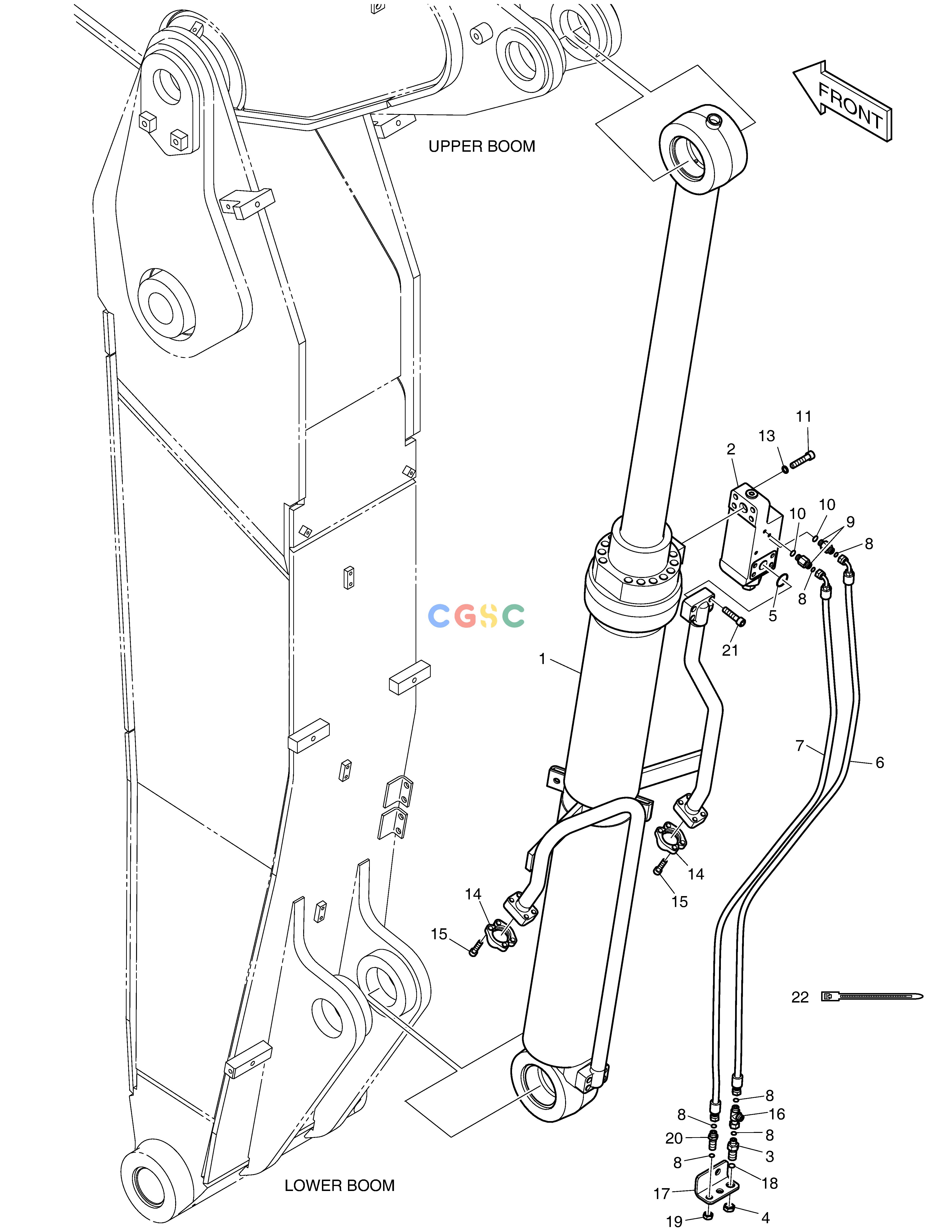

斗山零件查询ARTI.BOOM PIPING - LOCK VALVE DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
594 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-11938
|
[-] |
|
|
| 1. |
400306-00110A
|
[1] |
|
|
| 10. |
S8000111
|
[2] |
O-RING
|
|
| 11. |
S2215766
|
[4] |
BOLT
|
|
| 13. |
S5110703
|
[4] |
WASHER
|
|
| 14. |
2181-9078
|
[4] |
FLANGE;SPLIT
|
|
| 15. |
S2212466
|
[8] |
BOLT
|
|
| 16. |
DS2362007
|
[1] |
TEE
|
|
| 17. |
110406-00638B
|
[1] |
|
|
| 18. |
S8030061
|
[1] |
O-RING
|
|
| 19. |
DS0301066
|
[1] |
|
|
| 2. |
410114-00232
|
[1] |
|
|
| 20. |
DS2248004
|
[1] |
ELBOW;45 DEG
|
|
| 21. |
S2215666
|
[4] |
BOLT;SOCKET
|
|
| 22. |
2124-1084D3
|
[3] |
CLIP;BAND
|
|
| 3. |
DS2230004
|
[1] |
|
|
| 4. |
DS0301032
|
[1] |
NUT
|
|
| 5. |
DS2856003
|
[1] |
O-RING
|
|
| 6. |
DS20131747
|
[1] |
|
|
| 7. |
DS20131748
|
[1] |
|
|
| 8. |
S8030041
|
[6] |
O-RING
|
|
| 9. |
DS2232212
|
[2] |
|
|
