纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (2.304[01]) - BRAKE CONTROLS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
174 次

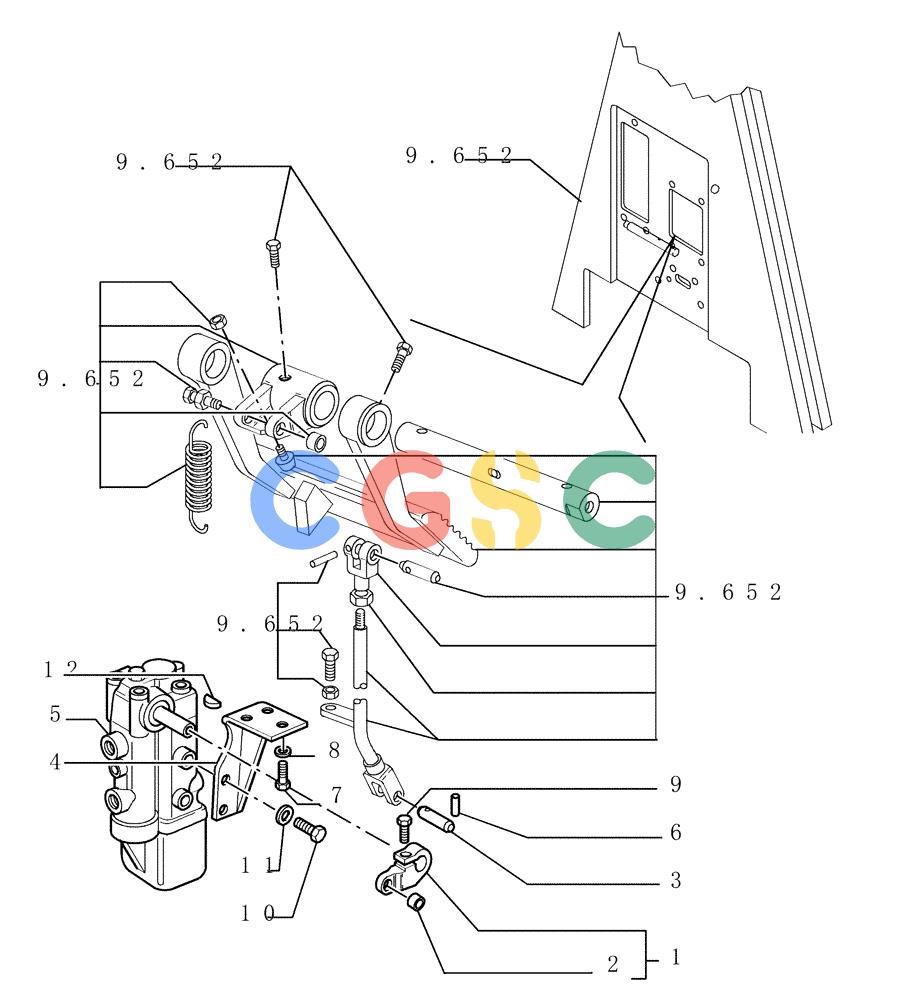

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79103851 | [1] | LEVER | LEC- ASSY |
| 2. | 79087112 | [1] | BUSHING,Needle, 10mm ID x 14mm OD x 10mm W | LEC |
| 3. | 79103848 | [1] | PIN,10mm OD x 38mm L | LEC |
| 4. | 79103852 | [1] | BRACKET | LEC |
| 5. | 76068424 | [1] | BRAKE VALVE | LEC- ASSY SEE PAG. 3-4 |
| 6. | 14163271 | [1] | ROLL PIN | LEC4X26 Superseded by part number: 14163270 |
| 7. | 16043531 | [3] | SCREW,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd | LEC |
| 8. | 14496531 | [3] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 9. | 16043831 | [1] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd | BHB Superseded by part number: |
| 10. | 11106231 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 11. | 14496631 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 12. | 10205720 | [1] | WOODRUFF KEY | LEC3X5 Superseded by part number: |
