纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (2.304[02]) - BRAKE CONTROLS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
664 次

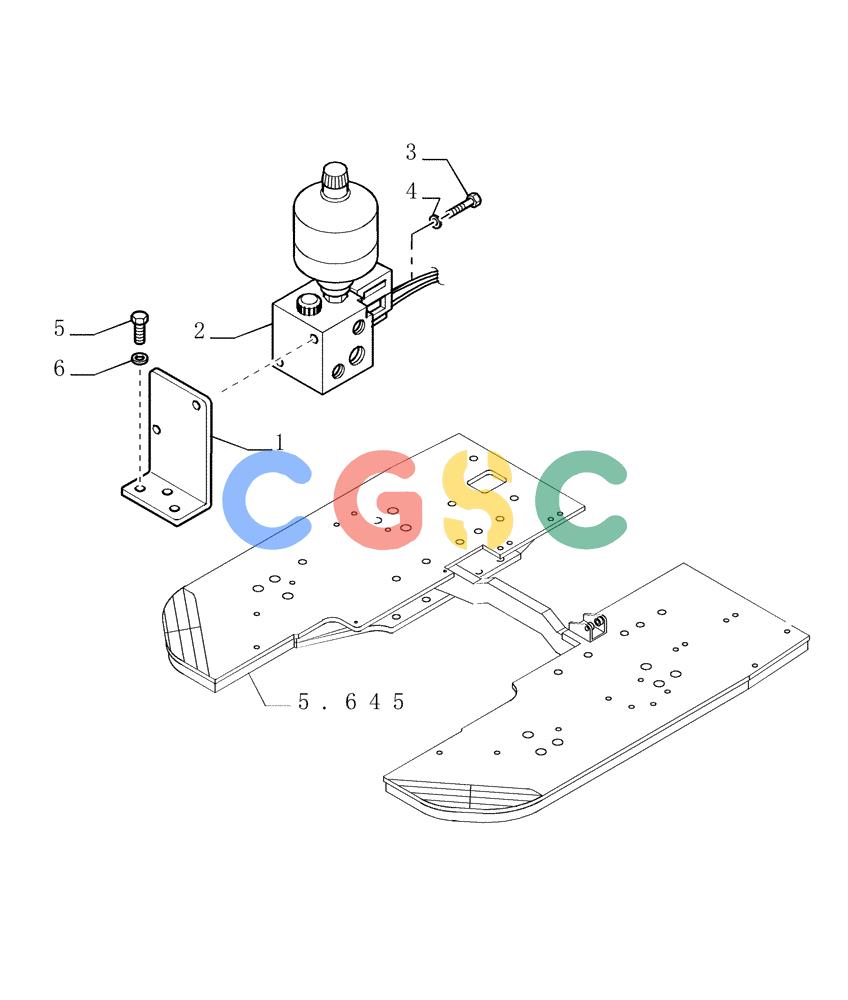

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76078477 | [1] | BRACKET | LEC |
| 2. | 76047028 | [1] | BRAKE VALVE | LEC- ASSY SEE PAG.5 |
| 3. | 16046131 | [2] | SCREW,Hex, M8 x 100mm, Cl 10.9 | LEC Superseded by part number: 16606824 |
| 4. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 5. | 11106231 | [4] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 6. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
