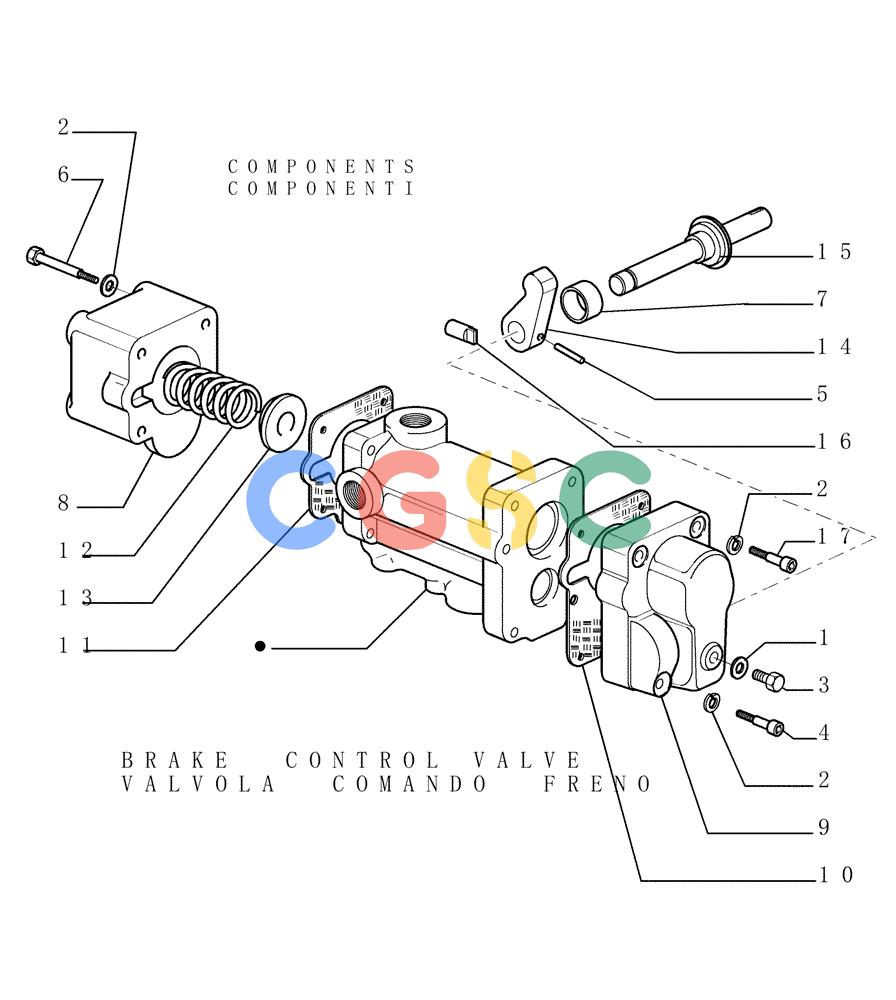

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (2.304[04]) - BRAKE CONTROLS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
216 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10298360 | [1] | SEALING WASHER,M10.2 x 16 x 1, Copper | LEC Superseded by part number: 4858606 |
| 2. | 10571871 | [8] | LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | LEC Superseded by part number: 10571873 |
| 3. | 11903111 | [1] | PLUG,M10 x 1.25 x 11, Cl5.8 | JES Superseded by part number: 11903114 |
| 4. | 14302231 | [2] | SCREW,M8 x 55mm, Cl 10.9 | LEC |
| 5. | 14601071 | [1] | LOCK PIN,M5 x 24, Slotted | LEC Superseded by part number: 14601070 |
| 6. | 14359431 | [4] | SCREW,M8 x 75mm | LEC8X1,25X75 |
| 7. | 79026855 | [1] | SEAL,13.98mm ID x 24.03mm OD x 7mm Thk | LEC |
| 8. | 76027785 | [1] | COVER | LEC |
| 9. | 79059612 | [1] | COVER | LEC |
| 10. | 76028135 | [1] | GASKET,0.8mm Thk | LEC |
| 11. | 76028136 | [1] | GASKET,0.8mm Thk | LEC |
| 12. | 76027786 | [1] | SPRING | LEC |
| 13. | 79059619 | [1] | WASHER | LEC |
| 14. | 79059630 | [1] | LEVER | LEC |
| 15. | 79059631 | [1] | PIN | LEC |
| 16. | 79059632 | [1] | DOWEL | LEC |
| 17. | 14306631 | [2] | HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 10.9, Full Thd | LEC |
