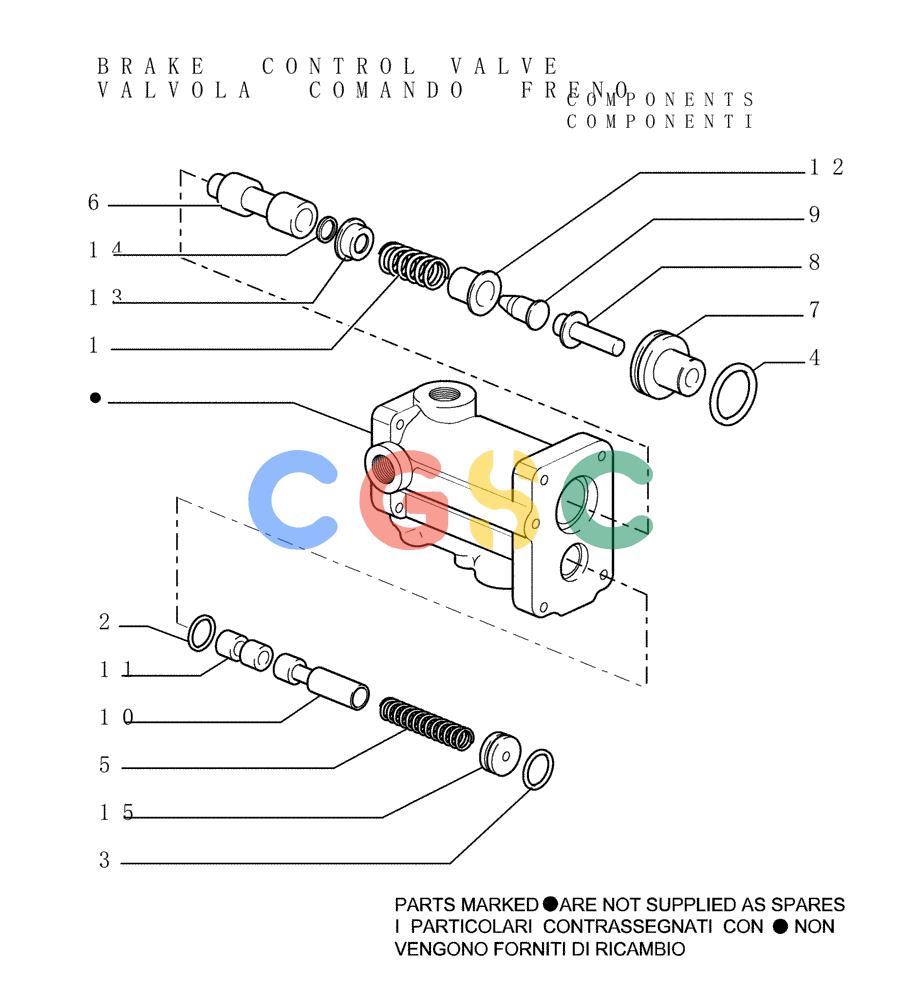

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (2.304[03]) - BRAKE CONTROLS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
853 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76068426 | [1] | SPRING | LEC |
| 2. | 14457480 | [1] | O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro | LEC Superseded by part number: 86977728 |
| 3. | 14457580 | [1] | O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro | LEC Superseded by part number: 14457581 |
| 4. | 14458480 | [1] | O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro | JES Superseded by part number: 134375 |
| 5. | 79068645 | [1] | SPRING | LEC |
| 6. | 79059615 | [1] | PLUNGER | LEC |
| 7. | 79059618 | [1] | GUIDE | LEC |
| 8. | 79059621 | [1] | PIN,9.99mm OD x 46mm L | LEC |
| 9. | 79059620 | [1] | PUSH ROD | LEC |
| 10. | 79059622 | [1] | PISTON | LEC |
| 11. | 79059626 | [1] | SPACER | LEC |
| 12. | 76068427 | [1] | CUP | LEC- OUTER |
| 13. | 76068425 | [1] | CUP | LEC- INNER |
| 14. | 79059629 | [1] | WASHER | LEC |
| 15. | 79059633 | [1] | WASHER | LEC |
