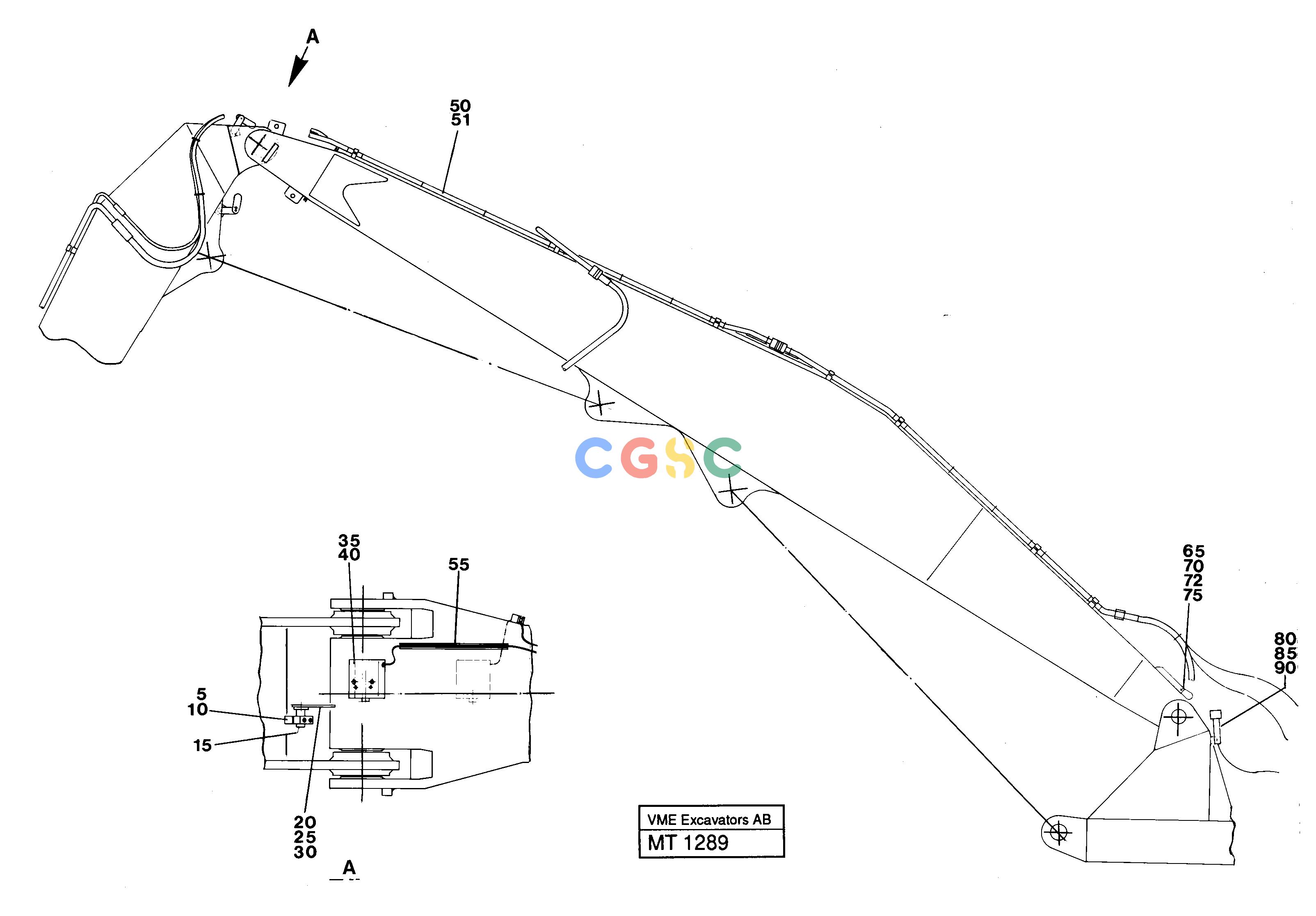

沃尔沃零件查询EC230 ÅKERMAN Electric installationÅKERMAN EC230 SER NO - 4368 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
649 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE14042948
|
[2] |
Tube Assembly
|
|
| 10. |
VOE970952
|
[4] |
Hexagon screw
|
|
| 15. |
VOE14239067
|
[2] |
Contact Arm
|
|
| 20. |
VOE14239068
|
[2] |
Plate
|
|
| 25. |
VOE13970947
|
[2] |
Hexagon screw
|
|
| 30. |
VOE13971089
|
[2] |
Lock nut
|
|
| 35. |
VOE14237683
|
[2] |
Box
|
|
| 40. |
VOE970952
|
[4] |
Hexagon screw
|
|
| 50. |
VOE14016673
|
[20] |
Strip clamp
|
|
| 51. |
VOE14255192
|
[20] |
Cable protection
|
|
| 55. |
VOE14014206
|
[2] |
Rubber moulding
|
|
| 65. |
VOE14239197
|
[1] |
Plate
|
|
| 70. |
VOE940132
|
[1] |
Hexagon screw
|
|
| 72. |
VOE11055612
|
[REQ] |
Plain washer
|
|
| 75. |
VOE963106
|
[1] |
Lock nut
|
|
| 80. |
VOE14243096
|
[1] |
Arm
|
|
| 85. |
VOE13970948
|
[1] |
Hexagon screw
|
|
| 90. |
VOE13971089
|
[1] |
Lock nut
|
|
