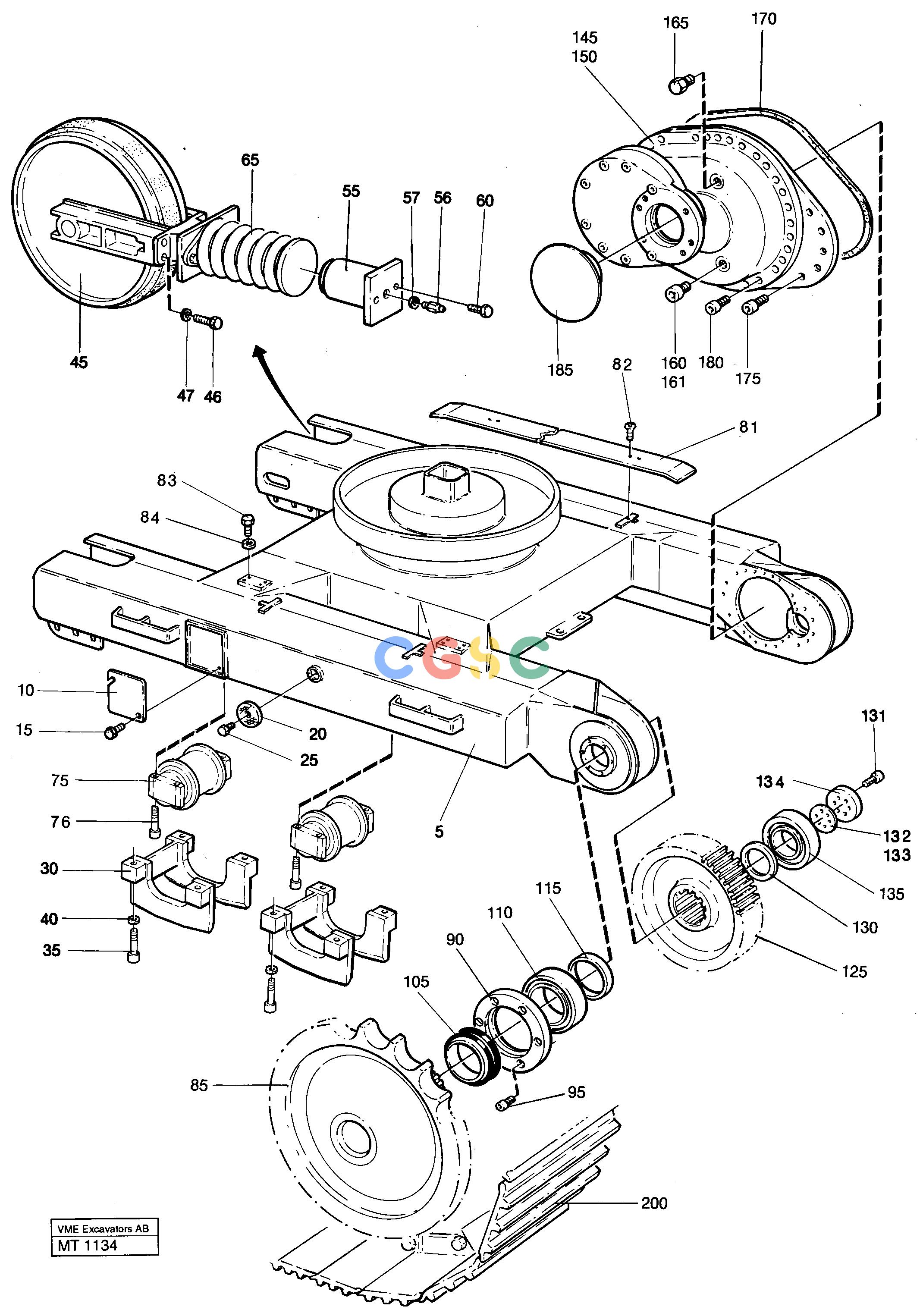

沃尔沃零件查询EC230 ÅKERMAN Undercarriage Ec 230 Undercarriage Ec 229ÅKERMAN EC230 SER NO - 4368EC230-EC229NoneNone14247975 14249529Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE14054279
|
[1] |
Undercarriage
|
|
| 5. |
VOE14235424
|
|
Undercarriage
|
|
| 10. |
VOE14054570
|
[2] |
Hatch
|
|
| 10. |
VOE14041524
|
|
Hatch
|
|
| 15. |
VOE13970967
|
[4] |
Hexagon screw
|
|
| 20. |
VOE4780974
|
[2] |
Side marking reflector
|
|
| 25. |
VOE956092
|
[2] |
Cross recessed screw
|
|
| 30. |
VOE14247480
|
[4] |
De-rlg Protect
|
|
| |
VOE14247481
|
[4] |
Support
|
|
| |
VOE14273986
|
[100] |
Rectangle
|
|
| 35. |
VOE963320
|
[32] |
Hexagon screw
|
|
| 40. |
VOE930845
|
[32] |
Plain washer
|
|
| 41. |
VOE955361
|
|
Hexagon screw
|
|
| 42. |
VOE13955900
|
|
Washer
|
|
| 45. |
VOE14016867
|
[2] |
Idler
|
|
| 46. |
VOE955364
|
[4] |
Hexagon screw
|
|
| 47. |
VOE14023774
|
[4] |
Spring washer
|
|
| 55. |
VOE14213514
|
[2] |
Tension Cylinde
|
|
| 56. |
VOE14042668
|
[2] |
Lubricating nipple
|
|
| 57. |
VOE14042936
|
[2] |
Sealing washer
|
|
| 60. |
VOE13970972
|
[4] |
Hexagon screw
|
|
| 65. |
VOE9014230315
|
[2] |
Spring Assembly
|
|
| 75. |
VOE14043992
|
[20] |
Bottom roller
|
|
| 76. |
VOE963320
|
[80] |
Hexagon screw
|
|
| 81. |
VOE14241259
|
[2] |
Slide rail
|
|
| 81. |
VOE14240679
|
|
Slide rail
|
SER NO 4135 -
|
| 82. |
VOE955364
|
[8] |
Hexagon screw
|
|
| 83. |
VOE955384
|
[16] |
Hexagon screw
|
|
| 84. |
VOE955903
|
[16] |
Plain washer
|
|
| |
|
[2] |
Top Roller
|
ALT
|
| 85. |
VOE14247479
|
[2] |
Drive Gear
|
|
| |
VOE14099512
|
[1] |
Axle shaft
|
|
| |
VOE14213623
|
[1] |
Drive gear ring
|
|
| |
VOE14092623
|
[1] |
Article
|
|
| |
VOE14092622
|
[1] |
Ferrule
|
|
| 90. |
VOE14044086
|
[2] |
Cover
|
|
| 95. |
VOE959255
|
[12] |
Hex. socket screw
|
|
| 100. |
VOE14024151
|
[REQ] |
Sealant
|
|
| 105. |
VOE14013313
|
[2] |
Face Sealing
|
|
| 110. |
VOE14013587
|
[2] |
Roller bearing
|
|
| 115. |
VOE14232707
|
[2] |
Spacer
|
|
| 125. |
VOE14232704
|
[2] |
Gear
|
|
| 130. |
VOE14040089
|
[2] |
Spacer
|
|
| 131. |
VOE955365
|
[6] |
Hexagon screw
|
|
| 132. |
VOE14040190
|
[REQ] |
Adjusting washer
|
|
| 133. |
VOE14040191
|
[REQ] |
Adjusting washer
|
|
| 134. |
VOE14239976
|
[2] |
Washer
|
|
| 135. |
VOE14013636
|
[2] |
Roller bearing
|
|
| 145. |
VOE14237554
|
[1] |
Transmission
|
|
| 150. |
VOE14237555
|
[1] |
Transmission
|
|
| 160. |
VOE14023409
|
[8] |
Plug
|
|
| 161. |
VOE14023409
|
[4] |
Plug
|
|
| 165. |
VOE14044202
|
[2] |
Overpress.plug
|
|
| 170. |
VOE14016535
|
[2] |
V-ring
|
|
| 175. |
VOE13968816
|
[40] |
Allen Hd Screw
|
|
| 180. |
VOE959255
|
[10] |
Hex. socket screw
|
|
| 185. |
VOE14044827
|
[2] |
Washer
|
|
| 190. |
VOE14024151
|
[REQ] |
Sealant
|
|
| 195. |
VOE14024293
|
[REQ] |
Locking fluid
|
|
| 200. |
|
|
Track,compl.
|
|
