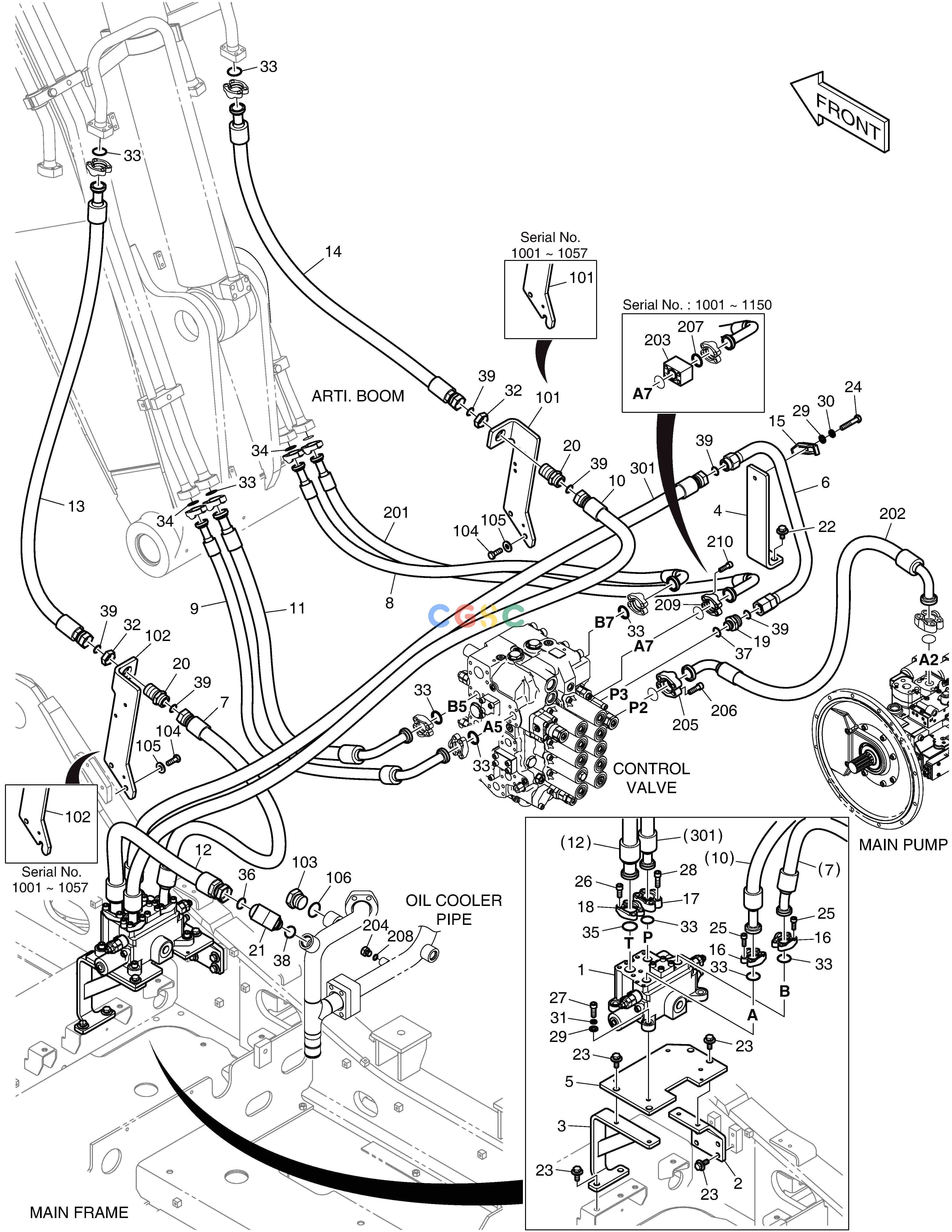

斗山零件查询MAIN PIPING - ARTI BOOM DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
238 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09196
|
[-] |
|
|
| 1. |
K1033235A
|
[1] |
VALVE;CONTROL
|
|
| 10. |
DS2016208
|
[1] |
|
|
| 101. |
110406-03248
|
[1] |
|
110406-03248A
|
| 101. |
110406-03248A
|
[1] |
|
|
| 102. |
110406-03249
|
[1] |
|
110406-03249A
|
| 102. |
110406-03249A
|
[1] |
|
|
| 103. |
2181-1950D9
|
[1] |
PLUG
|
|
| 104. |
S0515366
|
[4] |
BOLT
|
|
| 105. |
120804-00079
|
[4] |
WASHER
|
|
| 106. |
S8000291
|
[1] |
O-RING
|
|
| 11. |
DS20401131
|
[1] |
|
|
| 12. |
DS2016294
|
[1] |
|
|
| 13. |
DS2016334
|
[1] |
|
|
| 14. |
DS2016334
|
[1] |
|
|
| 15. |
2124-1026D3
|
[1] |
CLAMP;PIPE
|
|
| 16. |
2181-9078
|
[4] |
FLANGE;SPLIT
|
|
| 17. |
2181-9081
|
[2] |
FLANGE;SPLIT
|
|
| 18. |
4215-1003D7
|
[2] |
FLANGE;HALF
|
|
| 19. |
DS2232232
|
[1] |
ADAPTER
|
|
| 2. |
110406-01347B
|
[1] |
|
|
| 20. |
DS2415005
|
[2] |
ADAPTER
|
|
| 201. |
DS2040470
|
[1] |
HOSE
|
|
| 202. |
DS2045869
|
[1] |
|
|
| 203. |
181-00806
|
[1] |
BLOCK;SPACER
|
|
| 204. |
2181-1950D1
|
[1] |
PLUG
|
|
| 205. |
2181-9081
|
[2] |
FLANGE;SPLIT
|
|
| 206. |
S2215466
|
[4] |
BOLT
|
|
| 207. |
DS2856003
|
[1] |
O-RING
|
|
| 208. |
S8000111
|
[1] |
O-RING
|
|
| 209. |
2181-9083
|
[2] |
FLANGE;SPLIT
|
|
| 21. |
DS2304096
|
[1] |
ELBOW
|
|
| 210. |
S2212266
|
[4] |
BOLT
|
|
| 22. |
DS0025015
|
[2] |
BOLT
|
|
| 23. |
DS0025025
|
[10] |
BOLT
|
|
| 24. |
S0561066
|
[1] |
BOLT
|
|
| 25. |
S2212266
|
[8] |
BOLT
|
|
| 26. |
S2215266
|
[4] |
BOLT
|
|
| 27. |
S2215366
|
[4] |
BOLT
|
|
| 28. |
S2215466
|
[4] |
BOLT
|
|
| 29. |
S5010713
|
[5] |
WASHER;PLAIN
|
|
| 3. |
110406-02590A
|
[1] |
|
|
| 30. |
S5102703
|
[1] |
WASHER
|
|
| 301. |
DS2016213
|
[1] |
|
|
| 31. |
S5110703
|
[4] |
WASHER
|
|
| 32. |
121-00010D9
|
[2] |
NUT
|
|
| 33. |
DS2856003
|
[9] |
O-RING
|
|
| 34. |
DS2856002
|
[2] |
O-RING
|
|
| 35. |
DS2856004
|
[1] |
O-RING
|
|
| 35. |
DS2856004
|
[1] |
O-RING
|
|
| 36. |
2180-1026D37
|
[1] |
O-RING
|
|
| 37. |
S8000241
|
[1] |
O-RING
|
|
| 38. |
S8000291
|
[1] |
O-RING
|
|
| 39. |
S8030161
|
[6] |
O-RING
|
|
| 4. |
110406-02591A
|
[1] |
|
|
| 5. |
110406-03247
|
[1] |
|
|
| 6. |
420207-02374A
|
[1] |
|
420207-02374B
|
| 6. |
420207-02374B
|
[1] |
|
|
| 7. |
DS2132008
|
[1] |
|
|
| 8. |
DS2040992
|
[1] |
|
|
| 8. |
DS2040573
|
[1] |
|
|
| 9. |
DS20401133
|
[1] |
|
|
