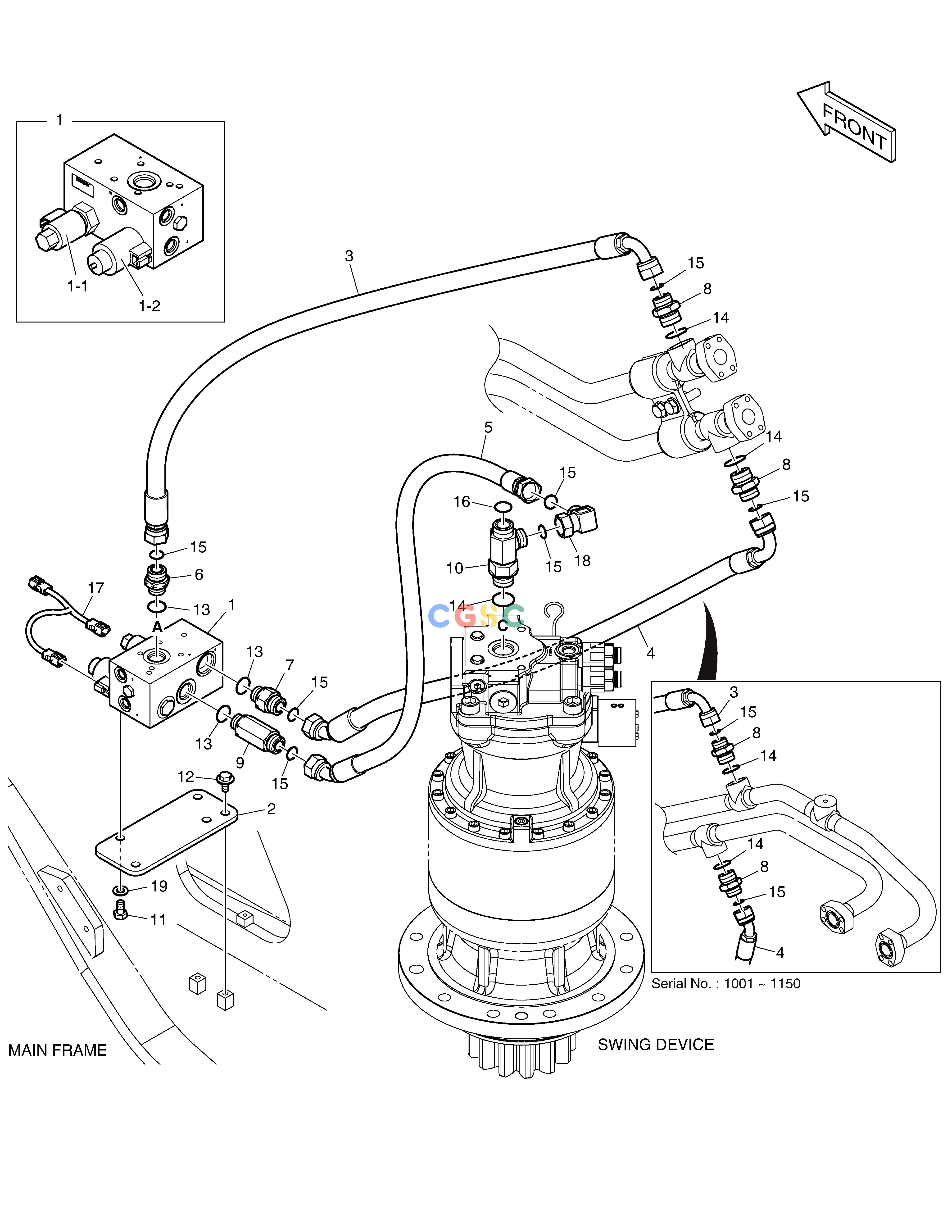

斗山零件查询MAIN PIPING - BOOM FLOATING DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
476 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09220
|
[-] |
|
|
| 1. |
410111-00092
|
[1] |
|
|
| 1-1. |
300715-00065
|
[1] |
|
|
| 1-2. |
300715-00066
|
[1] |
|
|
| 10. |
DS2412023
|
[1] |
TEE
|
|
| 11. |
S0514966
|
[2] |
BOLT
|
|
| 12. |
DS0025023
|
[3] |
BOLT
|
|
| 13. |
S8000231
|
[3] |
O-RING
|
|
| 14. |
S8000291
|
[3] |
O-RING
|
|
| 15. |
S8030121
|
[7] |
O-RING
|
|
| 16. |
S8030161
|
[1] |
O-RING
|
|
| 17. |
310207-01077
|
[1] |
|
|
| 18. |
DS2291020
|
[1] |
|
|
| 19. |
120804-00077
|
[2] |
WASHER
|
|
| 2. |
110406-03075
|
[1] |
|
|
| 3. |
DS20131864
|
[1] |
|
|
| 3. |
DS20132936
|
[1] |
|
|
| 4. |
DS2020223
|
[1] |
|
|
| 4. |
DS20131538
|
[1] |
|
|
| 5. |
DS20121358
|
[1] |
|
|
| 6. |
2181-2627D1
|
[1] |
ADAPTER
|
|
| 7. |
2181-2627D7
|
[1] |
ADAPTER
|
|
| 8. |
DS2232003
|
[2] |
ADAPTER
|
|
| 9. |
DS2404025
|
[1] |
ADAPTER
|
|
