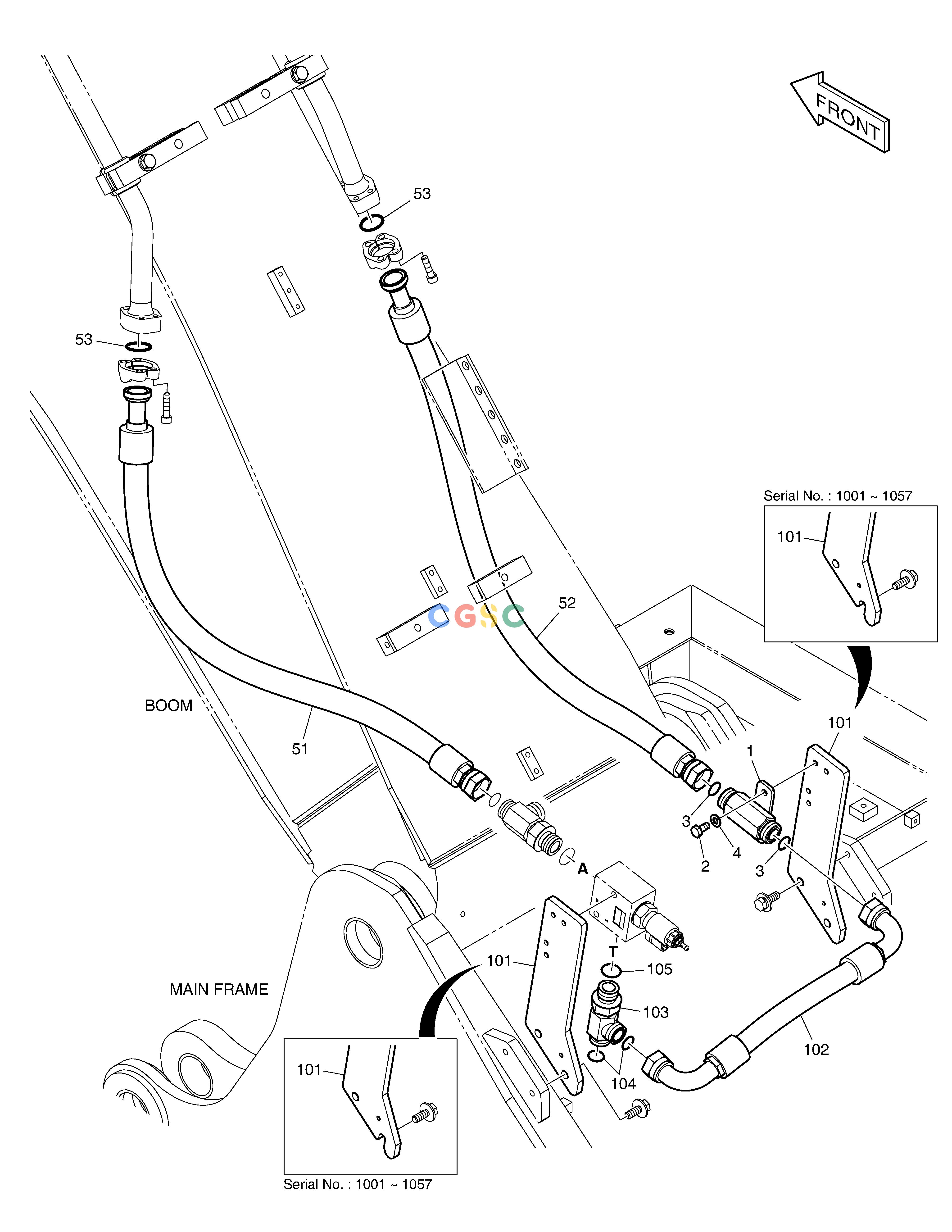

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-09199 | [-] | ||
| 1. | 430201-00144A | [1] | ||
| 101. | 110406-03250 | [2] | 110406-03250A | |
| 101. | 110406-03250A | [2] | ||
| 102. | DS2023303 | [1] | HOSE | |
| 103. | 2181-2293D4 | [1] | TEE | |
| 104. | S8030161 | [2] | O-RING | |
| 105. | S8000291 | [1] | O-RING | |
| 2. | S0511966 | [2] | BOLT | |
| 3. | S8030161 | [2] | O-RING | |
| 4. | 120804-00078 | [2] | WASHER | |
| 51. | DS2016210 | [1] | ||
| 52. | DS2016117 | [1] | ||
| 53. | DS2856003 | [2] | O-RING |
