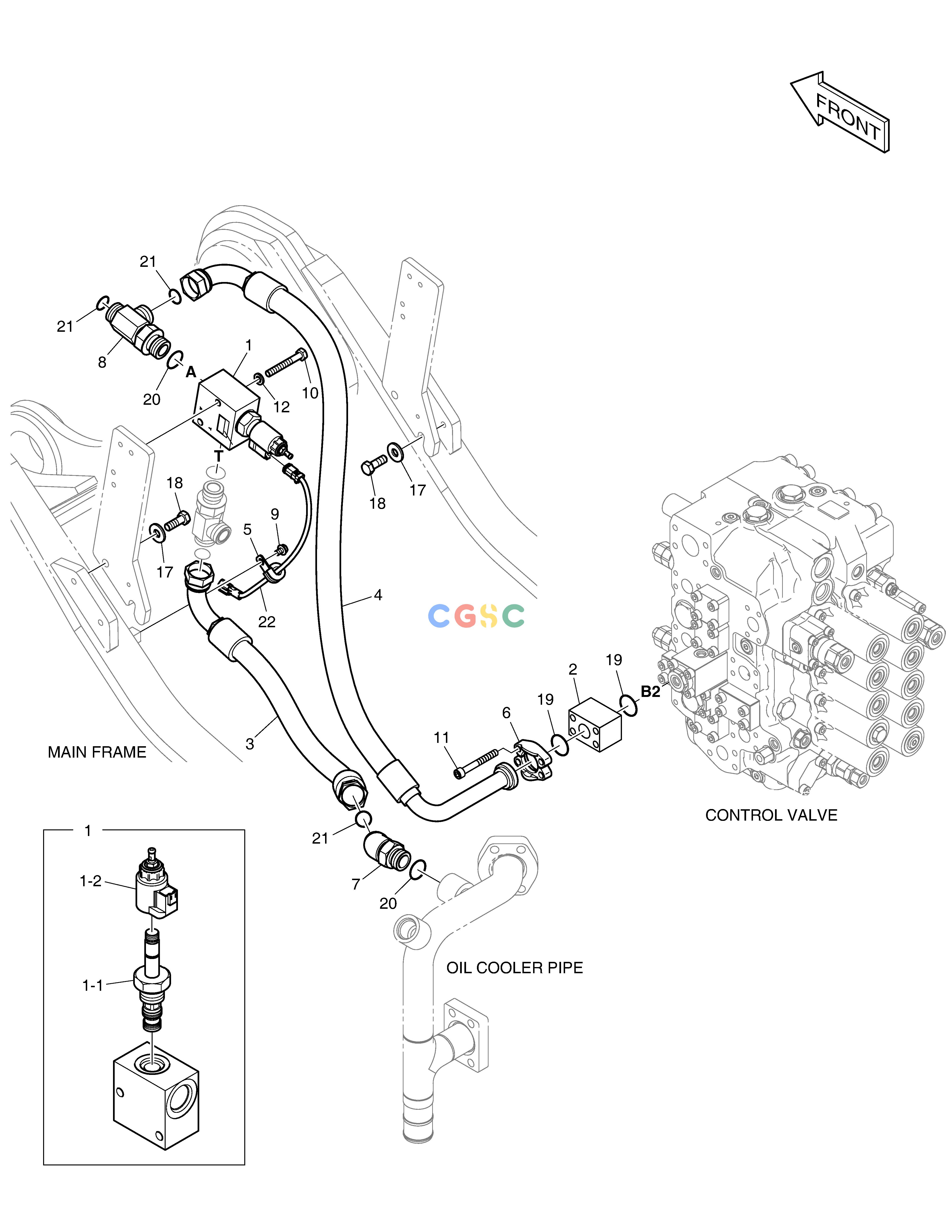

斗山零件查询MAIN PIPING - ONE & TWO WAY DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
790 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09198
|
[-] |
|
|
| 1. |
410127-00233
|
[1] |
|
|
| 1-1. |
410127-00231
|
[1] |
|
|
| 1-2. |
300715-00064
|
[1] |
|
|
| 10. |
S0558966
|
[2] |
BOLT
|
|
| 11. |
S2213266
|
[4] |
BOLT;SOCKET M10X1.5X80
|
|
| 12. |
120804-00076
|
[2] |
WASHER
|
|
| 17. |
120804-00079
|
[4] |
WASHER
|
|
| 18. |
S0515366
|
[4] |
BOLT
|
|
| 19. |
DS2856003
|
[2] |
O-RING
|
|
| 2. |
181-00806
|
[1] |
BLOCK;SPACER
|
|
| 20. |
S8000291
|
[2] |
O-RING
|
|
| 21. |
S8030161
|
[3] |
O-RING
|
|
| 22. |
310207-01300
|
[1] |
|
|
| 3. |
DS20131952
|
[1] |
|
|
| 4. |
DS2026507
|
[1] |
|
|
| 5. |
124-00208D2
|
[1] |
CLAMP
|
|
| 6. |
2181-9078
|
[2] |
FLANGE;SPLIT
|
|
| 7. |
2181-2816D2
|
[1] |
ELBOW
|
|
| 8. |
2181-2293D4
|
[1] |
TEE
|
|
| 9. |
K1001029
|
[1] |
BOLT
|
|
