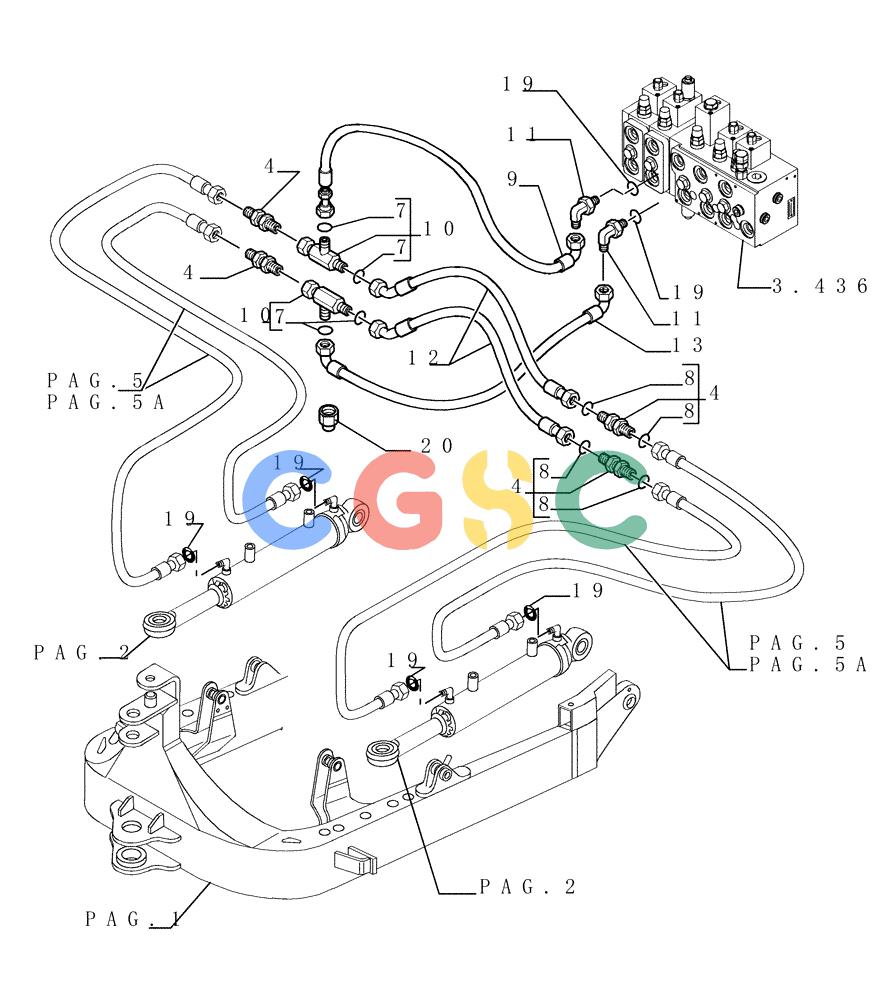

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.440[04]) - FRONT IMPLEMENT ALL HYDR.- C-FRAME - OPTIONAL CODE 784180031(01) - 784181041(02) - 784181051(03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
882 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4. | 78100066 | [4] | HYD CONNECTOR | LEC- ASSY 16-A90° |
| 7. | 70930357 | [2] | O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro | LEC Superseded by part number: 9992069 |
| 9. | 76076546 | [1] | FLEXIBLE HOSE | LEC |
| 10. | 78100053 | [2] | HYD CONNECTOR | LEC- ASSY |
| 11. | 76054861 | [2] | HYD CONNECTOR | LEC |
| 12. | 76054862 | [2] | FLEXIBLE HOSE | LEC |
| 13. | 76076547 | [1] | FLEXIBLE HOSE | LEC |
| 19. | 70923841 | [6] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | LEC Superseded by part number: 9992298 |
| 20. | 78100136 | [2] | PLUG | LEC16 |
