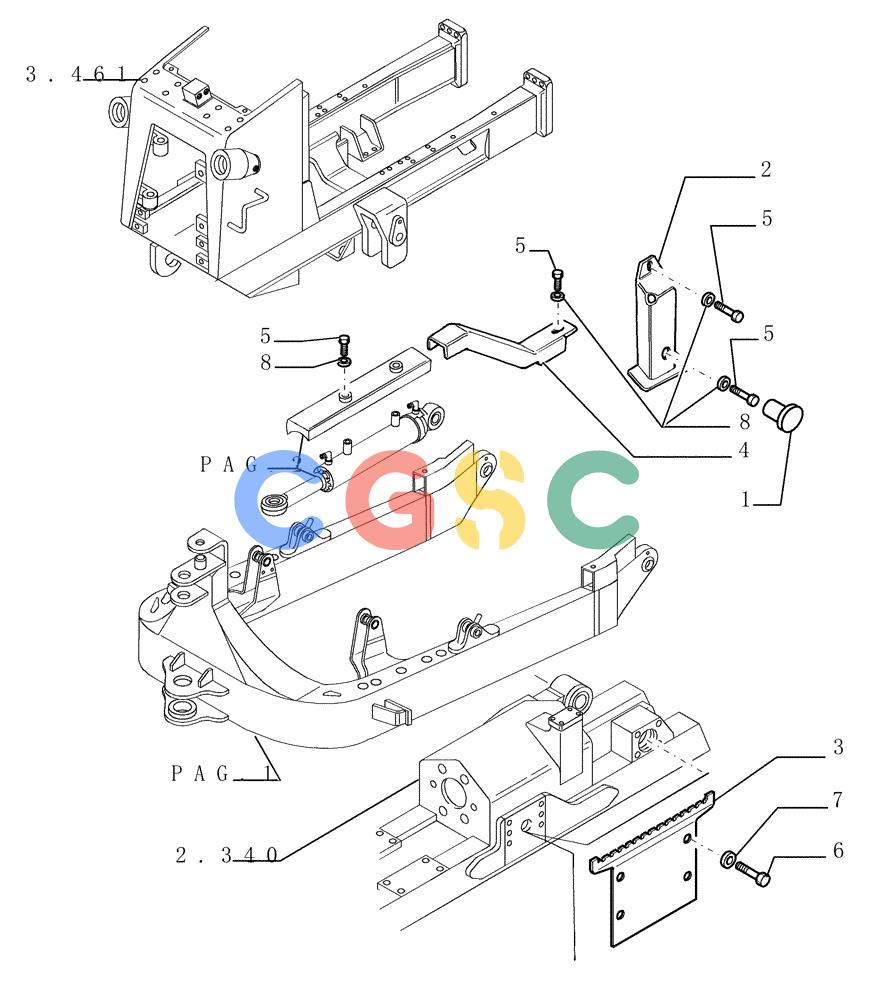

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.440[07A]) - FRONT IMPLEMENT ALL HYDR.- C-FRAME - 7R - OPTIONAL CODE 784181041 - 784181051 - VERSION (02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
936 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 14507987 | [2] | PLUG,35mm | LECB-35 |
| 2. | 76089281 | [2] | GUARD | LEC Superseded by part number: 76054888 |
| 3. | 76089283 | [2] | LADDER | LEC Superseded by part number: 76073299 |
| 4. | 76089417 | [2] | GUARD | LEC Superseded by part number: 76069544 |
| 5. | 11114031 | [2] | BOLT,Hex, M12 x 90, 10.9 | LEC Superseded by part number: 412605 |
| 6. | 15983831 | [8] | BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9 | LEC |
| 7. | 14497031 | [8] | WASHER,M18 x 34 | LEC |
| 8. | 14496731 | [6] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
