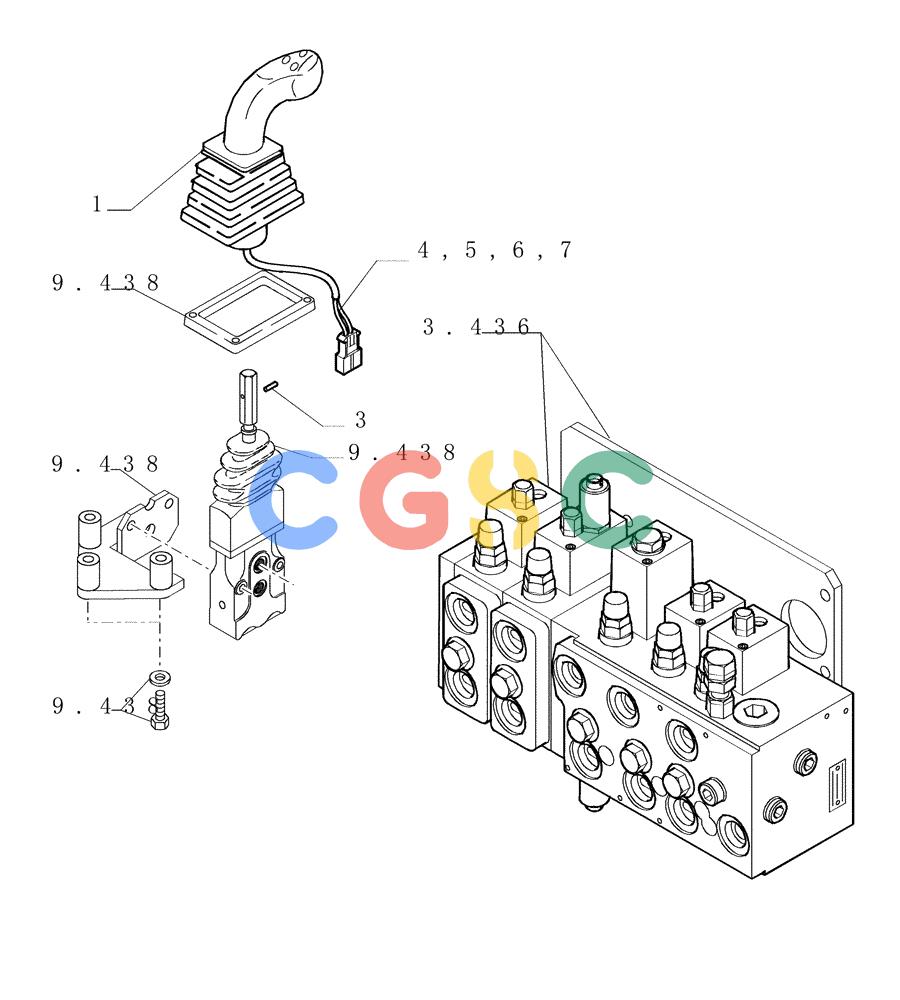

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.440[08]) - FRONT IMPLEMENT ALL HYDR.- C-FRAME - OPTIONAL CODE 784180031(01) - 784181041(02) - 784181051(03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
711 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76075175 | [1] | HANDLE GRIP | LEC- ASSY |
| 2. | 76075430 | [1] | - ASSY | |
| 3. | 14601271 | [1] | ROLL PIN | LEC5X28 Superseded by part number: 14601270 |
| 4. | 12331187 | [2] | MULTIPOLE CONNECTOR,Male | LEC |
| 5. | 12330244 | [4] | CABLE TERMINAL | LEC |
| 6. | 12330383 | [4] | SEAL | LEC |
| 7. | 12417487 | [2] | CABLE TERMINAL | LEC |
