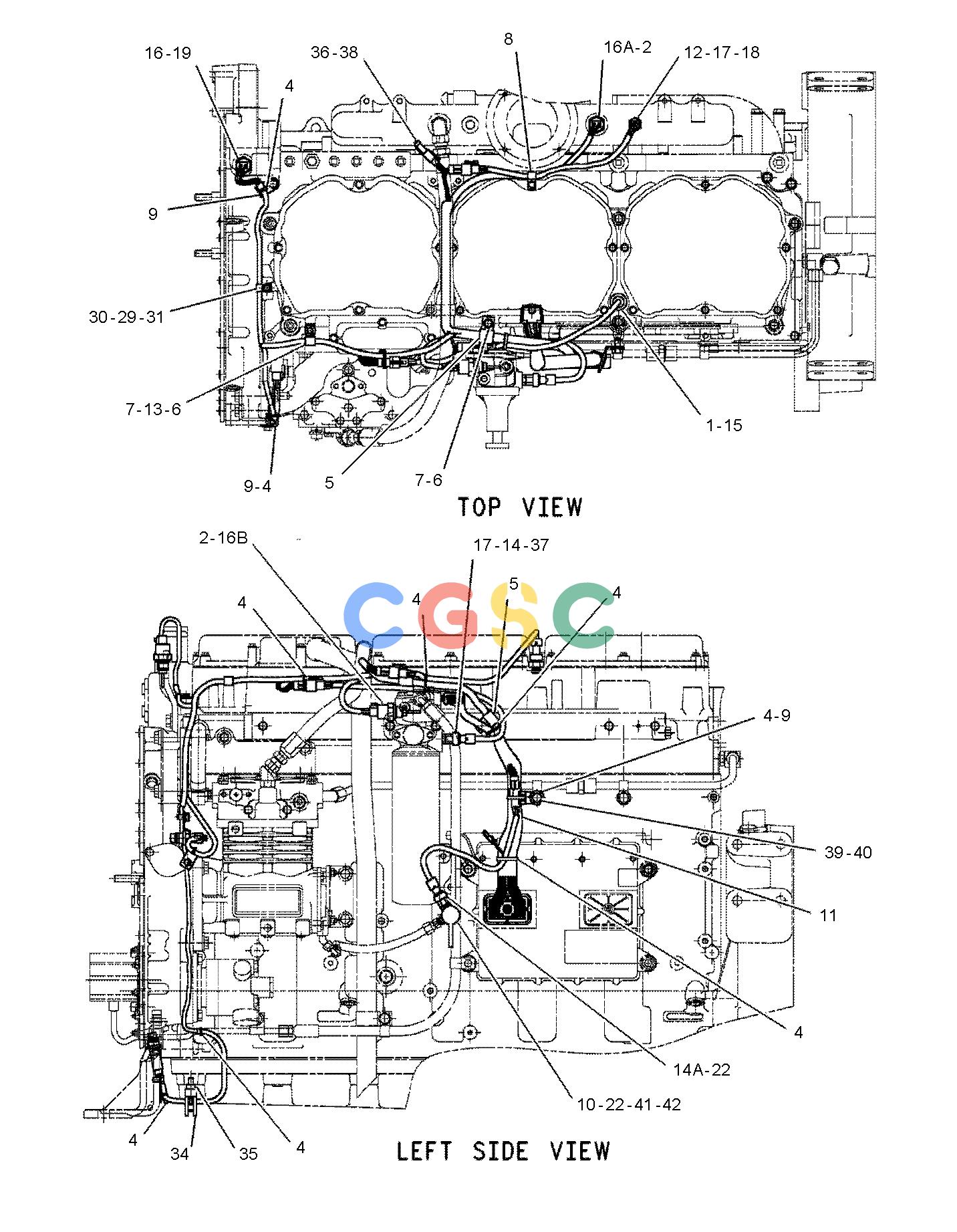

卡特零件查询（725） 197-6913: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
942 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 194-6722Y | [1] | SENSOR GP-PRESSURE(ATMOSPHERIC) | |
| 2. | 8L-2786 | [2] | SEAL-O-RING | |
| 4. | 3S-2093 | [10] | STRAP-CABLE | |
| 5. | 4K-8864 | [2] | CLIP(LOOP) | |
| 6. | 6V-8214M | [2] | BOLT(M6X1X20-MM) | |
| 7. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| 8. | 8J-1256 | [1] | CLIP(LOOP) | |
| 9. | 4P-8134 | [3] | CLIP(LADDER) | |
| 10. | | [1] | ELBOW |
| 11. | 171-1108 | [1] | HARNESS AS-CONTROL(ENGINE ELECTRONIC) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 160-7690 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 159-9322 | [1] | SEAL-O-RING | |
| 12. | 194-6724Y | [1] | SENSOR GP-PRESSURE(BOOST) | |
| 13. | 8M-2770 | [1] | CLIP(LOOP) | |
| 14. | 194-6725Y | [1] | SENSOR GP-PRESSURE(FUEL) | |
| 14A. | 194-6725Y | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 15. | 6V-5049 | [2] | SEAL-O-RING | |
| 16. | 130-9811 | [1] | SENSOR GP-TEMPERATURE(COOLANT) | |
| 16A. | 130-9811 | [1] | SENSOR GP-TEMPERATURE(INLET MANIFOLD) | |
| 16B. | 130-9811 | [1] | SENSOR GP-TEMPERATURE(FUEL) | |
| 17. | 3J-7354 | [3] | SEAL-O-RING | |
| 18. | 3E-7448 | [1] | CONNECTOR | |
| 19. | 6V-6609 | [1] | SEAL-O-RING | |
| 20. | 194-5340 | [1] | SENSOR GP-SPEED | |
| 21. | 4P-5918 | [1] | CLIP | |
| 22. | 6V-5048 | [2] | SEAL-O-RING | |
| 23. | 6V-5215M | [2] | BOLT(M8X1.25X16-MM) | |
| 24. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 25. | 8T-0642M | [1] | BOLT(M8X1.25X14-MM) | |
| 26. | 117-1385 | [2] | SEAL-O-RING | |
| 27. | 194-5338 | [1] | SENSOR GP-SPEED | |
| 28. | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 29. | 8M-2771 | [1] | CLIP | |
| 30. | 6V-8837M | [1] | BOLT(M6X1X16-MM) | |
| 31. | 9X-8267 | [1] | WASHER(6.6X12X2-MM THK) | |
| 32. | 6V-7981M | [1] | BOLT(M10X1.5X70-MM) | |
| 33. | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| 34. | 132-5789 | [1] | CLIP(LADDER) | |
| 35. | 2M-7077 | [1] | SPACER(0.406X0.62X0.37-IN THK) | |
| 36. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| 37. | 9X-0262 | [1] | ADAPTER | |
| 38. | 8T-8737 | [2] | PLUG-SEAL | |
| 39. | 6V-6317M | [1] | BOLT(M10X1.5X20-MM) | |
| 40. | 3E-4353 | [1] | WASHER-HARD(11X25X3-MM THK) | |
| 41. | 110-6349 | [1] | FITTING AS(QUICK DISCONNECT) | |
| 42. | 6V-0852 | [1] | CAP-DUST | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
