纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.467[03]) - PUSHBEAMS AND STRUTS (HSU) - CYLINDER - OPTIONAL CODE 774186021 - VERSION (04) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
131 次

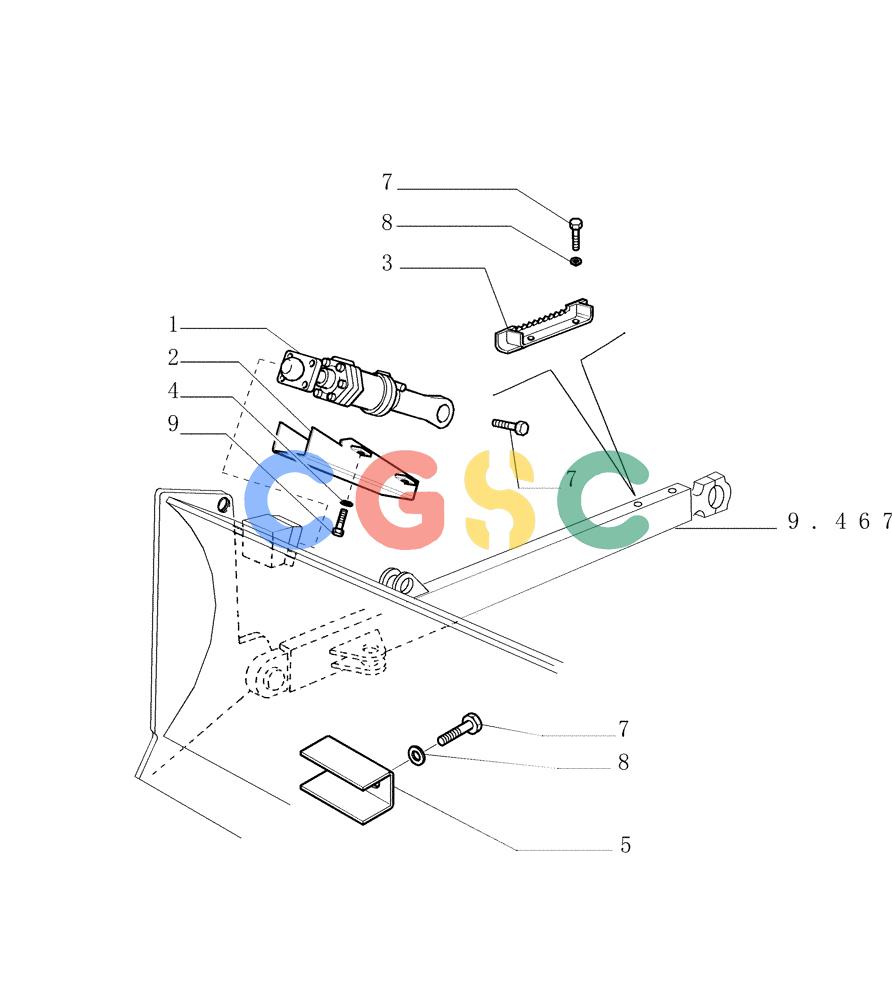

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76089486 | [1] | OPERATING CYLINDER | LEC- ASSY SEE PAG.5 Superseded by part number: 76041029 |
| 2. | 76089487 | [1] | GUARD | LEC Superseded by part number: 76068479 |
| 3. | 76089488 | [2] | FOOTREST | LEC |
| 4. | 14496631 | [6] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 5. | 76089489 | [1] | GUARD | LEC Superseded by part number: 76066188 |
| 7. | 11112431 | [6] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 8. | 12648531 | [18] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 9. | 11106031 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
