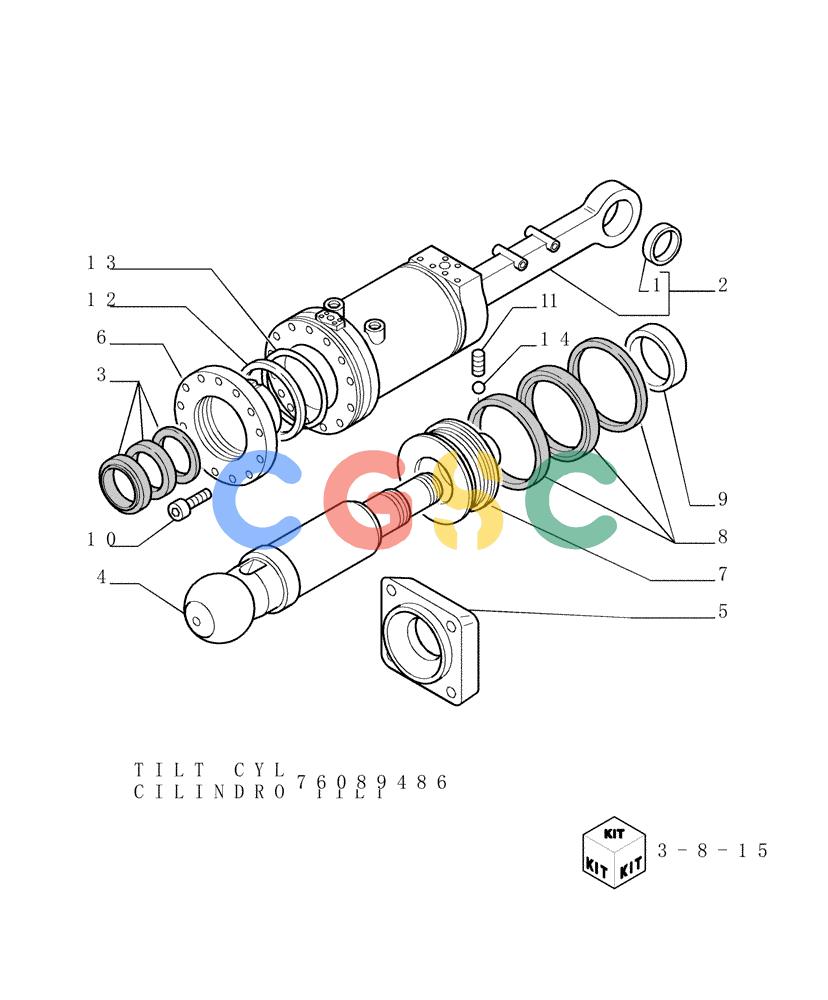

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.467[05]) - TILT CYLINDER - OPTIONAL CODE 774186021 - VERSION (04) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
301 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8295620 | [1] | BUSHING,60.2mm ID x 72mm OD x 45mm L | LEC |
| 2. | 76089493 | [1] | BARREL | LEC Superseded by part number: 76041930 |
| 3. | 79071464 | [1] | SEAL | LEC- HYDRAULIC CYL. SEALS |
| 4. | 76041931 | [1] | TIE-ROD | LEC |
| 5. | 76089479 | [1] | SUPPORT | LEC Superseded by part number: 76000805 |
| 6. | 76089494 | [1] | CYLINDER HEAD | LEC Superseded by part number: 76041932 |
| 7. | 76041934 | [1] | PISTON | LEC |
| 8. | 79099850 | [1] | SET OF PARTS | LEC- HYDRAULIC CYL.SEALS |
| 9. | 76041933 | [1] | RING | LEC Superseded by part number: 76053660, 76053660, 76053661 |
| 10. | 14420471 | [13] | HEX SOC SCREW,M10 x 1.5 x 40mm, Cl 12.9 | LEC Superseded by part number: 14420474 |
| 11. | 76041935 | [1] | SCREW | LEC |
| 12. | 79023161 | [1] | RING | LEC Superseded by part number: 79076122 |
| 13. | 14473280 | [1] | O-RING,0.21" Thk x 4.475" ID, -349, Cl 5, 75 Duro | LEC(M113.66 ID x 5.33 Thk) Superseded by part number: 70923601 |
| 14. | 76041936 | [1] | BALL | LEC |
| 15. | 76053661 | [1] | SEAL KIT | LEC |
