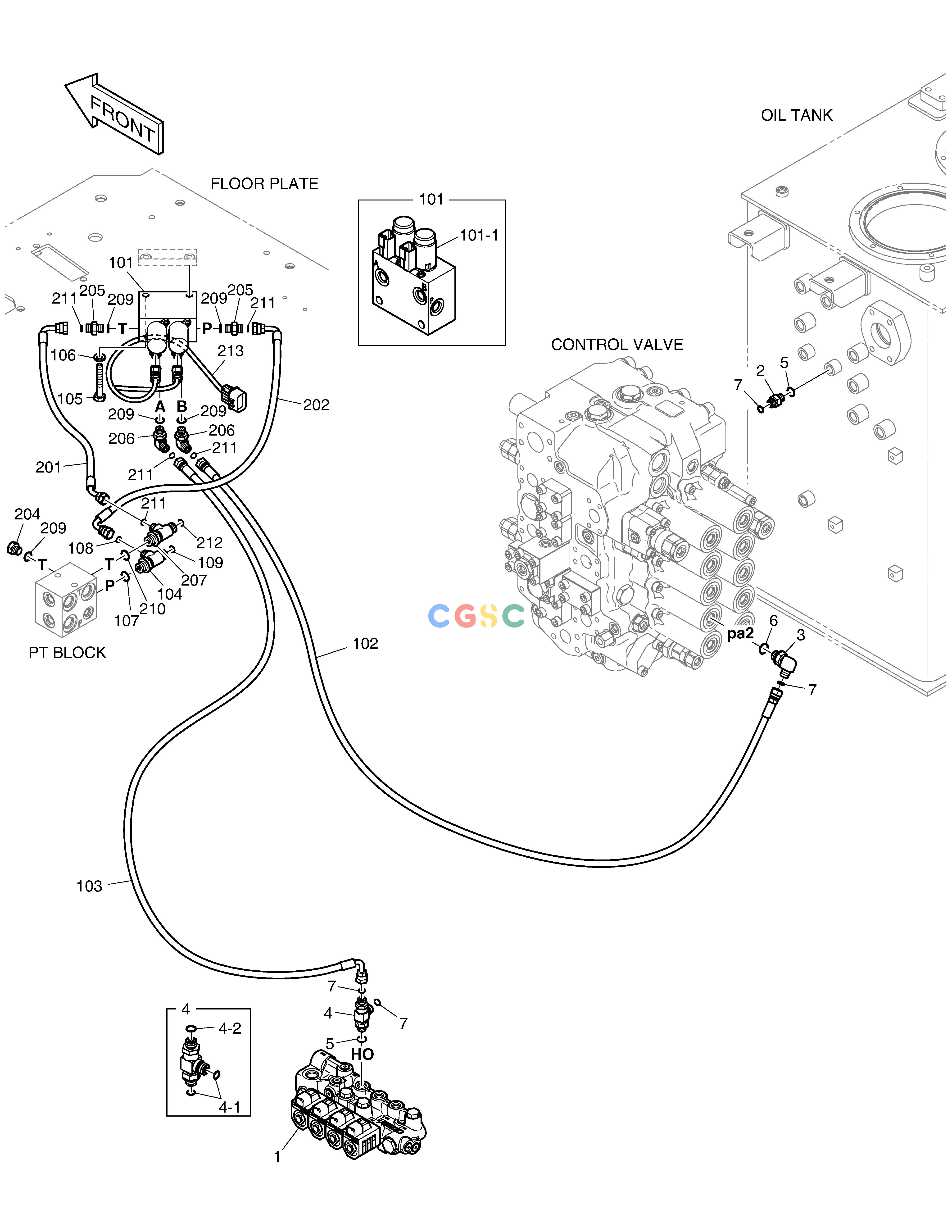

斗山零件查询PILOT PIPING - TWO WAY DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
255 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09232
|
[-] |
|
|
| 1. |
410135-00236A
|
[1] |
|
|
| 101. |
410116-00091
|
[1] |
|
|
| 101-1. |
410116-00418
|
[2] |
|
|
| 102. |
DS2121192
|
[1] |
|
|
| 103. |
DS2119188
|
[1] |
|
|
| 104. |
DS2412004
|
[1] |
|
|
| 105. |
S0558866
|
[2] |
BOLT
|
|
| 106. |
S5102603
|
[2] |
. WASHER
|
|
| 107. |
S8000141
|
[1] |
O-RING
|
|
| 108. |
S8030041
|
[1] |
O-RING
|
|
| 109. |
S8030061
|
[1] |
O-RING
|
|
| 2. |
DS2232018
|
[1] |
|
|
| 201. |
DS2122039
|
[1] |
|
|
| 202. |
DS2123003
|
[1] |
|
|
| 204. |
2181-1950D1
|
[1] |
PLUG
|
|
| 205. |
DS2232018
|
[2] |
|
|
| 206. |
DS2304009
|
[2] |
ELBOW
|
|
| 207. |
DS2412004
|
[1] |
|
|
| 209. |
S8000111
|
[5] |
O-RING
|
|
| 210. |
S8000141
|
[1] |
O-RING
|
|
| 211. |
S8030041
|
[5] |
O-RING
|
|
| 212. |
S8030061
|
[1] |
O-RING
|
|
| 213. |
310207-03577A
|
[1] |
|
|
| 3. |
DS2304016
|
[1] |
|
|
| 4. |
410134-00032
|
[1] |
|
|
| 4-1. |
2180-1217D11
|
[2] |
O-RING
|
|
| 4-2. |
S8000111
|
[1] |
O-RING
|
|
| 5. |
S8000111
|
[2] |
O-RING
|
|
| 6. |
S8000141
|
[1] |
O-RING
|
|
| 7. |
S8030041
|
[4] |
O-RING
|
|
