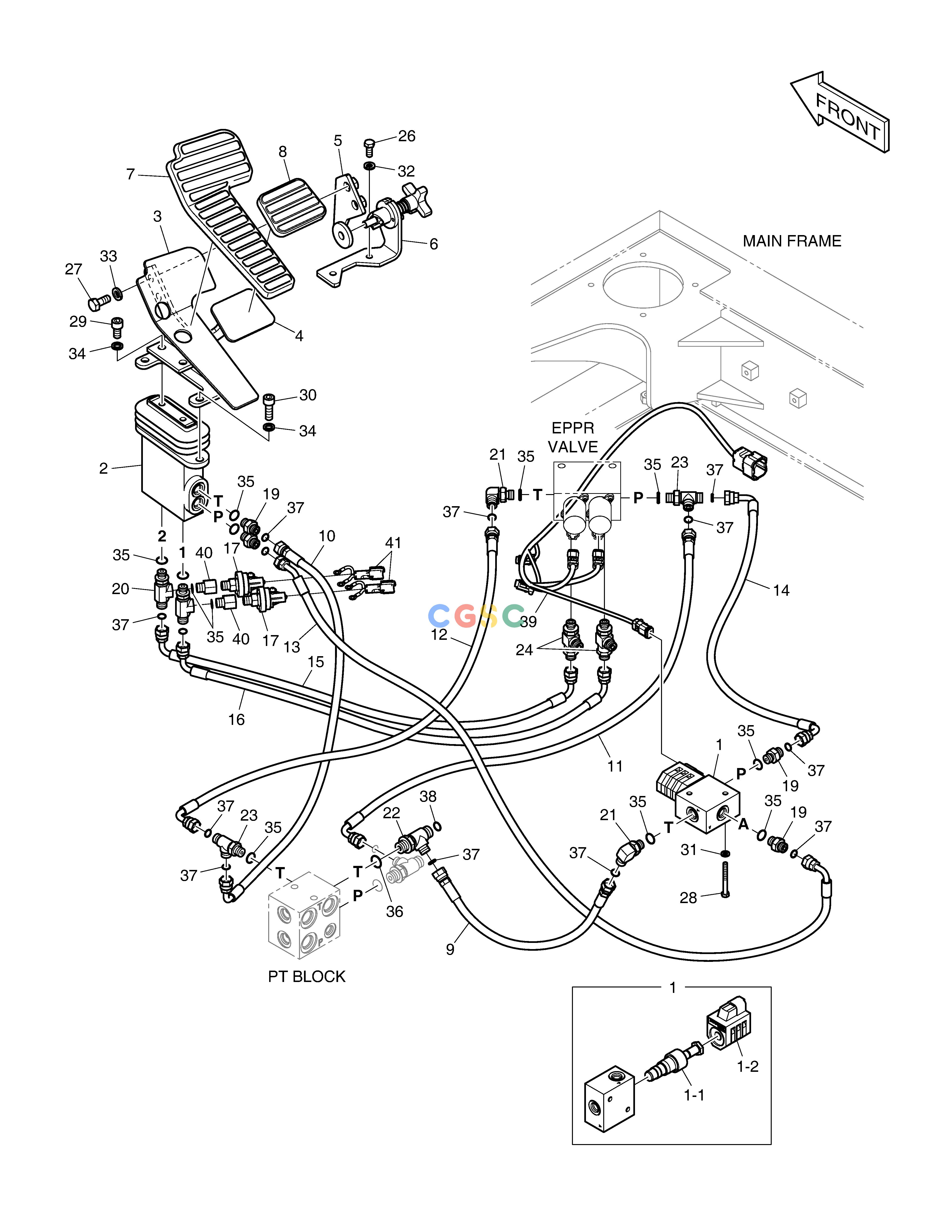

斗山零件查询PILOT PIPING - TWO WAY(WITH PEDAL) DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
708 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-10493N
|
[-] |
|
|
| -. |
420212-10493P
|
[-] |
|
|
| 1. |
410135-00239
|
[1] |
|
|
| 1-1. |
410207-00145
|
[1] |
SPOOL,SOLENOID
|
|
| 1-2. |
300715-00038
|
[1] |
COIL 24V
|
|
| 10. |
DS2121123
|
[1] |
|
|
| 11. |
DS2121138
|
[1] |
|
|
| 12. |
DS2121146
|
[1] |
|
|
| 13. |
DS2122094
|
[1] |
|
|
| 14. |
DS2123127
|
[1] |
|
|
| 15. |
DS2123237
|
[1] |
|
|
| 16. |
DS2123236
|
[1] |
|
|
| 17. |
549-00010
|
[2] |
SWITCH;PRESSURE
|
|
| 19. |
DS2232018
|
[4] |
|
|
| 2. |
410119-00012
|
[1] |
|
|
| 20. |
430201-00129
|
[2] |
ADAPTER
|
|
| 21. |
DS2304009
|
[2] |
ELBOW
|
|
| 22. |
181-00121D4
|
[1] |
TEE
|
DS2412004
|
| 22. |
DS2412004
|
[1] |
|
|
| 23. |
DS2412001
|
[2] |
|
|
| 24. |
410134-00032
|
[2] |
|
|
| 26. |
S0508866
|
[2] |
BOLT
|
|
| 27. |
S0512066
|
[2] |
. BOLT
|
|
| 28. |
S0553766
|
[2] |
BOLT
|
|
| 29. |
S2211866
|
[2] |
BOLT
|
|
| 3. |
110435-00048
|
[1] |
|
|
| 30. |
S2212266
|
[2] |
BOLT
|
|
| 31. |
S5102303
|
[2] |
. WASHER
|
|
| 32. |
S5102503
|
[2] |
. WASHER
|
|
| 33. |
S5102603
|
[2] |
. WASHER
|
|
| 34. |
S5110603
|
[4] |
WASHER
|
|
| 35. |
S8000111
|
[12] |
O-RING
|
|
| 36. |
S8000141
|
[1] |
O-RING
|
|
| 37. |
S8030041
|
[13] |
O-RING
|
|
| 38. |
S8030061
|
[1] |
O-RING
|
|
| 39. |
310207-03521A
|
[1] |
|
|
| 4. |
K1003947A
|
[1] |
FOOT REST
|
|
| 40. |
DS2242028
|
[2] |
REDUCER
|
|
| 41. |
310207-03138
|
[2] |
|
|
| 5. |
250201-02905
|
[1] |
|
|
| 6. |
101544-00102
|
[1] |
LOCK
|
|
| 7. |
161-00381
|
[1] |
RUBBER,PEDAL(R.H)
|
|
| 8. |
K1006656
|
[1] |
RUBBER,PEDAL
|
|
| 9. |
DS2119231
|
[1] |
|
|
