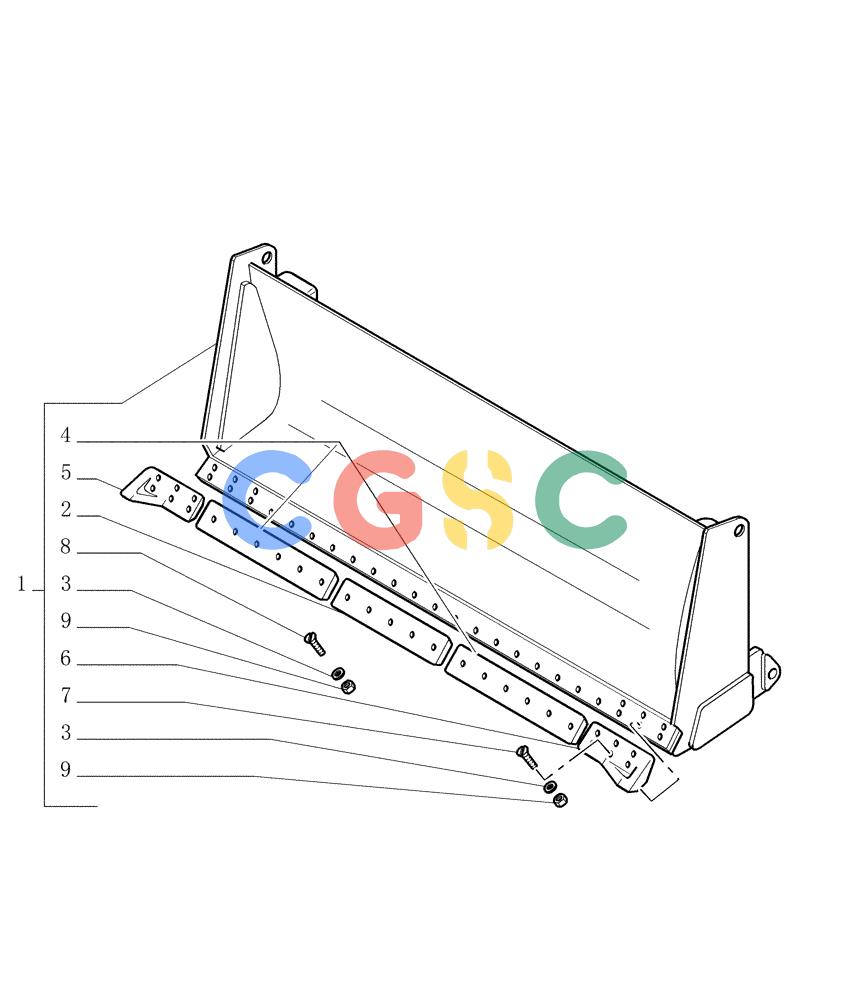

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.469[01]) - STRAIGHT MOLDBOARD (HS) - OPTIONAL CODE 774187021 - VERSION (04) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
276 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76089495 | [1] | DOZER BLADE | LECASSY Superseded by part number: 76066187 |
| 2. | 76089497 | [1] | CUTTING EDGE | LEC- CENTER Superseded by part number: 76005429 |
| 3. | 14497131 | [27] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 4. | 76090503 | [2] | CUTTING EDGE | LEC Superseded by part number: 76066186 |
| 5. | 76089498 | [1] | CUTTING EDGE | LEC- RIGHT Superseded by part number: 76015476 |
| 6. | 76089499 | [1] | CUTTING EDGE | LEC- LEFT Superseded by part number: 76015477 |
| 7. | 8282270 | [12] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC |
| 8. | 8273211 | [15] | PLOW BOLT,Plow, M20 x 1.5 x 62mm, Cl 10.9 | LEC |
| 9. | 86015195 | [27] | NUT,M20 x 1.5, Cl 10 | RAC |
