神钢零件查询(6D22-TC) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (04-001) - STARTER GENERAL 050-110A Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
321 次

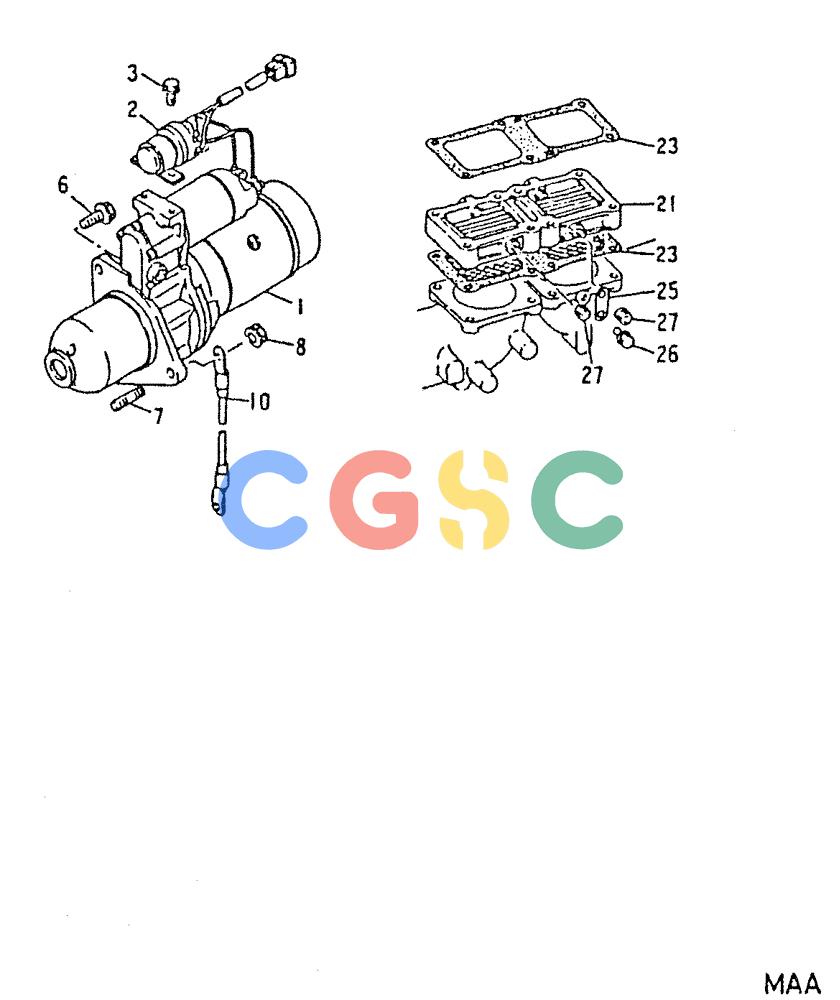

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3096603010 | [1] | STARTER MOTOR | KOBSTARTER ASSY, MEC, 24V-6.0KW, Serial Range: GN050-GN111B |
| 2. | VA3096600091 | [1] | RELAY | KOBSTARTER, MEC Superseded by part number: 135062A1 |
| 3. | VAMF140005 | [2] | BOLT | KOBBOLT, FLANGE 6X16 |
| 6. | VAMH000923 | [2] | BOLT | KOBBOLT, FLANGE 12X35 |
| 7. | VAMF407035 | [1] | STUD | KOBSTUD 12X35 |
| 8. | VAMF434106 | [1] | NUT | KOBNUT, FLANGE 12 Superseded by part number: 135085A1 |
| 10. | VA0304450401 | [1] | STRAP | KOB |
| 21. | VAME067539 | [1] | HEATER ASSY. | KOB Superseded by part number: 135029A1 |
| 23. | VAME057663 | [1] | GASKET | KOBHEATER Superseded by part number: 135030A1 |
| . . | VAME057741 | [1] | CYLINDER HEAD GASKET | KOBW/NET |
| 25. | VAME057329 | [1] | PLATE | KOBEARTH Superseded by part number: 135032A1 |
| 26. | VAMF140020 | [1] | FLANGE BOLT | SMBOLT, FLANGE 8X10 |
| 27. | VAMF434103 | [2] | NUT | KOBNUT, FLANGE 6 |
