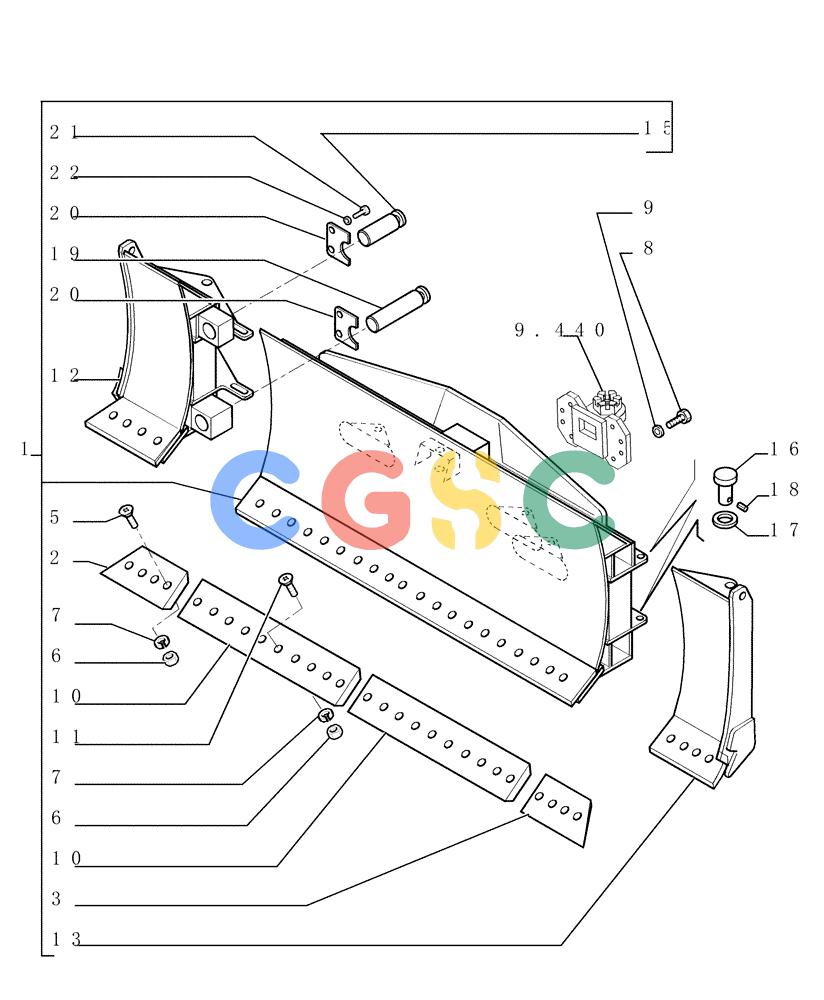

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.481[01]) - FOLDABLE PAT LGP BLADE - OPTIONAL CODE 774269021 - VERSION (03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
545 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76093770 | [1] | DOZER BLADE | LEC- ASSY |
| 2. | 76089465 | [1] | CUTTING EDGE | LEC- RIGHT Superseded by part number: 76071103 |
| 3. | 76089464 | [1] | CUTTING EDGE | LEC- LEFT Superseded by part number: 76071104 |
| 4. | 76093830 | [1] | | |
| 5. | 8282270 | [8] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC |
| 6. | 86015195 | [28] | NUT,M20 x 1.5, Cl 10 | RAC |
| 7. | 14497131 | [28] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 8. | 627-16045 | [8] | BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd | CASM6X50 Superseded by part number: 86508624 |
| 9. | 79005240 | [8] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC16X35,5X8 |
| 10. | 76089466 | [2] | CUTTING EDGE | LEC- CENTRAL Superseded by part number: 76072357 |
| 11. | 8273211 | [20] | PLOW BOLT,Plow, M20 x 1.5 x 62mm, Cl 10.9 | LEC |
| 12. | 76079096 | [1] | KNIFE BLADE | LEC- RIGHT |
| 13. | 76079097 | [1] | KNIFE BLADE | LEC- LEFT |
| 15. | 76079150 | [2] | PIN | LEC- UPPER |
| 16. | 76079151 | [4] | PIN | LEC |
| 17. | 76073125 | [4] | THRUST WASHER | LEC |
| 18. | 14604770 | [4] | PIN,6mm OD x 55mm L, Slotted | MKT |
| 19. | 76073124 | [2] | PIN | LEC- LOWER |
| 20. | 76033228 | [4] | COVER PLATE | LEC |
| 21. | 11112231 | [8] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 22. | 14496731 | [8] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
