沃尔沃零件查询D11B3-A MP; D11B4-A MPEngineCrank MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
483 次

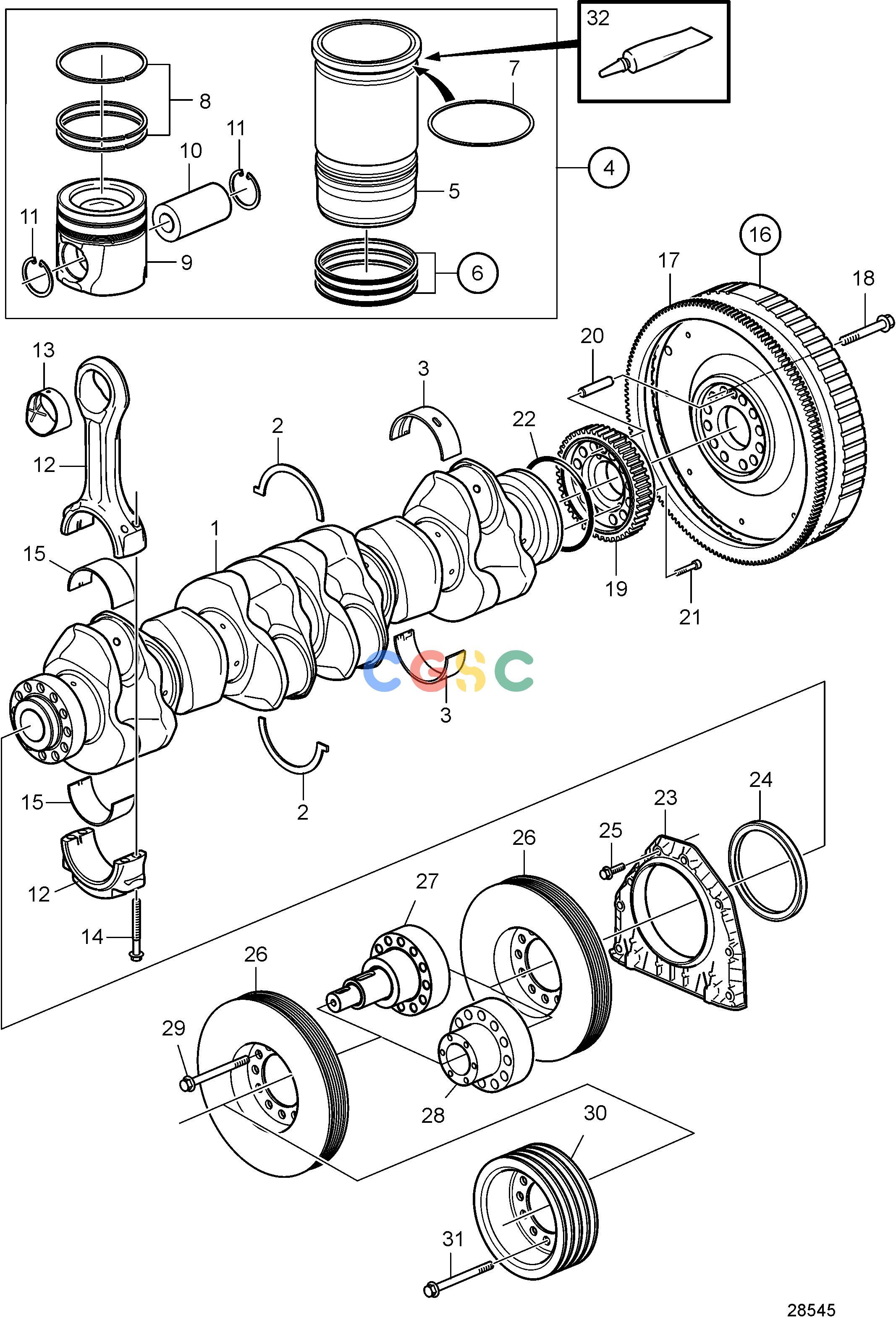

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22548873
|
[1] |
Crankshaft
|
|
| 2. |
21948261
|
[1] |
Thrust washer
|
Std
|
| 2. |
21948264
|
[1] |
Thrust washer kit
|
O.S=0,1mm
|
| 2. |
3093653
|
[1] |
Thrust washer kit
|
O.S=0,20mm
|
| 2. |
3093654
|
[1] |
Thrust washer
|
O.S=0,30mm
|
| 3. |
20867178
|
[7] |
Main bearing kit
|
Std
|
| 3. |
20867751
|
[7] |
Main bearing
|
O.S=0,25mm
|
| 3. |
20867757
|
[7] |
Main bearing kit
|
O.S=0,50mm
|
| 3. |
20867761
|
[7] |
Main bearing kit
|
O.D=1,0mm
|
| 4. |
22494097
|
[6] |
Cylinder liner kit
|
|
| 5. |
|
|
|
|
| 6. |
85103699
|
[1] |
Gasket kit
|
|
| 6. |
|
|
|
Upper
|
| 7. |
20463853
|
[1] |
Shim
|
TH=0,2mm
|
| 7. |
20463854
|
[1] |
Shim
|
TH=0,3mm
|
| 7. |
20463855
|
[1] |
Shim
|
TH=0,5mm
|
| 8. |
22493940
|
[1] |
Piston ring kit
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
22431343
|
[1] |
Gudgeon pin
|
|
| 11. |
21723152
|
[2] |
Snap ring
|
|
| 12. |
22548804
|
[6] |
Connecting rod
|
|
| 13. |
|
|
|
|
| 14. |
20480811
|
[24] |
Flange screw
|
|
| 15. |
20856959
|
[6] |
Big-end bearing kit
|
Std
|
| 16. |
21849939
|
[1] |
Flywheel
|
|
| 17. |
3838729
|
[1] |
Gear ring
|
|
| 18. |
984818
|
[12] |
Flange screw
|
|
| 19. |
21663213
|
[1] |
Gear
|
|
| 20. |
950658
|
[1] |
Pin
|
|
| 21. |
941761
|
[2] |
Hex. socket screw
|
|
| 22. |
949736
|
[1] |
O-ring
|
|
| 23. |
21054681
|
[1] |
Cover
|
SN-7011385240
|
| 23. |
20777236
|
[1] |
Cover
|
|
| 24. |
21347087
|
[1] |
Crankshaft seal
|
SN-7011385240
|
| 24. |
21779548
|
[1] |
Crankshaft seal
|
SN7011385241-
|
| 25. |
984736
|
[8] |
Flange screw
|
|
| 26. |
3847678
|
[2] |
Vibration damper
|
|
| 27. |
3586634
|
[1] |
Spacer ring
|
|
| 28. |
3809301
|
[1] |
Stub axle
|
Connections/PTO stubbshaft
|
| 29. |
984818
|
[12] |
Flange screw
|
Std
|
| 30. |
3829173
|
[1] |
Pulley
|
PTO/Front pulley HC50
|
| 31. |
984826
|
[12] |
Flange screw
|
PTO/Front pulley HC50
|
| 32. |
1161231
|
[1] |
Sealant
|
304ml
|
| 32. |
1161277
|
[1] |
Sealant
|
20g
|
