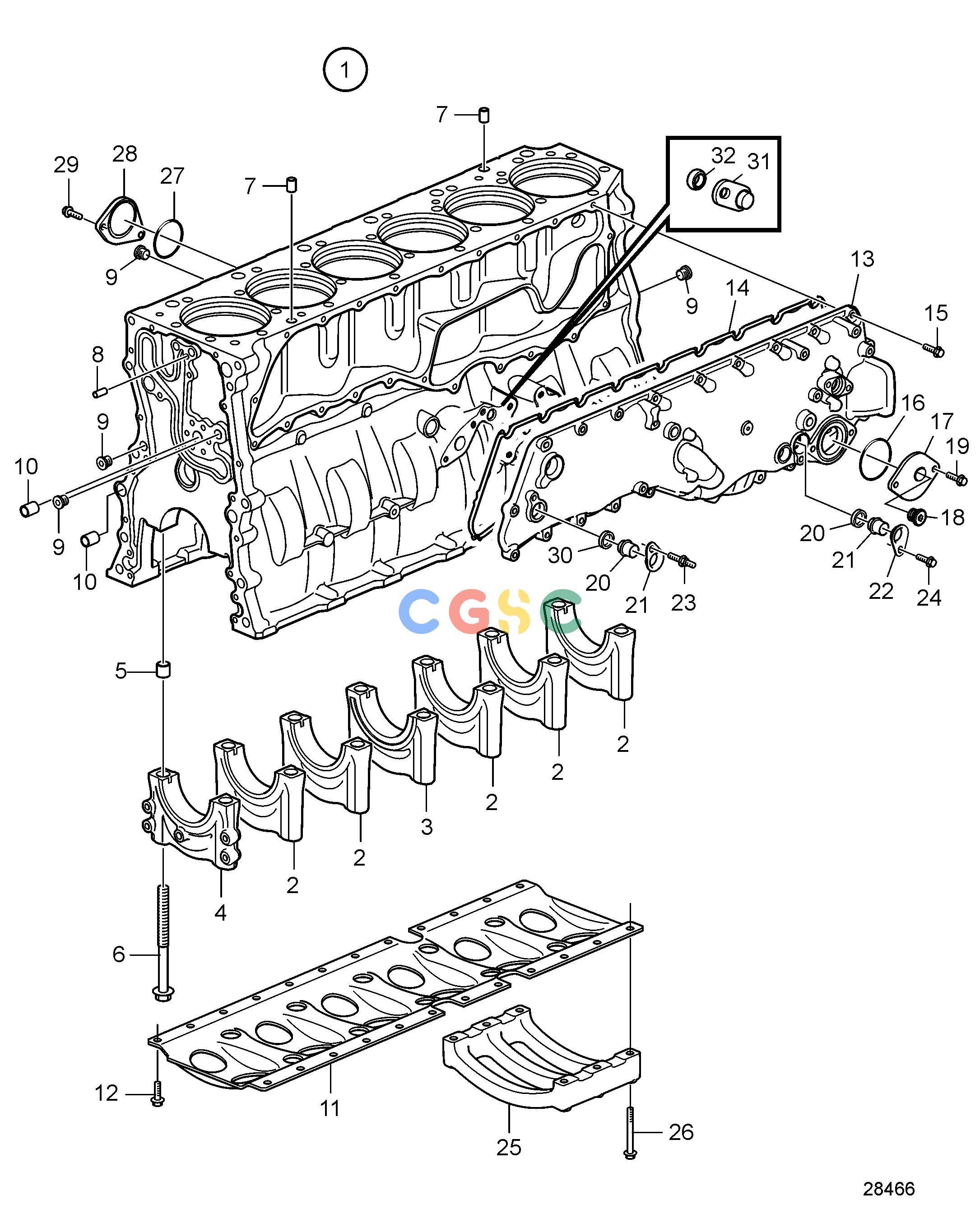

沃尔沃零件查询D11B3-A MP; D11B4-A MPEngineCylinder BlockEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
209 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21428017
|
[1] |
Cylinder block
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
21345129
|
[14] |
Flange screw
|
|
| 7. |
20485996
|
[2] |
Pin
|
|
| 8. |
950588
|
[1] |
Pin
|
|
| 9. |
984793
|
[4] |
Plug
|
|
| 10. |
8131145
|
[2] |
Guide sleeve
|
|
| 11. |
21971224
|
[1] |
Frame reinforcement
|
|
| 12. |
984755
|
[8] |
Flange screw
|
|
| 13. |
21447015
|
[1] |
Cover
|
|
| 14. |
20584639
|
[1] |
Sealing strip
|
|
| 15. |
984736
|
[22] |
Flange screw
|
|
| 16. |
975675
|
[1] |
O-ring
|
|
| 17. |
3818686
|
[1] |
Cover
|
|
| 18. |
479956
|
[1] |
Plug
|
|
| 19. |
984735
|
[2] |
Flange screw
|
|
| 20. |
1547252
|
[2] |
Sealing ring
|
|
| 21. |
20845995
|
[2] |
Plug
|
|
| 22. |
20718731
|
[2] |
Yoke
|
|
| 23. |
20714050
|
[1] |
Flange screw
|
|
| 24. |
984735
|
[1] |
Flange screw
|
|
| 25. |
3836277
|
[1] |
Reinforcement
|
|
| 26. |
975103
|
[6] |
Flange screw
|
|
| 27. |
949660
|
[1] |
O-ring
|
|
| 28. |
3884277
|
[1] |
Cover
|
|
| 29. |
984734
|
[1] |
Flange screw
|
|
| 30. |
21940615
|
[1] |
Sealing ring
|
|
| 31. |
22316718
|
[1] |
Plug
|
|
| 32. |
21940610
|
[1] |
Sealing ring
|
|
