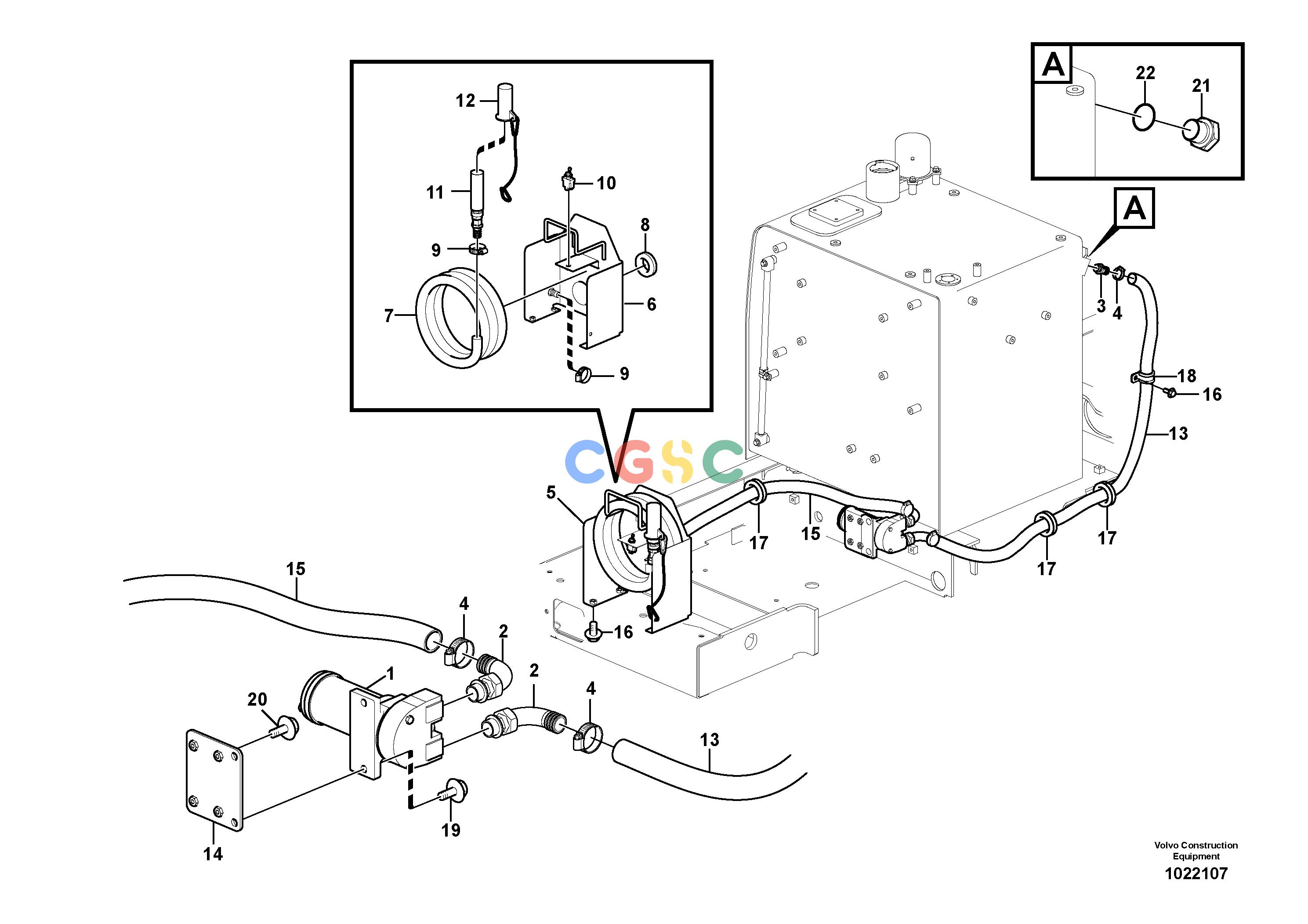

沃尔沃零件查询EC235C Fuel filling pump with assembling detailsS/N 120001-1201068279773-8282062NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
375 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14539462
|
|
Refuelling pump
|
|
| 2. |
VOE14517748
|
|
Adapter
|
|
| 3. |
VOE14517747
|
|
Adapter
|
|
| 4. |
VOE14517754
|
|
Clip
|
|
| 5. |
VOE14549843
|
|
Hose assembly
|
|
| 6. |
VOE14549844
|
|
Bracket
|
|
| 7. |
VOE14539109
|
|
Hose
|
|
| 8. |
VOE14529352
|
|
Grommet
|
|
| 9. |
VOE14517754
|
|
Clip
|
|
| 10. |
VOE14539456
|
|
Toggle switch
|
|
| 11. |
VOE14517753
|
|
Valve
|
|
| 12. |
VOE14539459
|
|
Cover
|
|
| 13. |
VOE14550492
|
|
Hose
|
|
| 14. |
VOE14539108
|
|
Bracket
|
|
| 15. |
VOE14557007
|
|
Hose
|
|
| 16. |
VOE946471
|
|
Flange screw
|
|
| 17. |
SA9751-15016
|
|
Grommet
|
|
| 18. |
VOE14500297
|
|
Clip
|
|
| 19. |
VOE946441
|
|
Flange screw
|
|
| 20. |
VOE946544
|
|
Flange screw
|
|
| 21. |
VOE14515173
|
[1] |
Plug
|
|
| 22. |
VOE13947629
|
[1] |
Plane gasket
|
|
