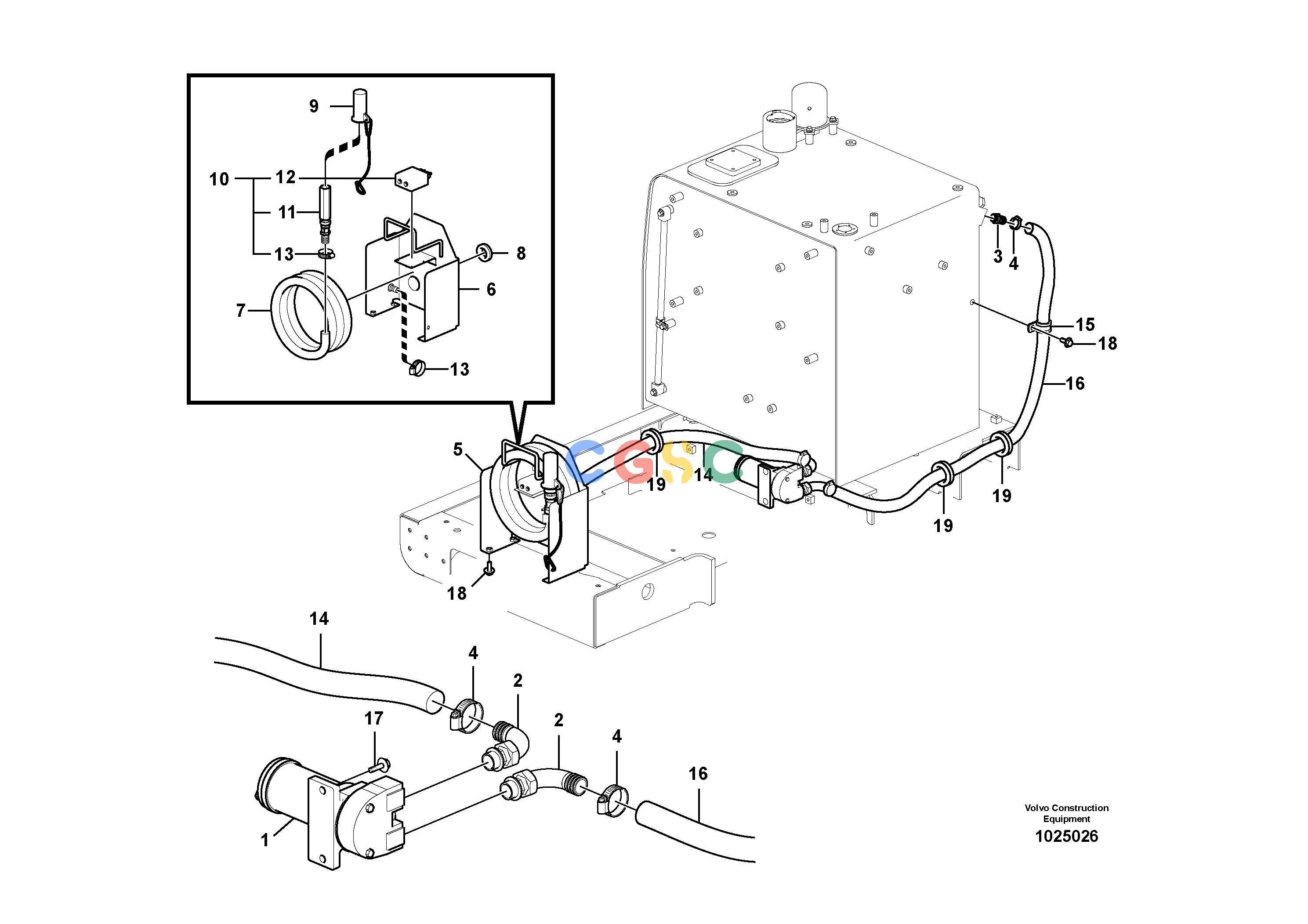

沃尔沃零件查询EC235C Fuel filling pump with assembling detailsS/N 120001-1201068280228-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1019 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14572797
|
[1] |
Refuelling pump
|
|
| |
VOE14539949
|
[1] |
Refuelling pump
|
|
| 2. |
VOE14529318
|
[2] |
Adapter
|
|
| 3. |
VOE14529317
|
[1] |
Adapter
|
|
| 4. |
VOE14517655
|
[3] |
Clip
|
|
| 5. |
|
[1] |
Hose assembly
|
|
| 6. |
|
[1] |
Bracket
|
|
| 7. |
VOE14536920
|
[1] |
Hose
|
|
| 8. |
VOE14529352
|
[1] |
Grommet
|
|
| 9. |
VOE14539459
|
[1] |
Cover
|
|
| 10. |
VOE14592045
|
[1] |
Valve
|
|
| 11. |
VOE11710987
|
[1] |
Valve
|
|
| 12. |
VOE14536924
|
[1] |
Switch
|
|
| 13. |
VOE14517655
|
[2] |
Clip
|
|
| 14. |
VOE14536922
|
[1] |
Hose
|
|
| 15. |
VOE14500298
|
[1] |
Clip
|
|
| 16. |
VOE14536928
|
[1] |
Hose
|
|
| 17. |
VOE946329
|
[2] |
Flange screw
|
|
| 18. |
VOE946471
|
[5] |
Flange screw
|
|
| 19. |
SA9751-15016
|
[3] |
Grommet
|
|
