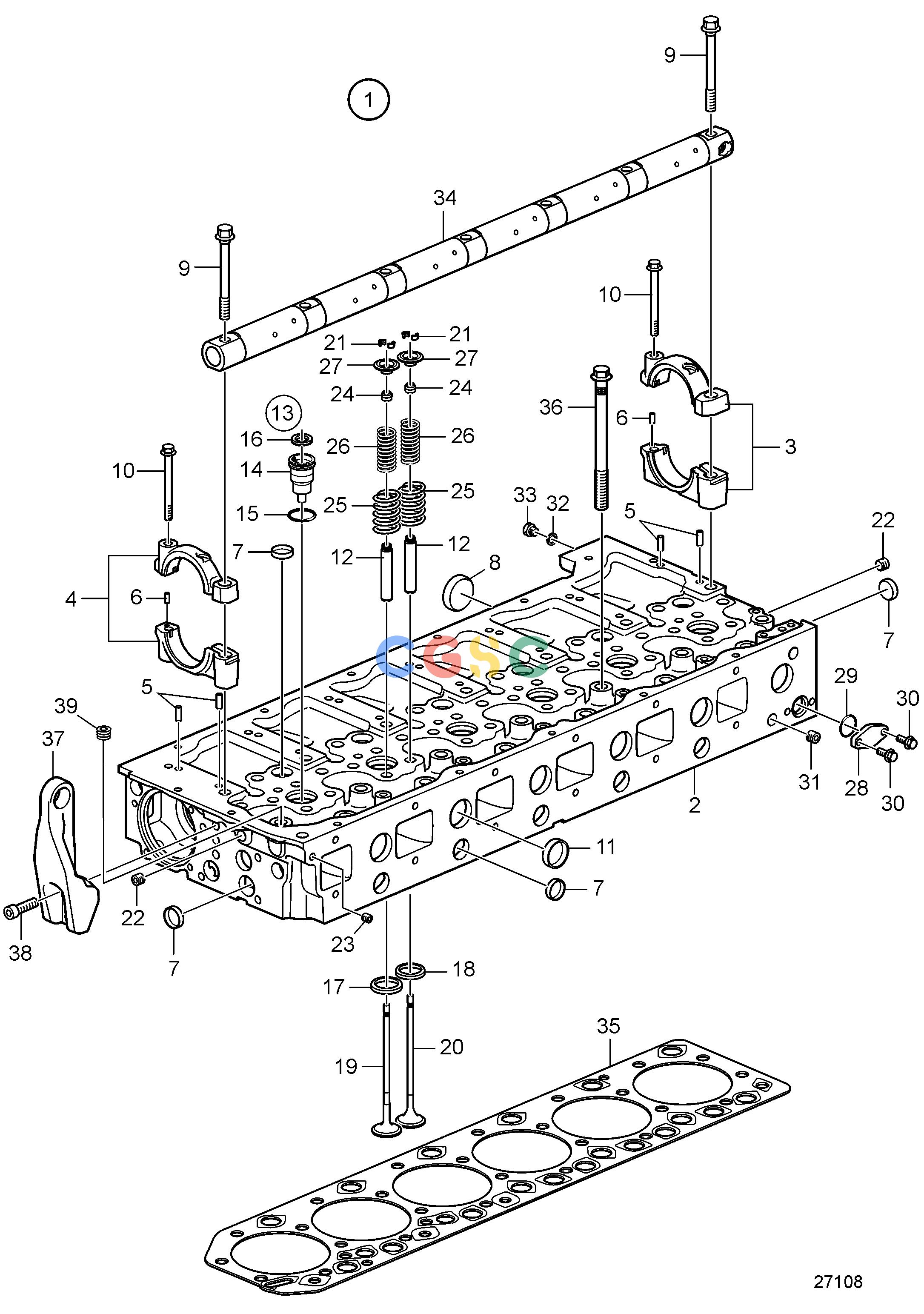

沃尔沃零件查询D11B3-A MP; D11B4-A MPEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
810 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801534
|
[1] |
Cylinder head, exch
|
|
| 1. |
22083487
|
[1] |
Cylinder head
|
|
| 2. |
|
|
|
|
| 3. |
21012752
|
[1] |
Bearing housing
|
|
| 4. |
3161079
|
[6] |
Bearing housing
|
|
| 5. |
422426
|
[4] |
Pin
|
|
| 6. |
950542
|
[2] |
Pin
|
|
| 7. |
24426721
|
[18] |
Expansion plug
|
|
| 8. |
24426723
|
[5] |
Expansion plug
|
|
| 9. |
20412482
|
[7] |
Flange screw
|
|
| 10. |
975105
|
[7] |
Flange screw
|
|
| 11. |
24426722
|
[11] |
Expansion plug
|
|
| 12. |
20905400
|
[24] |
Valve guide
|
|
| 13. |
21351717
|
[6] |
Injector sleeve, kit
|
|
| 14. |
20981856
|
[1] |
Sleeve
|
|
| 15. |
20536487
|
[1] |
O-ring
|
|
| 16. |
21261987
|
[1] |
Washer
|
|
| 17. |
20509465
|
[12] |
Valve seat, intake
|
|
| 18. |
20509467
|
[12] |
Valve seat, exhaust
|
|
| 19. |
20737856
|
[12] |
Inlet valve
|
|
| 20. |
3842972
|
[12] |
Exhaust valve
|
|
| 21. |
20510747
|
[48] |
Valve cotter
|
|
| 22. |
968062
|
[2] |
Plug
|
|
| 23. |
990828
|
[1] |
Plug
|
|
| 24. |
21990221
|
[24] |
Valve stem seal
|
|
| 25. |
21310068
|
[24] |
Valve spring
|
|
| 26. |
3183211
|
[24] |
Valve spring
|
|
| 27. |
20510743
|
[24] |
Valve spring washer
|
|
| 28. |
20451868
|
[1] |
Pipe flange
|
|
| 29. |
949658
|
[1] |
O-ring
|
|
| 30. |
984733
|
[1] |
Flange screw
|
|
| 31. |
968063
|
[1] |
Plug
|
|
| 32. |
18665
|
[1] |
Gasket
|
|
| 33. |
960628
|
[1] |
Plug
|
|
| 34. |
47706980_006
|
|
Rocker arm shaft
|
|
| 35. |
20495935
|
[1] |
Cylinder head gasket
|
|
| 36. |
21345131
|
[26] |
Flange screw
|
|
| 37. |
|
|
|
|
| 38. |
966789
|
[3] |
Hex. socket screw
|
|
| 39. |
968063
|
[1] |
Plug
|
|
