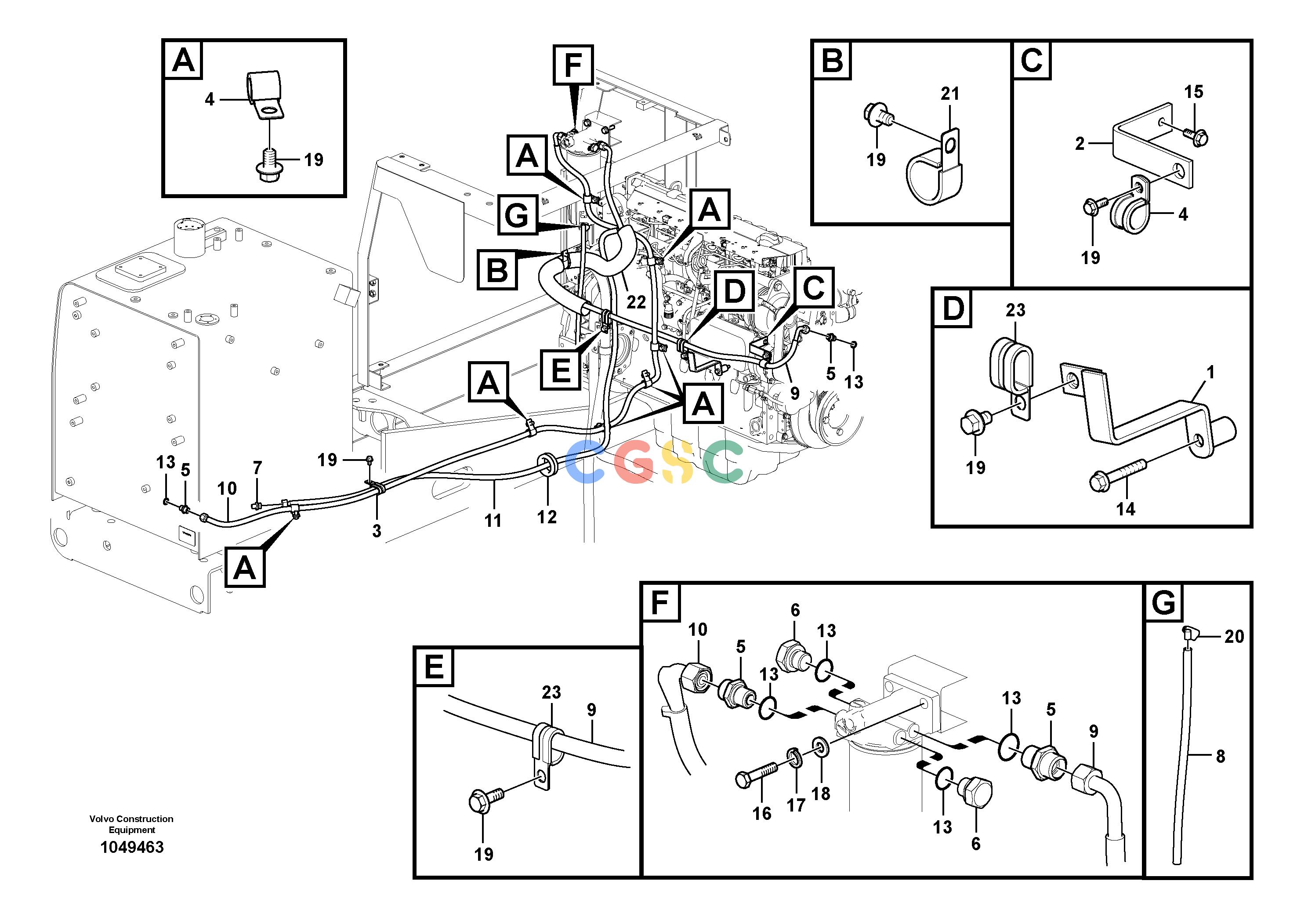

沃尔沃零件查询EC235C Fuel pipe - Fuel tankS/N 120001-1201068281873-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
474 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14567285
|
[1] |
Bracket
|
|
| 2. |
VOE14559144
|
[1] |
Bracket
|
|
| 3. |
VOE14532534
|
[0001] |
Clip
|
|
| 4. |
VOE14547764
|
[8] |
Clip
|
|
| 5. |
VOE14213266
|
[4] |
Fitting
|
|
| 6. |
SA9415-22051
|
[2] |
Plug
|
|
| 7. |
VOE14548445
|
[1] |
Nipple
|
|
| 8. |
SA9952-08011
|
[1] |
Hose
|
|
| 9. |
VOE14550929
|
[1] |
Fuel hose
|
|
| 10. |
VOE14550928
|
[1] |
Fuel hose
|
|
| 11. |
VOE14559218
|
[1] |
Fuel hose
|
|
| 12. |
SA9751-15016
|
[1] |
Grommet
|
|
| 13. |
VOE13947622
|
[6] |
Plane gasket
|
|
| 14. |
VOE13965179
|
[1] |
Screw
|
|
| 15. |
VOE946544
|
[1] |
Flange screw
|
|
| 16. |
VOE60113094
|
[2] |
Flange screw
|
|
| 17. |
VOE955922
|
[2] |
Spring washer
|
|
| 18. |
VOE992040
|
[2] |
Plain washer
|
|
| 19. |
VOE946471
|
[12] |
Flange screw
|
|
| 20. |
VOE943469
|
[1] |
Hose clamp
|
|
| 21. |
VOE14515523
|
[1] |
Clip
|
|
| 22. |
SA9443-30610
|
[1] |
Hose protection
|
|
| 23. |
VOE14512894
|
[2] |
Clamp
|
|
