纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.633[04]) - LANDFILL VERSION - OPTIONAL CODE 784297071 - VERSION (04) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
141 次

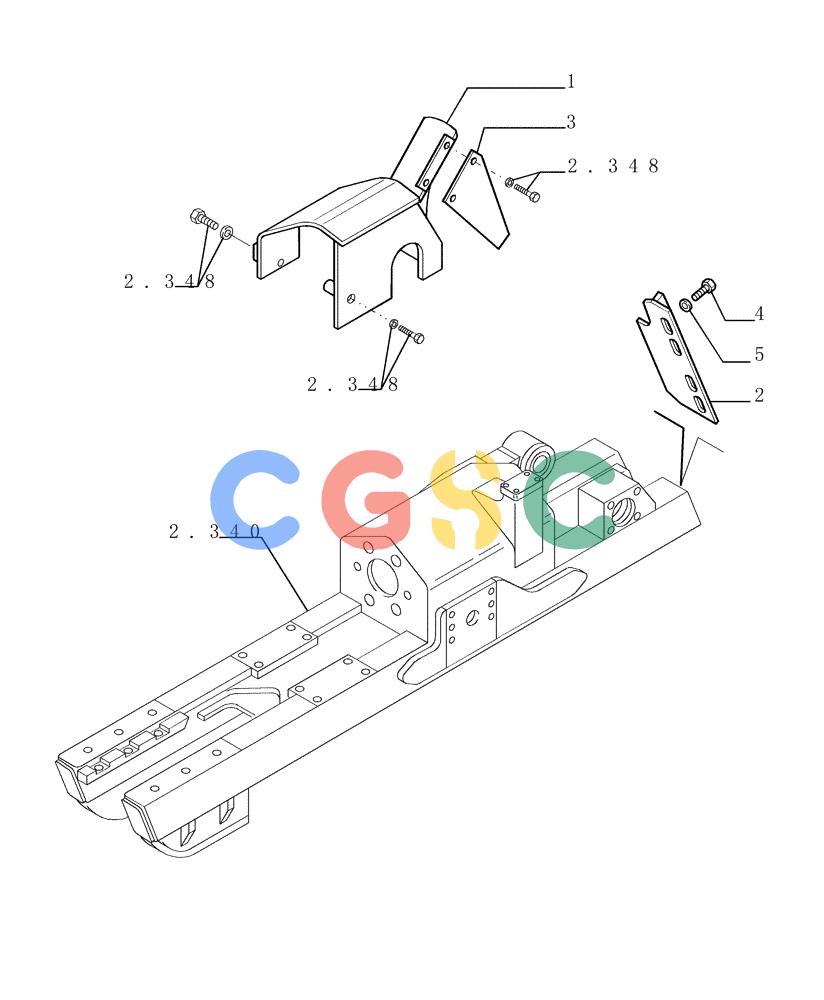

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76093973 | [1] | GUARD | LEC- LEFT |
| 1. | 76093974 | [1] | GUARD | LEC- RIGHT |
| 2. | 76093966 | [1] | PLATE | LEC- LEFT |
| 2. | 76093967 | [1] | PLATE | LEC- RIGHT |
| 3. | 76093971 | [2] | PLATE | LEC |
| 4. | 11118731 | [4] | BOLT,Hex, M16 x 45, 10.9 | LEC Superseded by part number: 86508624 |
| 5. | 14496931 | [4] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
