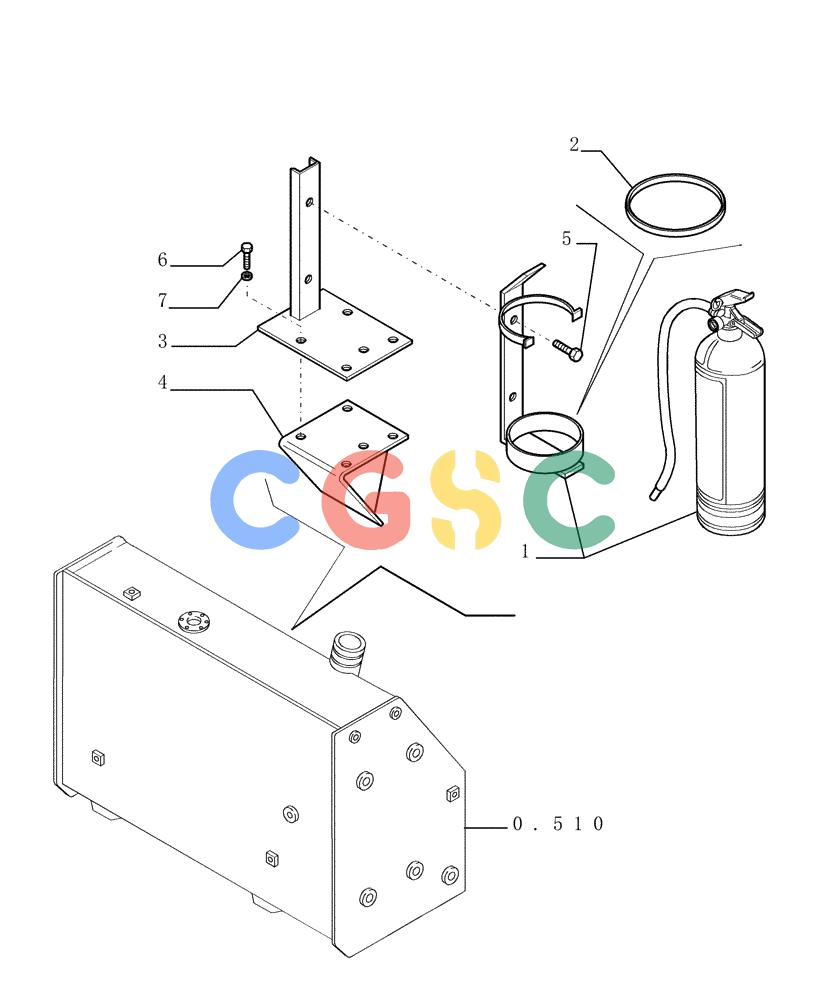

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.633[05]) - LANDFILL VERSION - OPTIONAL CODE 784297071 - VERSION (04) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
900 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76090504 | [1] | SUPPORT | LEC- ASSY 6 KG |
| 2. | 76090800 | [1] | DOOR SEAL | LEC Superseded by part number: 93201838 |
| 3. | 76090500 | [1] | SUPPORT | LEC |
| 4. | 76093997 | [1] | BRACKET | LEC |
| 5. | 13315217 | [3] | SCREW,M8 x 20mm | LECM8X20 |
| 6. | 16043431 | [4] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 7. | 10615679 | [4] | LOCK WASHER,Ext Tooth, M8 | BHB8 Superseded by part number: 10615671 |
| 8. | 76045702 | [1] | SECURING STRAP | LEC |
