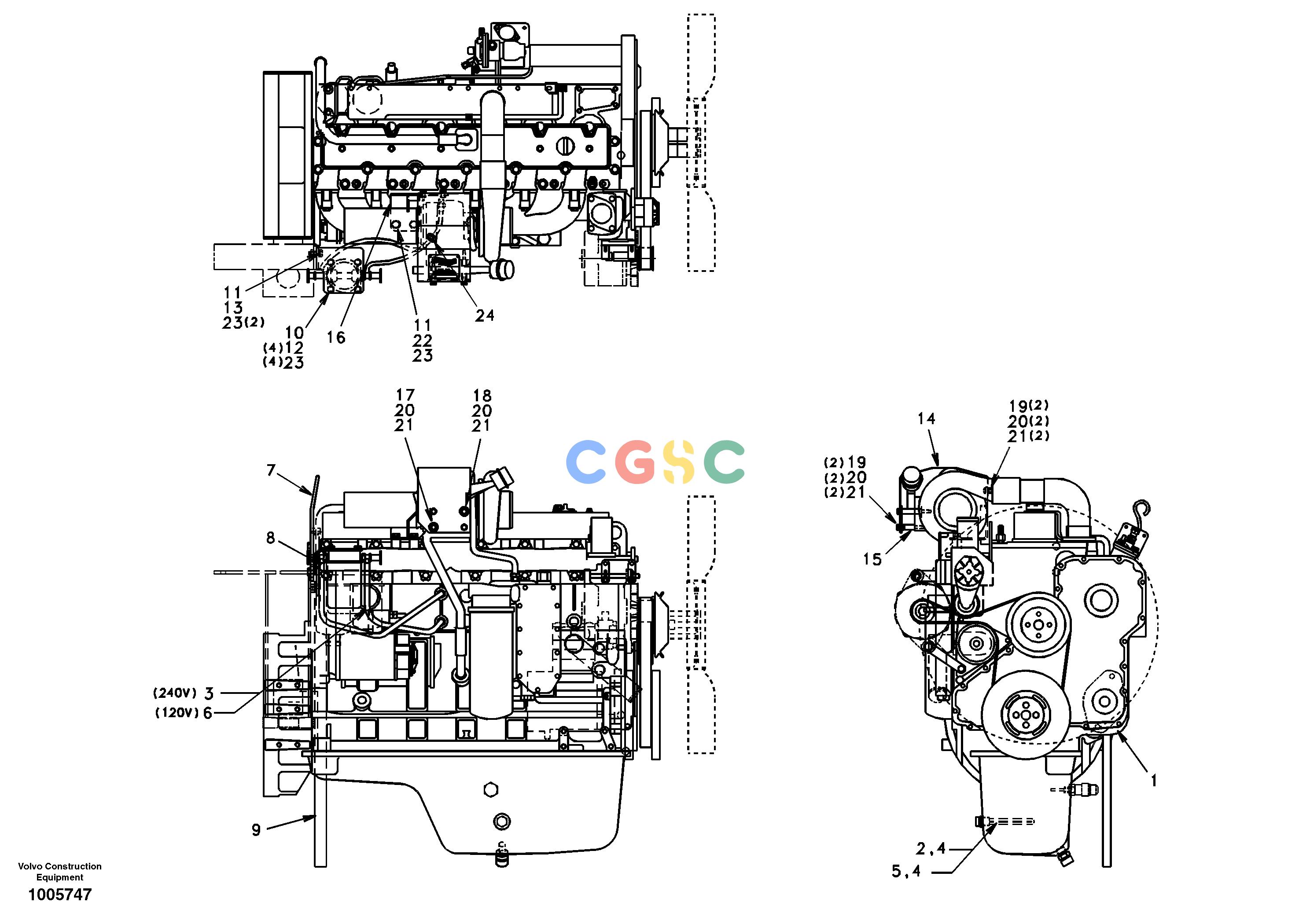

沃尔沃零件查询EC240 EngineNoneDE04B001-DE04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
183 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1111-00302
|
[1] |
Engine
|
TROPICAL
|
| |
SA1111-00052
|
|
Engine
|
STANDARD
|
| 2. |
SA2011-00450
|
|
Heater
|
240V
|
| 3. |
SA2011-00510
|
|
Heater
|
|
| 4. |
VOE13947627
|
|
Plane gasket
|
|
| 5. |
SA2011-00460
|
|
Heater
|
120V
|
| 6. |
SA2011-00520
|
|
Heater
|
|
| 7. |
SA1111-00561
|
|
Bracket
|
|
| 8. |
SA9312-10175
|
[1] |
Hose clamp
|
|
| 9. |
SA9952-26020
|
[1] |
Hose
|
|
| 10. |
SA1111-00171
|
[1] |
Bracket
|
SER NO 3001-3410
|
| |
SA14507205
|
[1] |
Bracket
|
SER NO 3411-
|
| 11. |
SA9011-11004
|
[1] |
Bolt
|
|
| 12. |
SA9081-11607
|
[4] |
Hexagon screw
|
SER NO 3001-3324
|
| 13. |
VOE983252
|
[1] |
Hexagon screw
|
|
| 14. |
SA1111-00360
|
|
Screen
|
|
| 15. |
SA1111-00370
|
|
Bracket
|
|
| 16. |
SA1111-00381
|
|
Bracket
|
|
| 17. |
VOE983249
|
|
Hexagon screw
|
|
| 18. |
VOE992558
|
|
Hexagon screw
|
|
| 19. |
SA9011-10803
|
|
Bolt
|
|
| 20. |
VOE993835
|
[6] |
Plain washer
|
SER NO 3001-3324
|
| |
VOE993835
|
|
Plain washer
|
SER NO 3001-
|
| 21. |
SA9213-08000
|
|
Spring washer
|
|
| 22. |
VOE992040
|
|
Plain washer
|
|
| 23. |
SA9213-10000
|
[2] |
Spring washer
|
SER NO 3325-
|
| |
SA9213-10000
|
|
Spring washer
|
SER NO 3001-3324
|
| |
SA9213-10000
|
|
Spring washer
|
SER NO 3325-
|
| |
SA9213-10000
|
|
Spring washer
|
|
| 24. |
SA9314-02100
|
[2] |
Cable tie
|
SER NO 3325-
|
