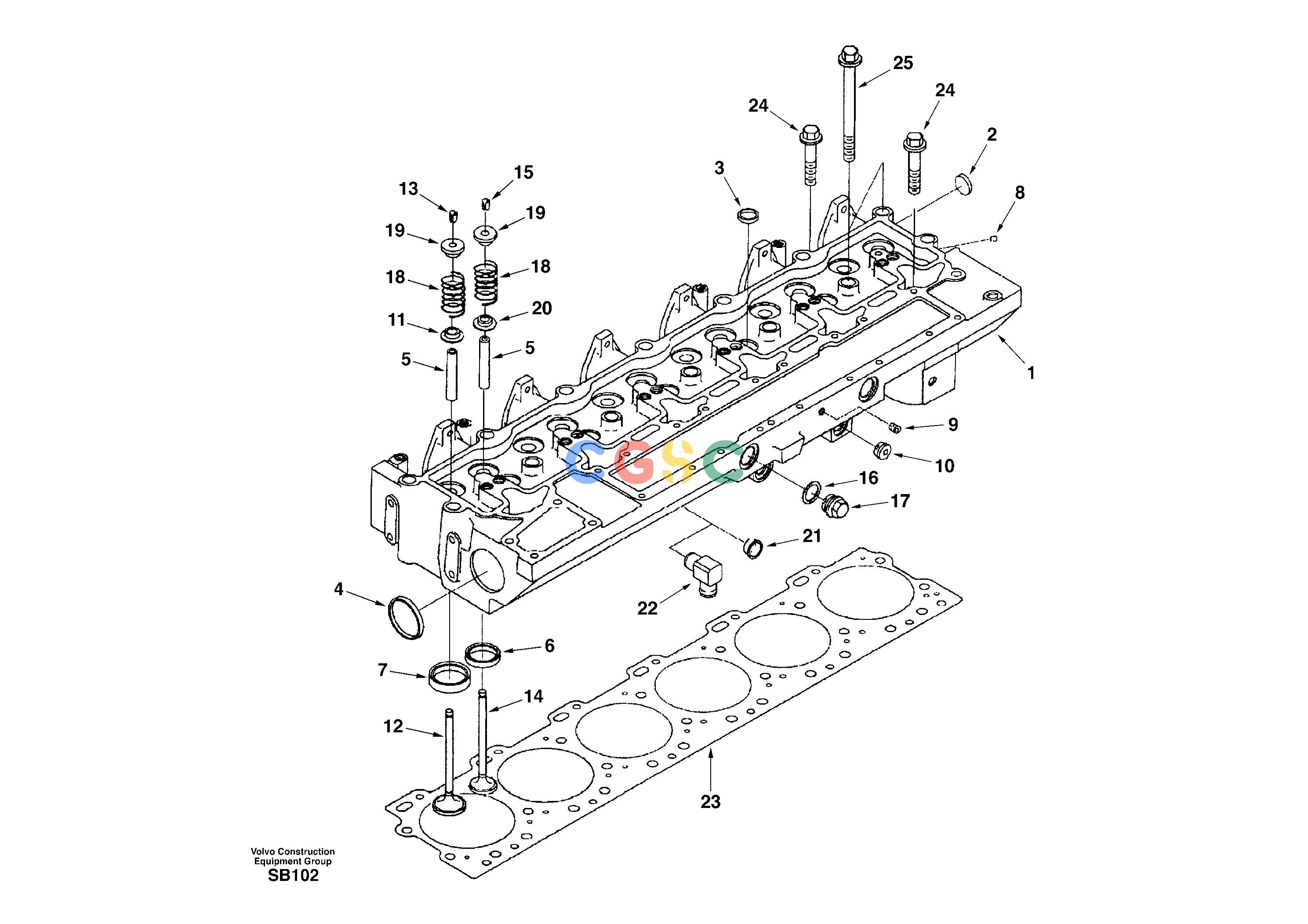

沃尔沃零件查询EC240 Cylinder headNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
699 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3802465
|
[1] |
Head
|
|
| 2. |
SA3920443
|
[1] |
Plug
|
|
| 3. |
SA3032693
|
[5] |
Plug
|
|
| 4. |
SA3922072
|
[2] |
Plug
|
|
| 5. |
SA3925863
|
[12] |
Guide
|
|
| 6. |
SA3928174
|
[6] |
Valve
|
EXHAUST
|
| 7. |
SA3924582
|
[6] |
Insert
|
INLET
|
| 8. |
SA3008464
|
[1] |
Plug
|
|
| 9. |
SA3008466
|
[1] |
Plug
|
|
| 10. |
SA3008468
|
[1] |
Tube plug
|
|
| 11. |
SA3915707
|
[6] |
Seal
|
INLET
|
| 12. |
SA3802463
|
[6] |
Valve
|
|
| |
SA3924492
|
[6] |
Valve
|
|
| 13. |
SA3901177
|
[12] |
Collet
|
|
| 14. |
SA3802085
|
[6] |
Valve
|
|
| |
SA3921444
|
[6] |
Valve
|
|
| 15. |
SA3901177
|
[12] |
Collet
|
|
| 16. |
VOE11716074
|
[2] |
Washer
|
|
| 17. |
SA3924148
|
[2] |
Plug
|
|
| 18. |
SA3906412
|
[12] |
Spring
|
INLET,EXHAUST
|
| 19. |
SA3912976
|
[12] |
Retainer
|
|
| 20. |
SA3919038
|
[6] |
Seal
|
|
| 21. |
SA3912900
|
[1] |
Plug
|
|
| 22. |
SA3924138
|
[1] |
Clutch
|
|
| 23. |
SA3938267
|
[1] |
Gasket
|
|
| |
SA3928180
|
[1] |
Gasket
|
0.25MM OS
|
| |
SA3928181
|
[1] |
Gasket
|
0.50MM OS
|
| 24. |
SA3917729
|
[12] |
Cylinder bolt
|
|
| 25. |
SA3917728
|
[14] |
Bolt
|
|
