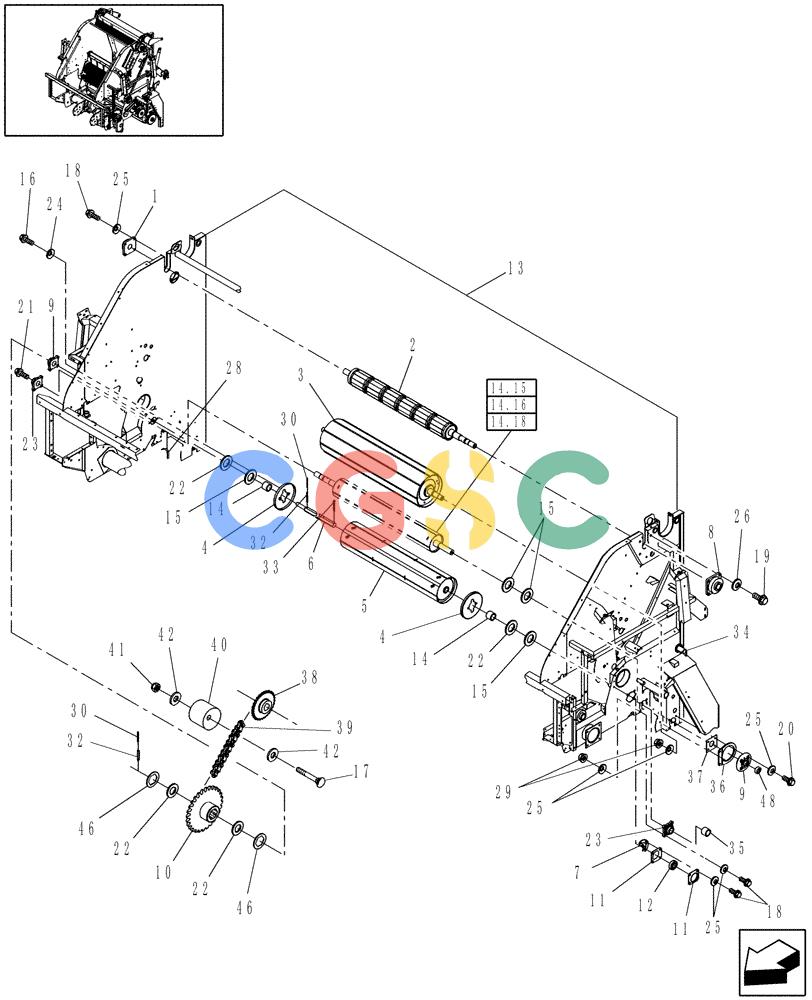

| 1. |
86609558
|
[1] |
BEARING ASSY,45mm ID
|
NH
1.772" ID
|
| 2. |
86635441
|
[1] |
ROLL
|
PA
Drive, Keyed to YAN 43708
|
| 2. |
87027869
|
[1] |
ROLLER
|
PA
Drive, Splined YAN, Start Serial: 47309 Superseded by part number: 84496217
|
| 3. |
87398372
|
[1] |
ROLLER ASSY.,304.5mm OD x 1293mm L
|
PA
Floor, Includes: Square Rods
|
| 4. |
87602845
|
[2] |
SHIELD
|
PA
Trash
|
| 4. |
84388614
|
[2] |
SHIELD
|
PLO
Trash
|
| 5. |
87660302
|
[1] |
ROLL
|
NH
Fixed Dimple Superseded by part number: 84388620, 84388620, 84407607
|
| 5. |
84388620
|
[1] |
ROLL
|
PLO
Rib Superseded by part number: 84466744
|
| 6. |
87056540
|
[1] |
SHAFT
|
PA
|
| 7. |
87646213
|
[2] |
ADAPTER
|
NH
|
| 8. |
86590752
|
[1] |
BEARING ASSY
|
NH
1.969" ID Superseded by part number: 87660333
|
| 9. |
87027838
|
[2] |
BEARING ASSY
|
PA
40mm ID, Round
|
| 10. |
87660324
|
[1] |
SPROCKET
|
NH
15T, RC80
|
| 11. |
86837676
|
[4] |
FLANGED BEARING
|
PA
Superseded by part number: 86979948
|
| 12. |
286909
|
[2] |
BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W
|
NH
1-1/2" Hex Bore Superseded by part number: 47577178
|
| 13. |
87630650
|
[1] |
FRAME
|
NH
Main, North America, Red, Twine
|
| 13. |
87630652
|
[1] |
FRAME
|
NH
Main, North America, Red, Twine/Net
|
| 13. |
87630651
|
[1] |
FRAME
|
NH
Main, Europe & R.O.W., Dk. Gray, Twine
|
| 13. |
87630653
|
[1] |
FRAME
|
NH
Main, Europe & R.O.W., Dk. Gray, Twine/Net
|
| 14. |
86622263
|
[2] |
HUB
|
NH
Superseded by part number: 87660304
|
| 15. |
86619043
|
[1] |
WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk
|
NH
Plated
|
| 16. |
43138
|
[4] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 17. |
338263
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8
|
ZED
|
| 18. |
300389
|
[22] |
BOLT,M12 x 1.75 x 35mm, Cl 8.8
|
NH
Superseded by part number: 628-12035
|
| 19. |
43168
|
[4] |
BOLT,Hex, M16 x 40mm, Cl 8.8
|
NH
Superseded by part number: 86509867
|
| 20. |
9671487
|
[8] |
BOLT,Hex, M12 x 50mm, Cl 8.8
|
PA
|
| 21. |
86629541
|
[2] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 22. |
58821
|
[1] |
WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk
|
NH
.060" Thk
|
| 23. |
86610638
|
[2] |
BEARING ASSY,45mm ID
|
NH
1.772" ID
|
| 24. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 25. |
140046
|
[32] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 26. |
140048
|
[4] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 27. |
87056525
|
[2] |
WASHER
|
PA
|
| 28. |
86976003
|
[1] |
SPACER
|
PA
Superseded by part number: 87660303
|
| 29. |
86512497
|
[4] |
FLANGE NUT,M12 x 1.75, Cl 10
|
NH
|
| 30. |
84024216
|
[1] |
LOCK PIN,5mm OD x 50mm L, Slotted
|
PLO
|
| 32. |
412689
|
[1] |
LOCK PIN,8mm OD x 50mm L, Slotted
|
NH
|
| 33. |
87400
|
[1] |
COTTER PIN,3/16" x 2"
|
WIN
|
| 34. |
86636753
|
[1] |
PIN
|
NH
Tailgate Latch Pivot
|
| 36. |
86602047
|
[2] |
PIVOT PLATE
|
NH
Superseded by part number: 87660305
|
| 37. |
86602143
|
[2] |
WEAR PLATE
|
NH
|
| 38. |
87660325
|
[1] |
SPROCKET,15T
|
NH
|
| 39. |
87627269
|
[1] |
CHAIN (AG),80, 38 Links x 25.4mm = 965.2mm
|
NH
|
| 40. |
86514717
|
[1] |
IDLER WHEEL
|
NH
|
| 41. |
100038
|
[1] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 42. |
29684
|
[2] |
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
|
NH
|
| 48. |
87384472
|
[2] |
COLLAR
|
PA
Superseded by part number: 563733
|
