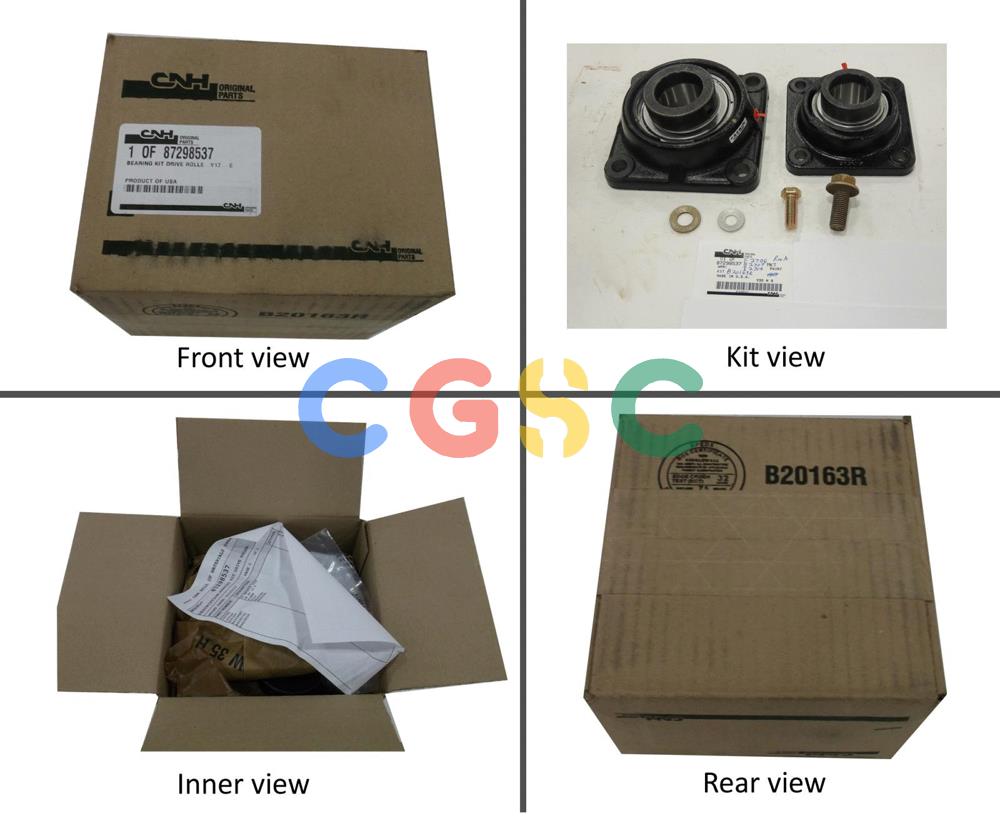

凯斯零件查询(RB464) - CASE IH ROUND BALER (7/07-1/14) (14.11[(3)]) - KIT BEARING DRIVE ROLLER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
539 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87298537
|
[1] |
KIT
|
MKT
Incl 2 - 7
|
| 2. |
140046
|
[4] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 3. |
140048
|
[4] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 4. |
628-12035
|
[4] |
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
|
CAS
|
| 5. |
86509867
|
[4] |
BOLT,Hex Flg, M16 x 40mm
|
WIN
|
| 6. |
86590752
|
[1] |
BEARING ASSY
|
NH
Superseded by part number: 87660333
|
| 7. |
86609558
|
[1] |
BEARING ASSY,45mm ID
|
NH
|
