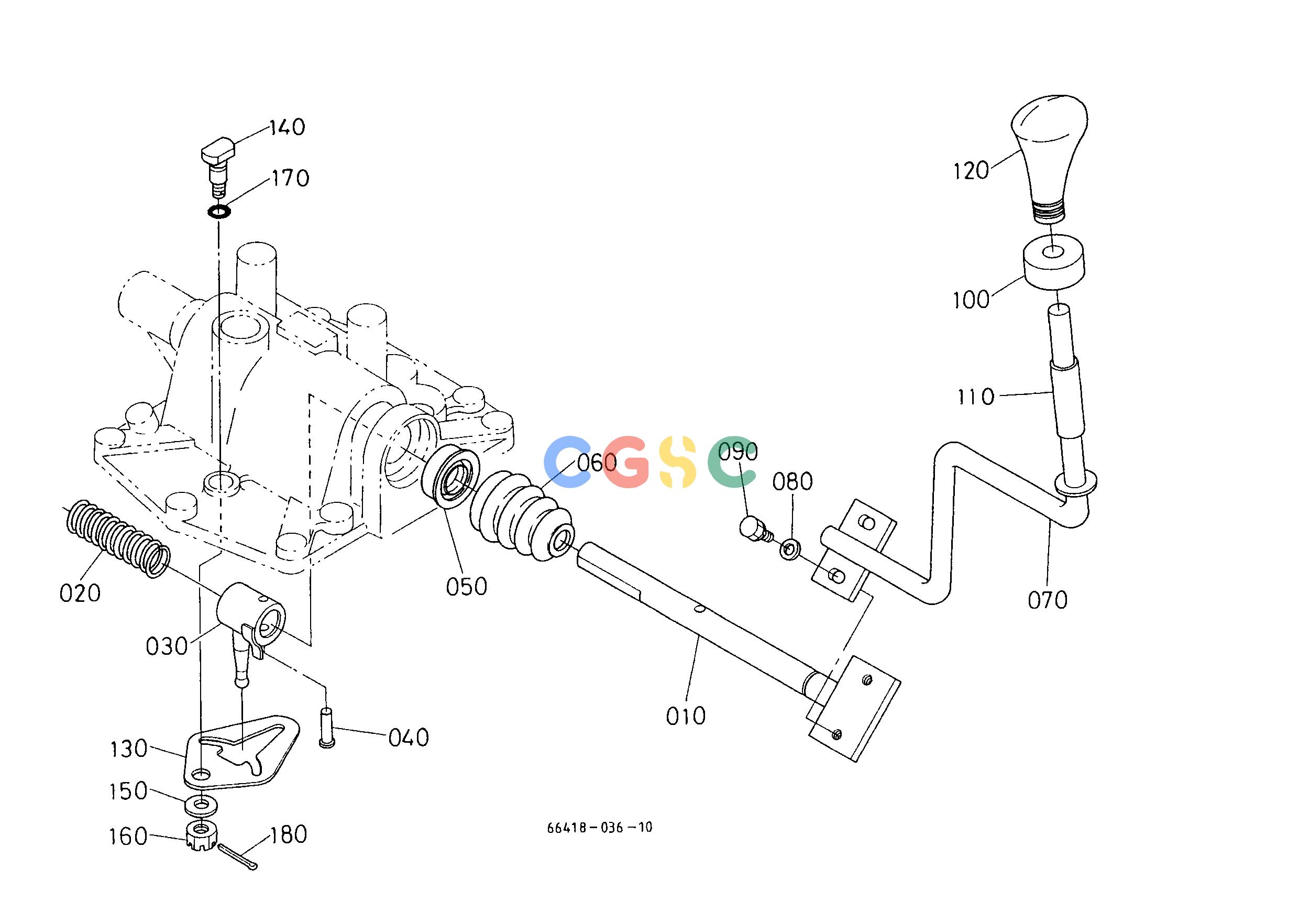

久保田零件查询T06400 MAIN GEAR SHAFT LEVER MAIN SP-CHANGE LEVEREPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
160 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6781718210
|
[1] |
SHAFT SHIFT
|
1.3200(lbs); 0.600
|
| 020. |
6715618220
|
[1] |
SPRING
|
0.0242(lbs); 0.011
|
| 030. |
6715618253
|
[1] |
ARM SHIFT
|
0.2750(lbs); 0.125
|
| 040. |
6715618280
|
[1] |
PIN JOINT
|
0.0022(lbs); 0.001
|
| 050. |
6781718220
|
[1] |
SEAL OIL
|
0.0440(lbs); 0.020
|
| 060. |
6781718230
|
[1] |
BOOT
|
0.0374(lbs); 0.017
|
| 070. |
6781718170
|
[1] |
LEVER MAIN SHIFT
|
1.3200(lbs); 0.600
|
| 080. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 090. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 100. |
6781718180
|
[1] |
CUSHION
|
0.0660(lbs); 0.030
|
| 110. |
3139124510
|
[1] |
PIPE LEVER
|
0.0110(lbs); 0.005
|
| 120. |
6715618330
|
[1] |
GRIP
|
0.1760(lbs); 0.080
|
| 130. |
6717618360
|
[1] |
INTERLOCKER
|
0.2200(lbs); 0.100
|
| 140. |
6659118450
|
[1] |
BOLT INTERLOCKER SET
|
0.0528(lbs); 0.024
|
| 150. |
0401150100
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 160. |
0237250100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 170. |
0481110100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 180. |
0551150218
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
