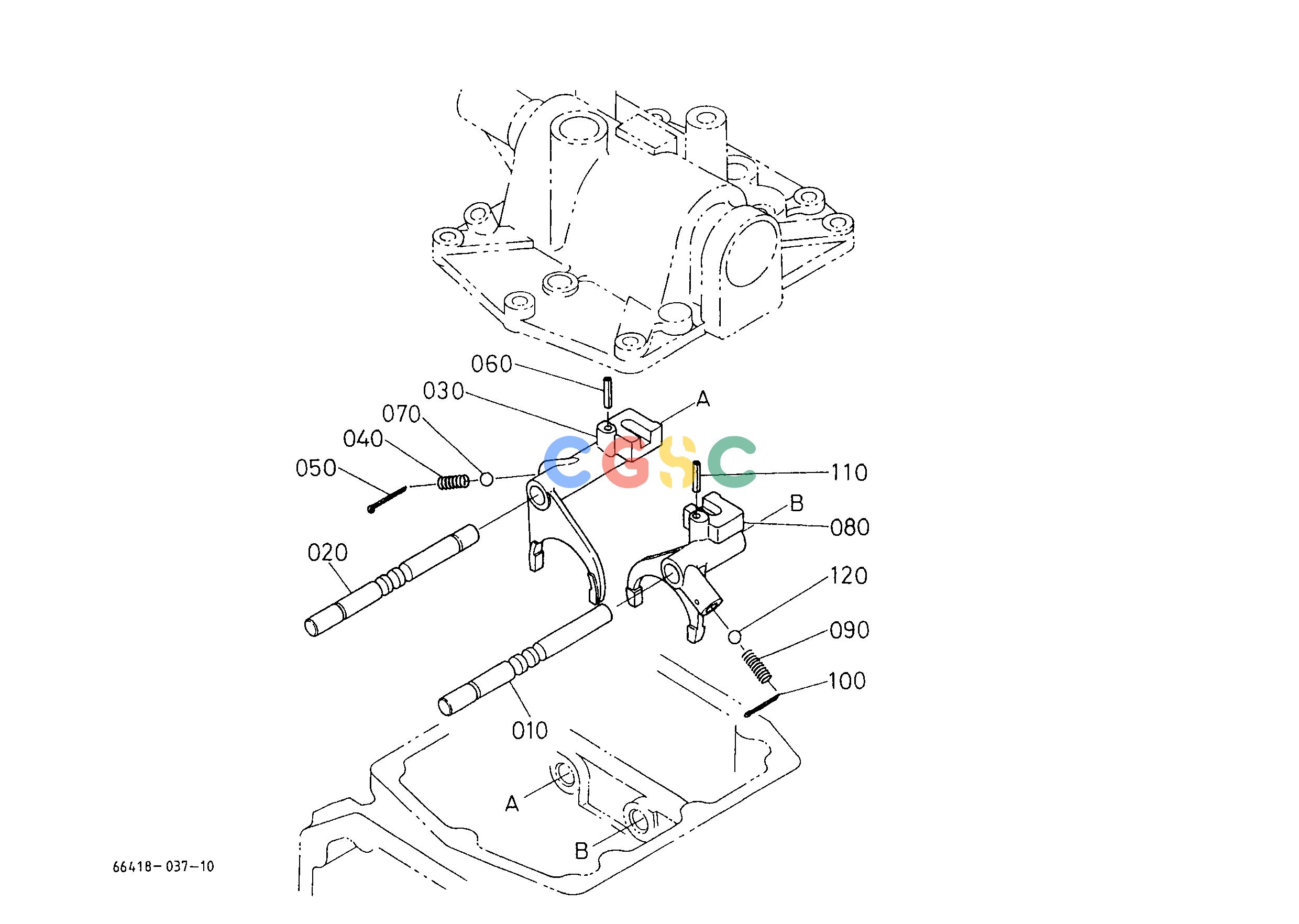

久保田零件查询T06500 MAIN GEAR SHAFT FORK MAIN SP-CHANGE LEVEREPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6717618110
|
[1] |
SHAFT FORK
|
0.3960(lbs); 0.180
|
| 020. |
6781718110
|
[1] |
SHAFT FORK
|
0.3740(lbs); 0.170
|
| 030. |
6717618130
|
[1] |
FORK BACK SHIFT
|
0.8800(lbs); 0.400
|
| 040. |
6715618150
|
[1] |
SPRING SHIFT FORK
|
0.0066(lbs); 0.003
|
| 050. |
0551150322
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 060. |
0541100520
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 070. |
0771500803
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 080. |
6717618160
|
[1] |
FORK MAIN SHIFT
|
0.3300(lbs); 0.150
|
| 090. |
6715618150
|
[1] |
SPRING SHIFT FORK
|
0.0066(lbs); 0.003
|
| 090. |
3660229230
|
[1] |
SPRING STOPPER
|
0.0066(lbs); 0.003
|
| 100. |
0551150322
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 110. |
0541100520
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 120. |
0771500803
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
