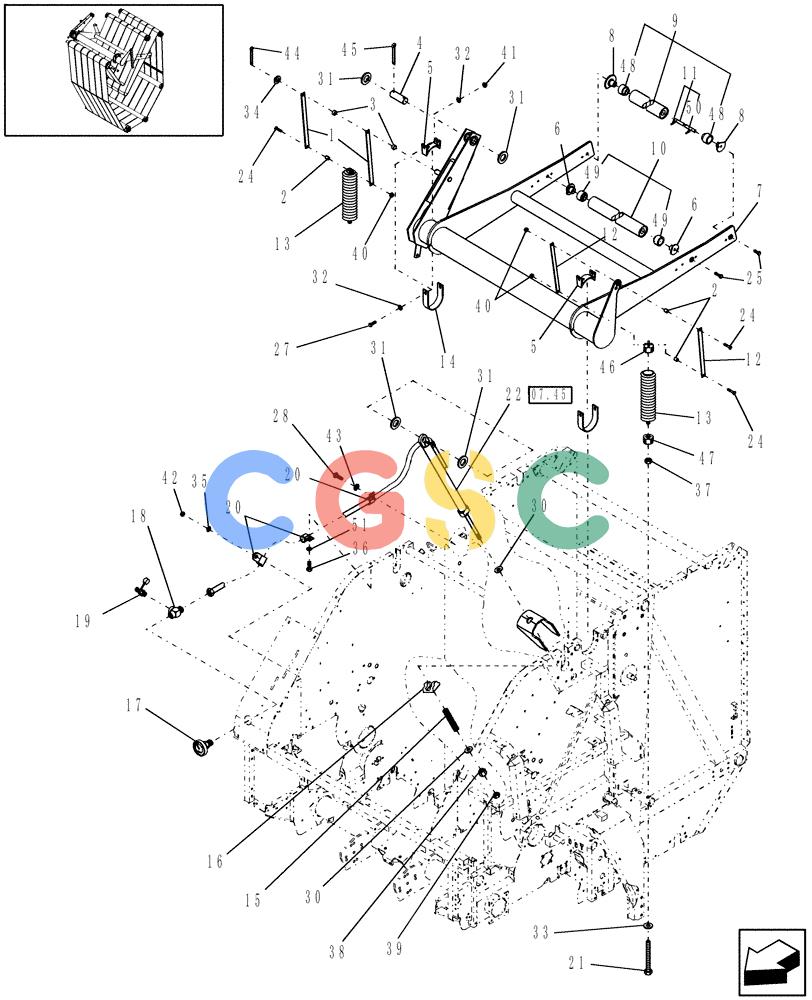

| 1. |
86637229
|
[2] |
LINK,489mm L
|
NH
|
| 2. |
86636659
|
[3] |
SPACER,10.28mm ID x 15.85mm OD x 21.84mm L
|
NH
.86", Heat Treated
|
| 3. |
32406
|
[2] |
SPACER,25.9mm ID x 31.5mm OD x 16.8mm L
|
NH
.66" L
|
| 4. |
86637228
|
[1] |
PIN,38.1mm OD x 91.5mm L
|
NH
|
| 5. |
86636552
|
[2] |
BEARING CAP
|
NH
|
| 6. |
86516321
|
[2] |
SUPPORT
|
NH
Superseded by part number: 87654791
|
| 7. |
87644300
|
[1] |
ARM
|
BEL
Take-Up
|
| 8. |
86516322
|
[2] |
SUPPORT
|
NH
Superseded by part number: 87654792
|
| 9. |
86500663
|
[1] |
ROLLER,114.3mm OD x 1145mm L
|
NH
Rear Serpentine Superseded by part number: 84601406
|
| 10. |
9842288
|
[1] |
ROLLER,88.9mm OD x 1142mm L
|
NH
Front Serpentine Superseded by part number: 84356720
|
| 11. |
9823372
|
[1] |
SHAFT,1135mm L
|
NH
|
| 12. |
86978164
|
[2] |
LINK,520mm L
|
NH
|
| 13. |
621339
|
[2] |
SPRING
|
NH
Use W/ Ref. 46 & 47
|
| 14. |
9617265
|
[2] |
BAND
|
NH
|
| 15. |
9846489
|
[1] |
SPRING,Compression, 1.81" OD x 9.44" L
|
NH
|
| 16. |
226131
|
[1] |
PIVOT
|
NH
Superseded by part number: 87654703
|
| 17. |
857072
|
[1] |
GAUGE
|
NH
3,000 PSI, Bale Density
|
| 18. |
86627339
|
[1] |
HYD CONNECTOR
|
NH
-04, Female, NPTF Superseded by part number: 87016920
|
| 19. |
9845229
|
[1] |
COUPLING
|
NH
Male
|
| 20. |
515-23127
|
[4] |
CLAMP,1/2", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86010402
|
| 21. |
633038
|
[2] |
THREADED ROD,3/4" - 10 x 11-1/2" L
|
NH
|
| 22. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Bale Tension Hydraulics
|
| 24. |
844-10050
|
[3] |
BOLT,Hvy Hex, M10 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 16587625
|
| 25. |
86627635
|
[4] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9
|
NH
Cap, HH, CL 8.8 P M12 x 30, 6.5 Head Height
|
| 27. |
614-12040
|
[4] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| 28. |
381014
|
[2] |
SCREW,Flng, M8 x 16mm
|
NH
HWH, M8 x 1.25 x 16
|
| 30. |
257163
|
[2] |
WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk
|
NH
Hardened, .164" Thk
|
| 31. |
28581
|
[4] |
WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk
|
NH
1-17/32" ID x 2-3/8" OD Superseded by part number: 86611730
|
| 32. |
495-11053
|
[8] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| 33. |
495-21081
|
[2] |
WASHER,3/4"
|
CAS
Superseded by part number: 86511191
|
| 34. |
495-11106
|
[1] |
WASHER,1", SAE
|
CAS
Superseded by part number: 87367
|
| 35. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 36. |
844-6020
|
[1] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
| 37. |
280954
|
[2] |
NUT,3/4"-10, G5
|
NH
|
| 38. |
9849647
|
[1] |
NUT,7/8"-9, G5
|
NH
|
| 39. |
87314
|
[1] |
JAM NUT,Jam, 7/8"-9, G2
|
NH
|
| 40. |
832-46410
|
[3] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 41. |
832-46412
|
[4] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| 42. |
825-2406
|
[1] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 43. |
495-21038
|
[2] |
WASHER,5/16"
|
CAS
Superseded by part number: 80664, 72187263
|
| 44. |
80754
|
[1] |
COTTER PIN,3/16" OD x 1-1/2" OAL
|
NH
|
| 45. |
432-1232
|
[2] |
COTTER PIN,3/16" OD x 2" L
|
CAS
Superseded by part number: 87400
|
| 46. |
854482
|
[2] |
SPRING NUT
|
NH
Spring, Use W/ Ref. 13
|
| 47. |
143672
|
[2] |
SPRING NUT
|
NH
Spring, Use W/ Ref. 13
|
| 48. |
86500662
|
[2] |
BEARING ASSY
|
NH
|
| 49. |
8050825
|
[2] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
Superseded by part number: F82059
|
| 50. |
838-5526
|
[1] |
LOCK PIN,M5 x 26, Slotted
|
CAS
Superseded by part number: 82848074, 130045
|
| 51. |
322358
|
[1] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
